UGC DOR5967628
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.40 CAD - $4.40 CAD
$4.40 CAD
$4.40 CAD - $4.40 CAD
$4.40 CAD

Vendu en lots de : 10

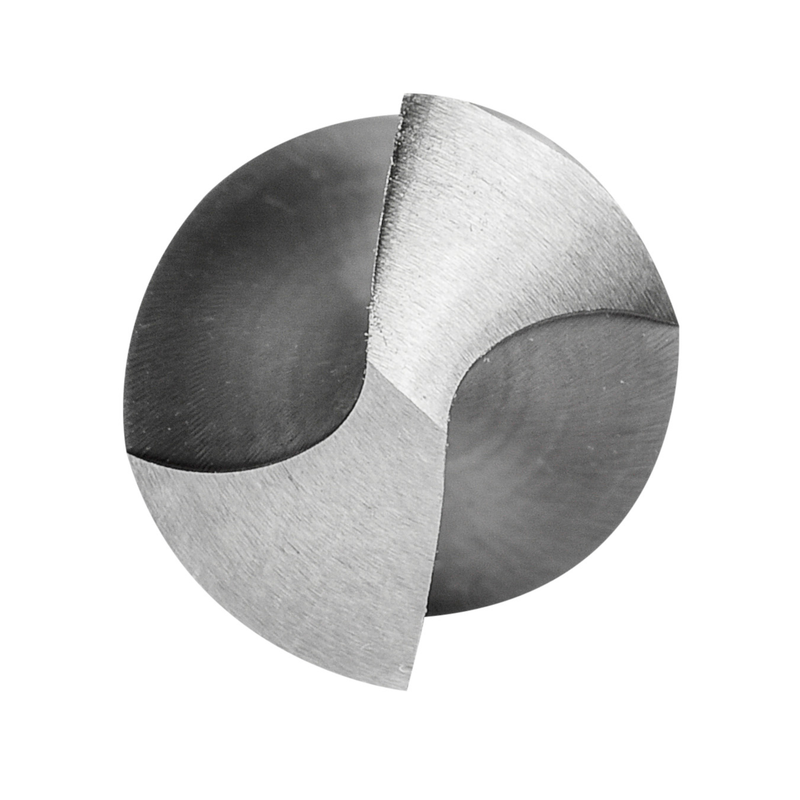

Foret court avec queue cylindrique, diamètre 0,6 mm, longueur totale 24 mm et longueur de goujure 7 mm selon la norme DIN 338, avec un angle de pointe de 118°, en HSS avec finition brillante pour le perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A100.6
GradeLumineux
Product Number5967628
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.0236"
Cutting Diameter — mm (DC)0.6 mm
Overall Length — in (OAL)0.9449"
Overall Length — mm (OAL)24.0 mm
Flute Length — in (LCF)0.2756"
Flute Length — mm (LCF)7.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0236"
Connection Dia. — mm (DCON)0.6 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number168
EAN7320760000168
File Type Download
A100.6 — 3D Model STP Download
A100.6 — Line Drawing PDF Download
