A100.65
A100.65
A100.65
A100.65

A100.65

UGC DOR5967633
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.24 CAD - $4.24 CAD
$4.24 CAD
$4.24 CAD - $4.24 CAD
$4.24 CAD

Vendu en lots de : 10

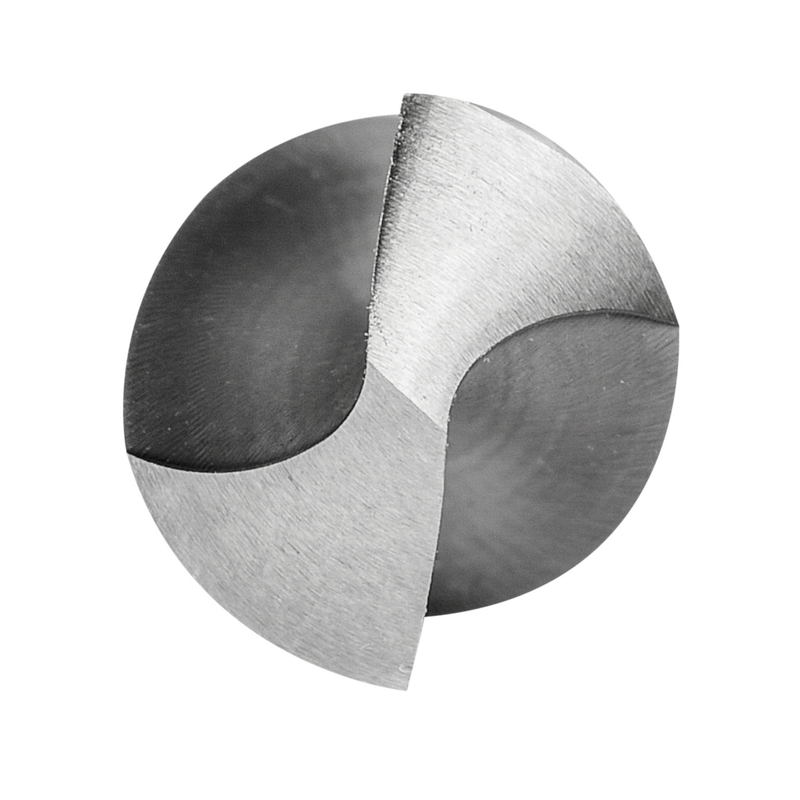

Forets courts à queue cylindrique, diamètre 0,65 mm, longueur totale 26 mm et longueur de coupe 8 mm selon la norme DIN 338, angle de pointe 118°, HSS finition brillante pour le perçage de 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A100.65
GradeLumineux
Product Number5967633
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.0256"
Cutting Diameter — mm (DC)0.65 mm
Overall Length — in (OAL)1.0236"
Overall Length — mm (OAL)26.0 mm
Flute Length — in (LCF)0.315"
Flute Length — mm (LCF)8.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0256"
Connection Dia. — mm (DCON)0.65 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number182
EAN7320760000182
File Type Download
A100.65 — 3D Model STP Download
A100.65 — Line Drawing PDF Download
