A100.78
A100.78
A100.78
A100.78

A100.78

UGC DOR5967643
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5.79 CAD - $5.79 CAD
$5.79 CAD
$5.79 CAD - $5.79 CAD
$5.79 CAD

Vendu en lots de : 10

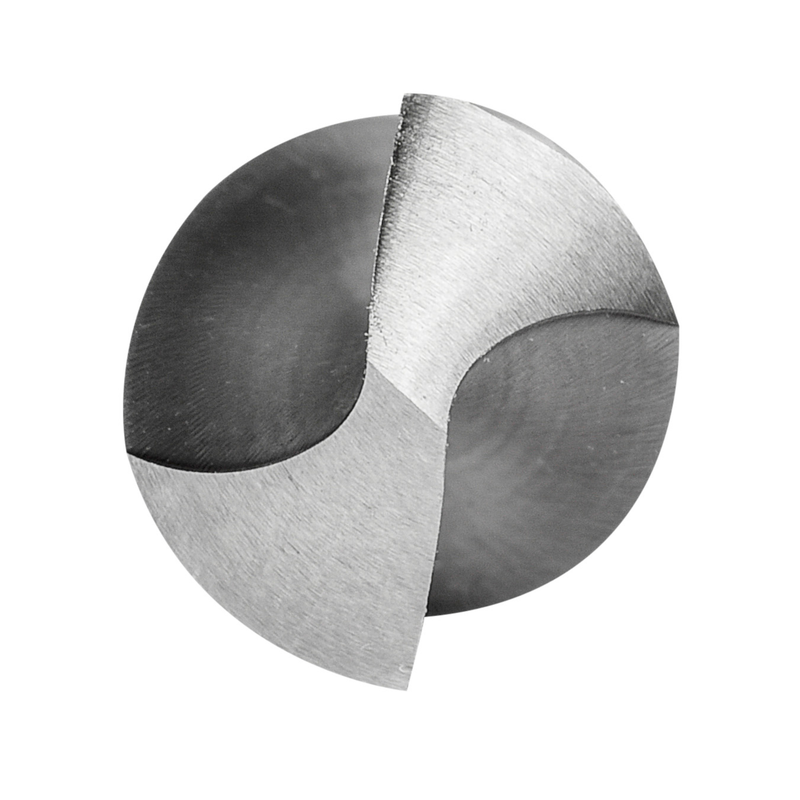

Foret de longueur jobber avec queue cylindrique, diamètre 0,78 mm avec une longueur totale de 30 mm et une longueur de coupe de 10 mm selon la norme DIN 338 avec un angle de pointe de 118°, HSS avec finition brillante pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A100.78
GradeLumineux
Product Number5967643
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.0307"
Cutting Diameter — mm (DC)0.78 mm
Overall Length — in (OAL)1.1811"
Overall Length — mm (OAL)30.0 mm
Flute Length — in (LCF)0.3937"
Flute Length — mm (LCF)10.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0307"
Connection Dia. — mm (DCON)0.78 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number236
EAN7320760000236
File Type Download
A100.78 — 3D Model STP Download
A100.78 — Line Drawing PDF Download
