A100.85
A100.85
A100.85
A100.85

A100.85

UGC DOR5967651
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.63 CAD - $3.63 CAD
$3.63 CAD
$3.63 CAD - $3.63 CAD
$3.63 CAD

Vendu en lots de : 10

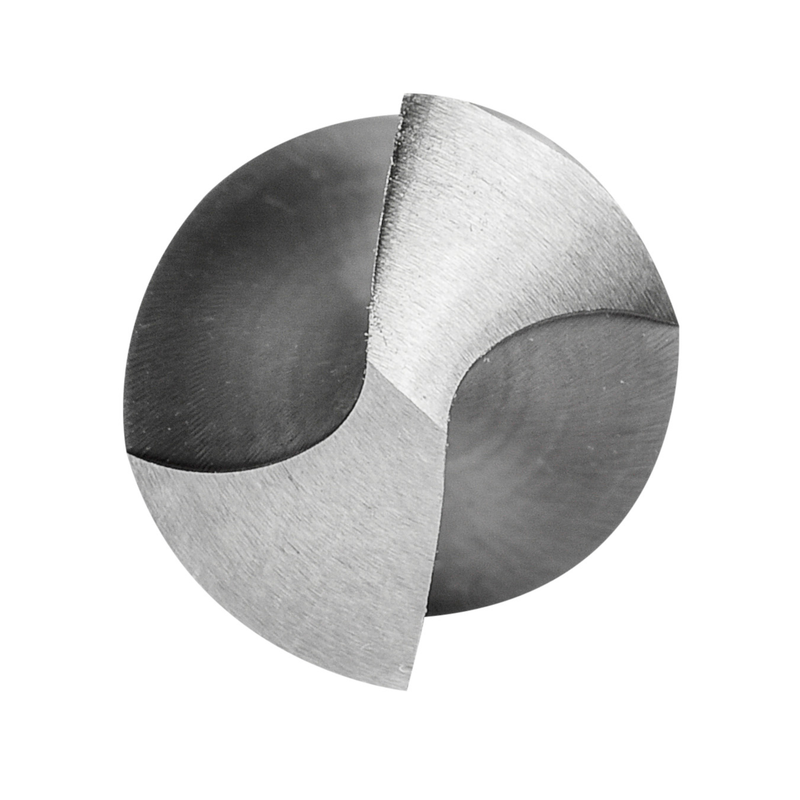

Forets courts à queue cylindrique, diamètre 0,85 mm, longueur totale de 30 mm et longueur de coupe de 10 mm selon la norme DIN 338 avec un angle de pointe de 118°, en HSS avec finition brillante pour le perçage en 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A100.85
GradeLumineux
Product Number5967651
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.0335"
Cutting Diameter — mm (DC)0.85 mm
Overall Length — in (OAL)1.1811"
Overall Length — mm (OAL)30.0 mm
Flute Length — in (LCF)0.3937"
Flute Length — mm (LCF)10.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0335"
Connection Dia. — mm (DCON)0.85 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number267
EAN7320760000267
File Type Download
A100.85 — 3D Model STP Download
A100.85 — Line Drawing PDF Download
