UGC DOR5967655
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.51 CAD - $3.51 CAD
$3.51 CAD
$3.51 CAD - $3.51 CAD
$3.51 CAD

Vendu en lots de : 10

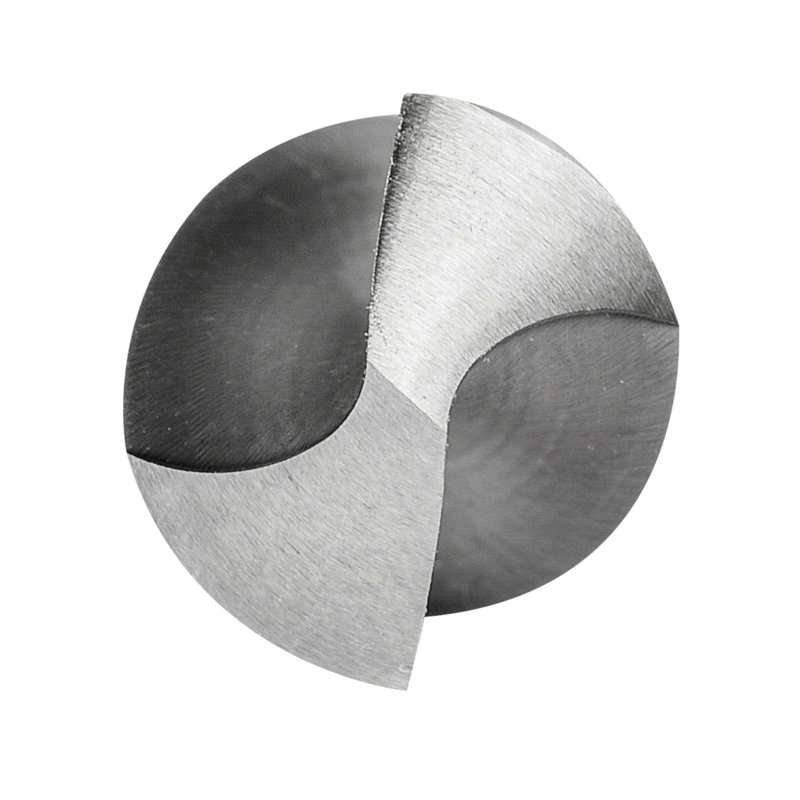

Foret hélicoïdal à queue cylindrique longueur normale, diamètre 0,9mm, longueur totale 32mm et longueur utile 11mm selon la norme DIN 338, avec un angle de pointe de 118°, en HSS finition brillante pour des perçages 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI)A100,9
Product Name (ISO)A100.9
GradeLumineux
Product Number5967655
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.0354"
Cutting Diameter — mm (DC)0.9 mm
Overall Length — in (OAL)1.2598"
Overall Length — mm (OAL)32.0 mm
Flute Length — in (LCF)0.4331"
Flute Length — mm (LCF)11.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0354"
Connection Dia. — mm (DCON)0.9 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number281
EAN7320760000281
File Type Download
A100.9 — 3D Model STP Download
A100.9 — Line Drawing PDF Download
