A11011.0
A11011.0
A11011.0
A11011.0

A11011.0

UGC DOR5967824
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.30 CAD - $32.30 CAD
$32.30 CAD
$32.30 CAD - $32.30 CAD
$32.30 CAD

Vendu en lots de : 1

Foret long à queue cylindrique, diamètre 11mm, longueur totale 195mm et longueur utile 128mm selon la norme DIN 340 avec angle de pointe 118°, en HSS avec finition vapeur pour perçage 6xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A11011.0
GradeTrempé à la vapeur
Product Number5967824
Product FamilyA110
Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)7.6772"
Overall Length — mm (OAL)195.0 mm
Flute Length — in (LCF)5.0394"
Flute Length — mm (LCF)128.0 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 340
Reference Numbers
EDP Number10174
EAN7320760010174
File Type Download
A11011.0 — 3D Model STP Download

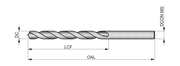

A11011.0 — Line Drawing PDF Download
