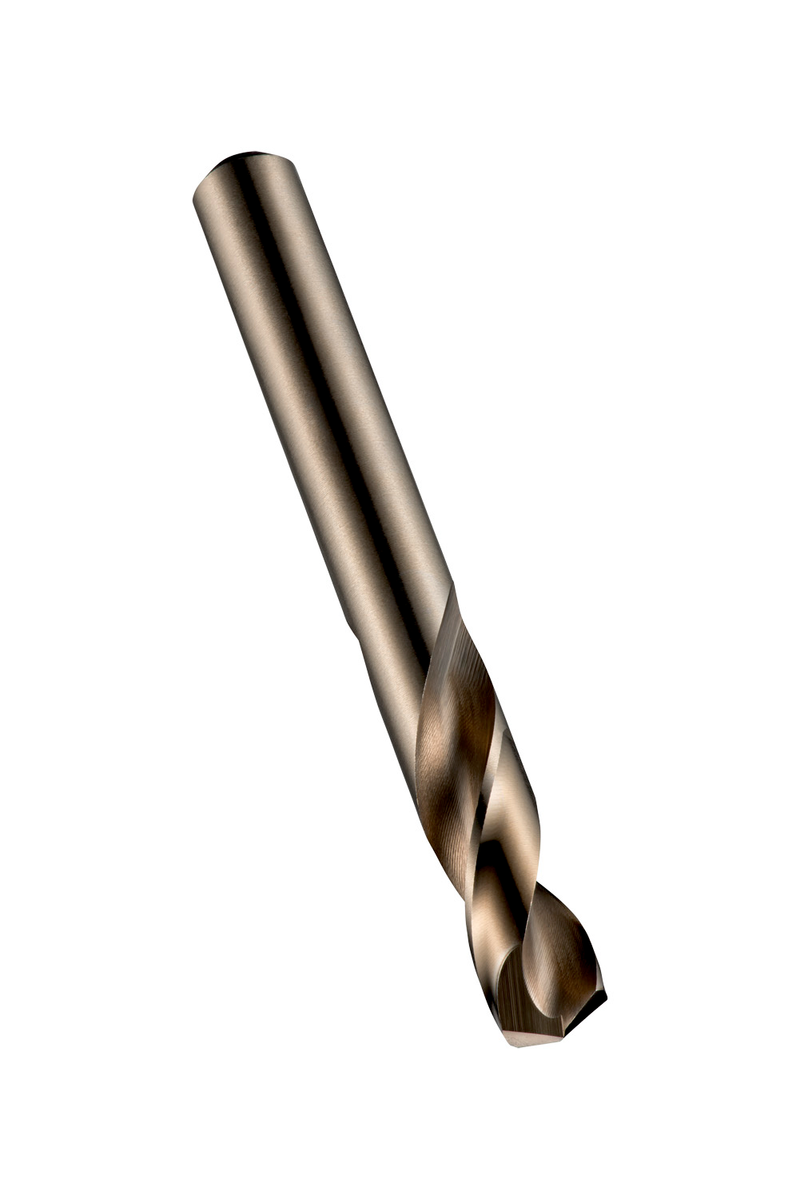

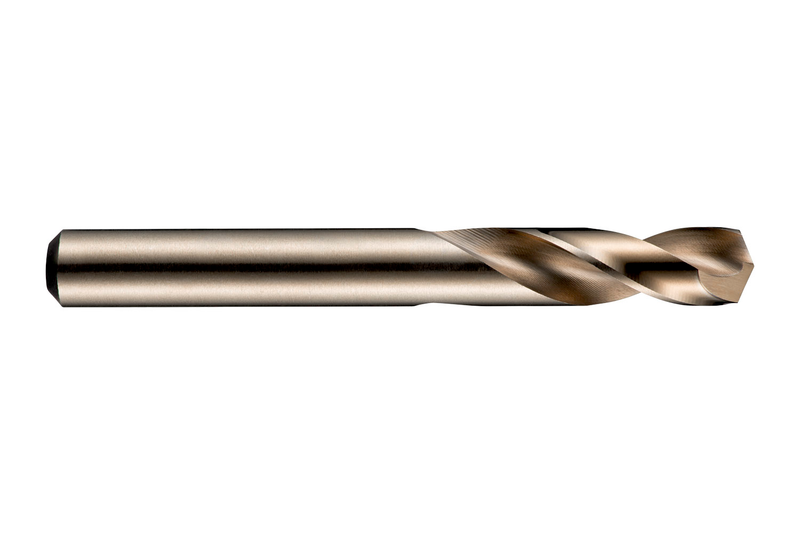

Foret court à queue cylindrique, diamètre 10,2mm avec une longueur totale de 89mm et une longueur de coupe de 43mm selon la norme DIN 1897 avec pointe fendue à 135°, HSS-E au cobalt avec finition bronze pour un perçage à 2,5xD sans débourrage dans l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A11710.2
GradeBronze
Product Number5967858
Product FamilyA117
Dimensions
Cutting Diameter — in (DC)0.4016"
Cutting Diameter — mm (DC)10.2 mm
Overall Length — in (OAL)3.5039"
Overall Length — mm (OAL)89.0 mm
Flute Length — in (LCF)1.6929"
Flute Length — mm (LCF)43.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4016"
Connection Dia. — mm (DCON)10.2 mm

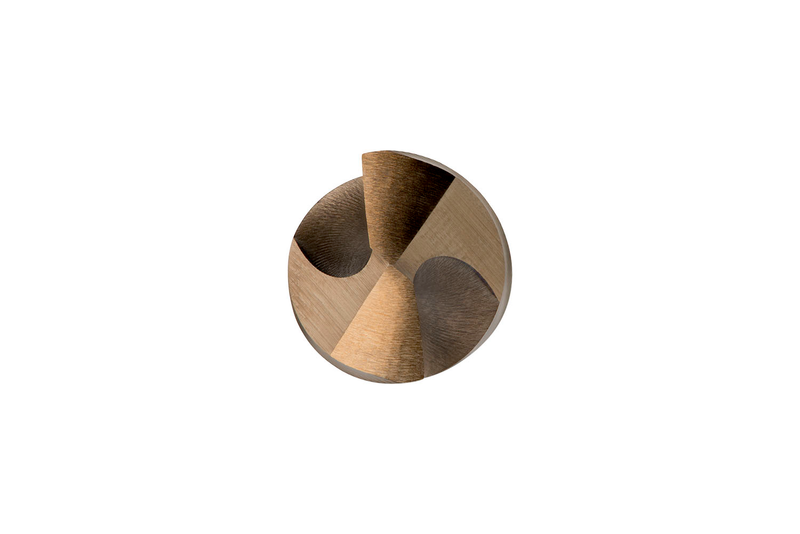

Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number15162
EAN7320760015162
File Type Download
A11710.2 — 3D Model STP Download
A11710.2 — Line Drawing PDF Download
