A11710.5
A11710.5
A11710.5
A11710.5

A11710.5

UGC DOR5967860
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.39 CAD - $28.39 CAD
$28.39 CAD
$28.39 CAD - $28.39 CAD
$28.39 CAD

Vendu en lots de : 5

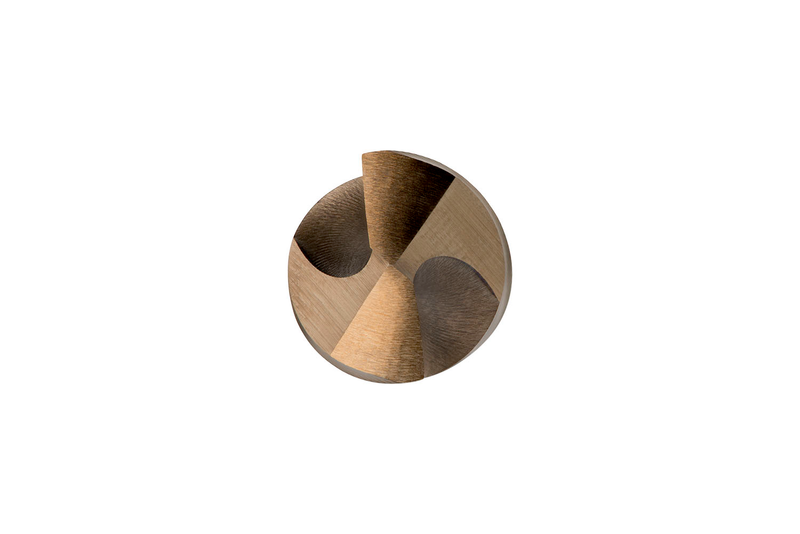

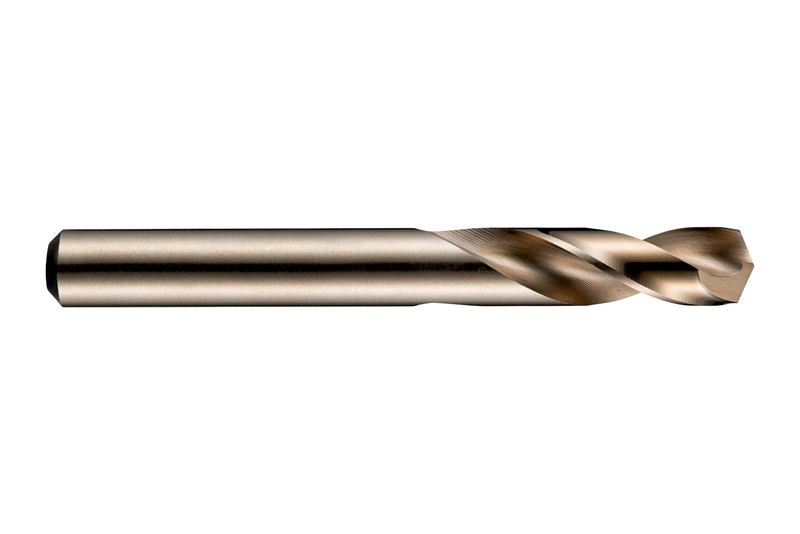

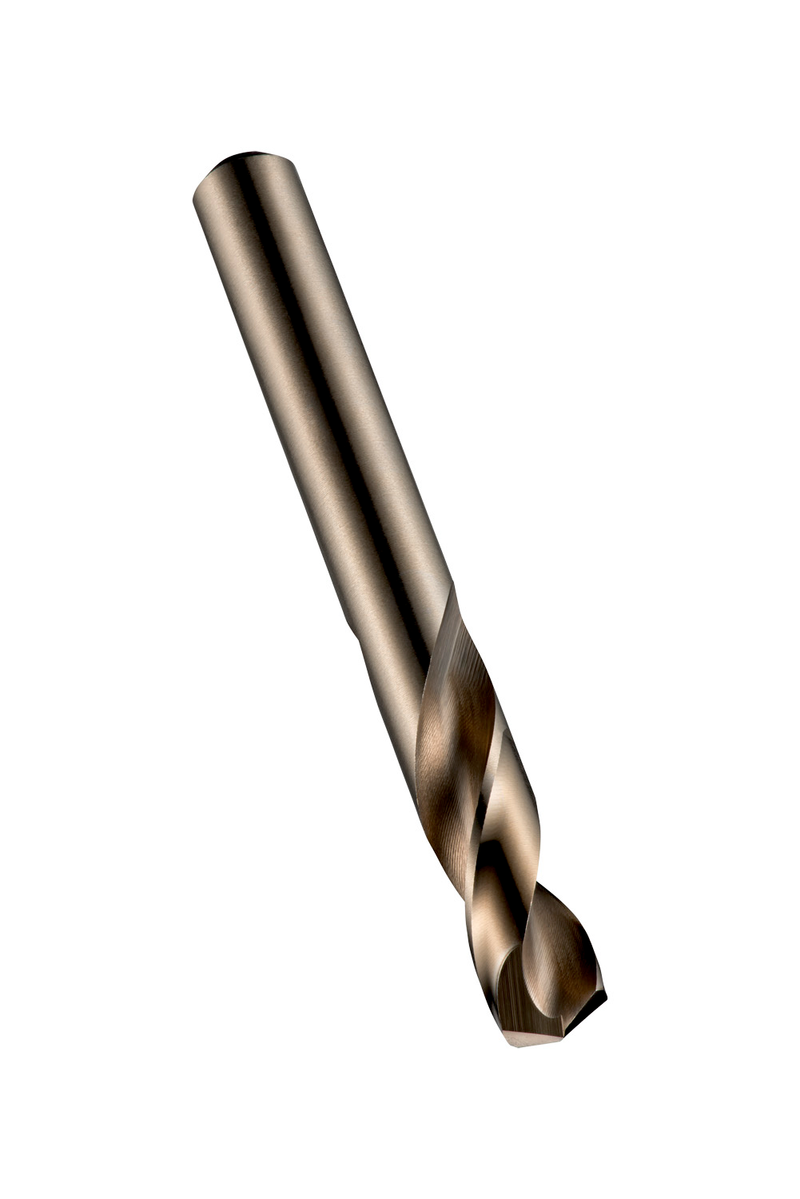

Foret court à queue cylindrique, diamètre 10,5 mm, longueur totale 89 mm et longueur de goujure 43 mm selon la norme DIN 1897 avec pointe en croix à 135°, en HSS-E cobalt avec finition bronze pour le perçage de 2,5xD sans débourrage dans l'acier inoxydable et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A11710.5
GradeBronze
Product Number5967860
Product FamilyA117
Dimensions
Cutting Diameter — in (DC)0.4134"
Cutting Diameter — mm (DC)10.5 mm
Overall Length — in (OAL)3.5039"
Overall Length — mm (OAL)89.0 mm
Flute Length — in (LCF)1.6929"
Flute Length — mm (LCF)43.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4134"
Connection Dia. — mm (DCON)10.5 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number15179
EAN7320760015179
File Type Download
A11710.5 — 3D Model STP Download
A11710.5 — Line Drawing PDF Download
