A11712.0
A11712.0
A11712.0
A11712.0

A11712.0

UGC DOR5967866
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.03 CAD - $35.03 CAD
$35.03 CAD
$35.03 CAD - $35.03 CAD
$35.03 CAD

Vendu en lots de : 5

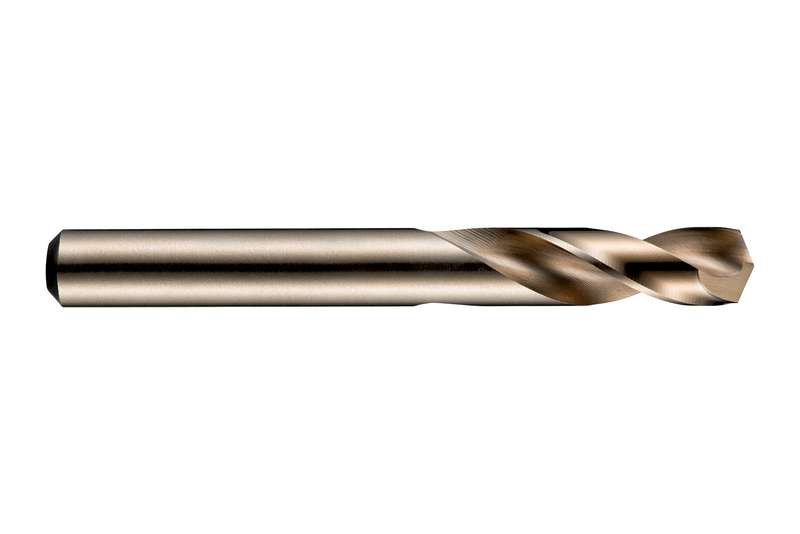

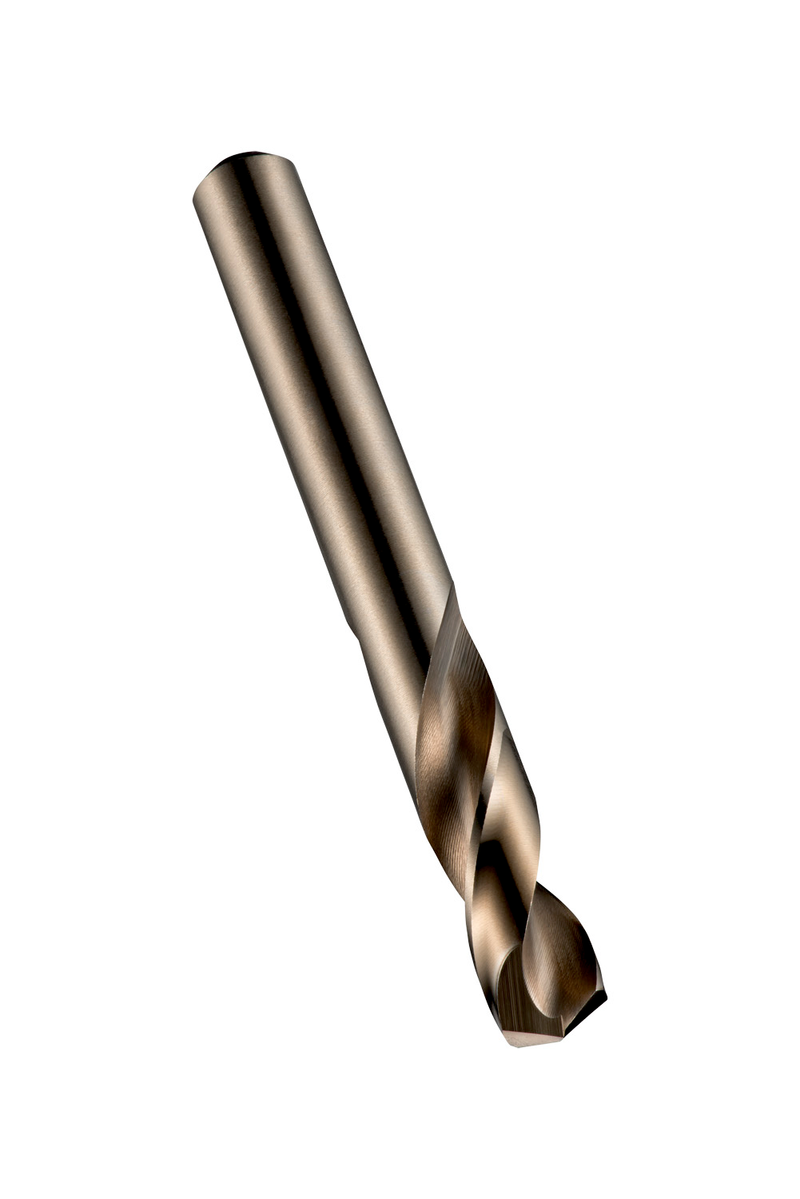

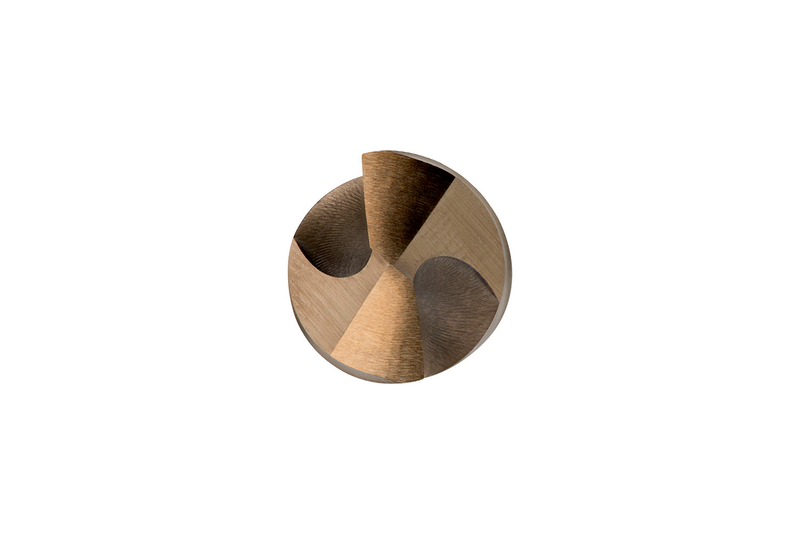

Foret court à queue cylindrique, diamètre 12 mm, longueur totale 102 mm, longueur utile 51 mm selon la norme DIN 1897 avec pointe auto-centrante à 135°, en HSS-E cobalt avec finition bronze pour le perçage en 2,5xD sans débourrage dans l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A11712.0
GradeBronze
Product Number5967866
Product FamilyA117
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Flute Length — in (LCF)2.0079"
Flute Length — mm (LCF)51.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number15209
EAN7320760015209
File Type Download
A11712.0 — 3D Model STP Download
A11712.0 — Line Drawing PDF Download
