UGC DOR5967894
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5.44 CAD - $5.44 CAD
$5.44 CAD
$5.44 CAD - $5.44 CAD
$5.44 CAD

Vendu en lots de : 10

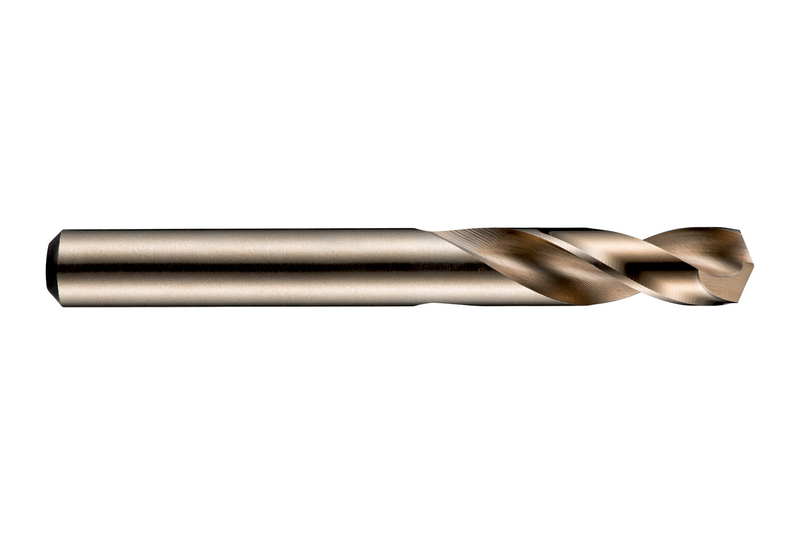

Foret court avec queue cylindrique, diamètre 3,1 mm avec une longueur totale de 49 mm et une longueur de coupe de 18 mm selon la norme DIN 1897 avec pointe en croix à 135°, HSS-E au cobalt avec finition bronze pour un perçage 2.5xD sans débourrage dans l'acier inoxydable et le superalliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1173.1
GradeBronze
Product Number5967894
Product FamilyA117
Dimensions
Cutting Diameter — in (DC)0.122"
Cutting Diameter — mm (DC)3.1 mm
Overall Length — in (OAL)1.9291"
Overall Length — mm (OAL)49.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.122"
Connection Dia. — mm (DCON)3.1 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number15339
EAN7320760015339
File Type Download
A1173.1 — 3D Model STP Download
A1173.1 — Line Drawing PDF Download
