A1101/32
A1101/32
A1101/32
A1101/32

A1101/32

UGC DOR5967897
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.43 CAD - $9.43 CAD
$9.43 CAD
$9.43 CAD - $9.43 CAD
$9.43 CAD

Vendu en lots de : 10

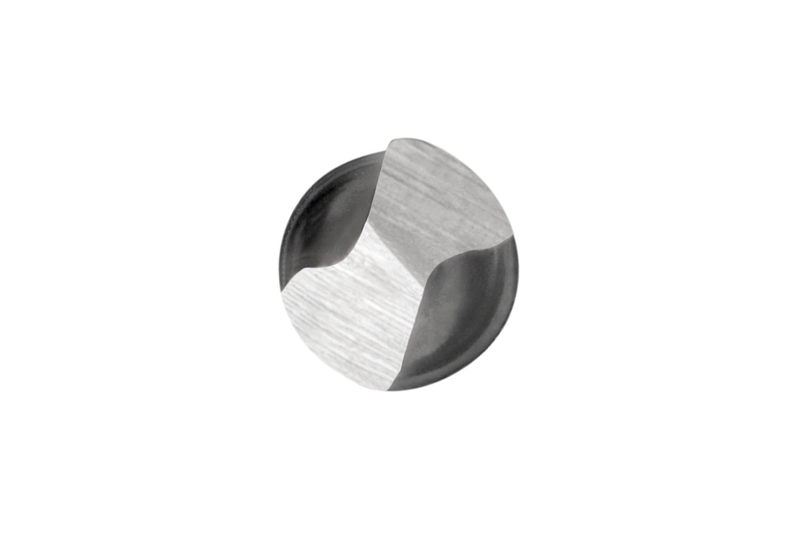

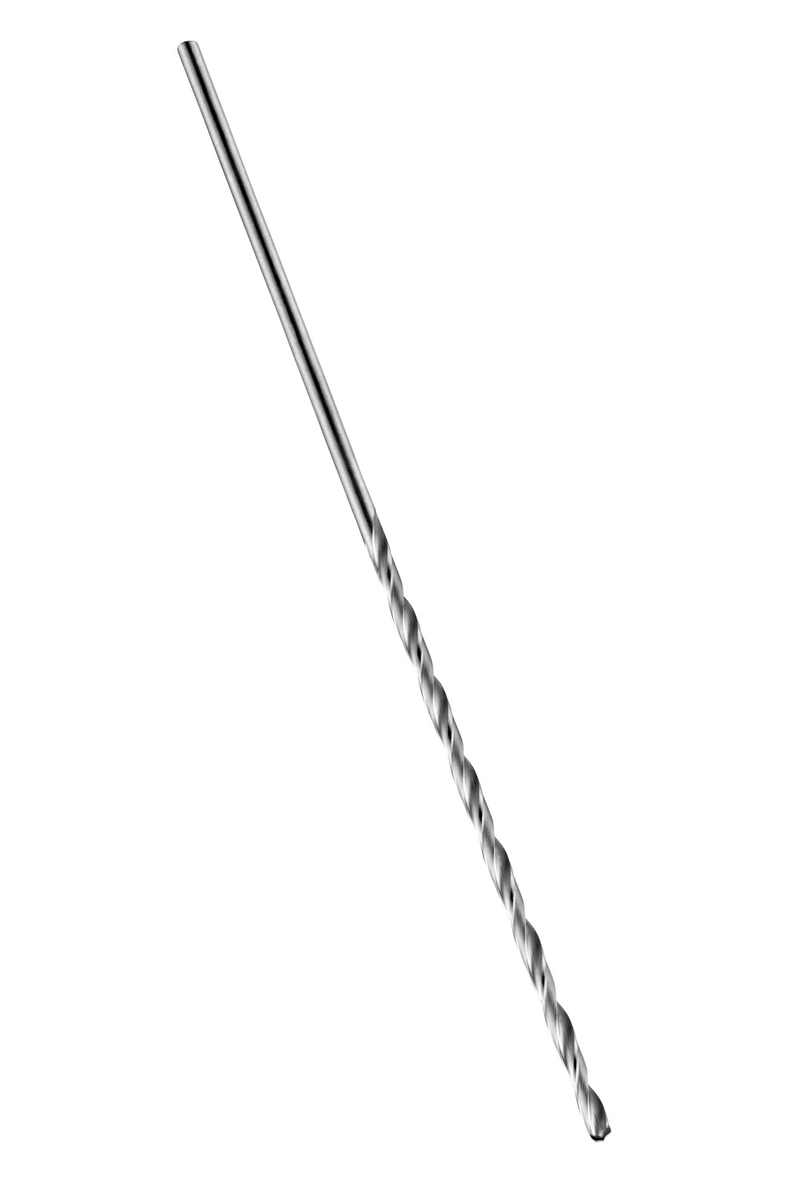

Foret série longue, queue cylindrique, diamètre 0,0313" (1/32) avec une longueur totale de 46mm et une longueur de coupe de 25mm selon la norme DIN 340 avec un angle de pointe de 118°, en HSS avec finition brillante pour le perçage de 6xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1101/32
GradeLumineux
Product Number5967897
Product FamilyA110
Dimensions
Cutting Diameter — in (DC)0.0313"
Cutting Diameter — mm (DC)0.79 mm
Cutting Diameter — Fractional1/32
Overall Length — in (OAL)1.811"
Overall Length — mm (OAL)46.0 mm
Flute Length — in (LCF)0.9843"
Flute Length — mm (LCF)25.0 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.0311"
Connection Dia. — mm (DCON)0.79 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 340
Reference Numbers
EDP Number10488
EAN7320760010488
File Type Download
A1101/32 — 3D Model STP Download
A1101/32 — Line Drawing PDF Download
