UGC DOR5967902
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.80 CAD - $4.80 CAD
$4.80 CAD
$4.80 CAD - $4.80 CAD
$4.80 CAD

Vendu en lots de : 10

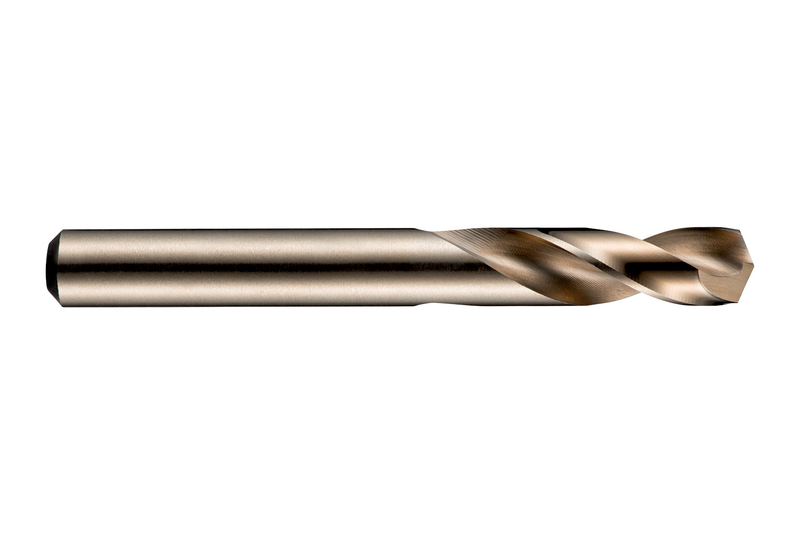

Foret court à queue cylindrique, diamètre 3,4 mm, longueur totale 52 mm et longueur de la partie coupante 20 mm selon la norme DIN 1897 avec pointe à 135° auto-centrante, HSS-E au cobalt avec finition bronze pour perçage 2,5xD sans débourrage dans l'acier inoxydable et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1173.4
GradeBronze
Product Number5967902
Product FamilyA117
Dimensions
Cutting Diameter — in (DC)0.1339"
Cutting Diameter — mm (DC)3.4 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Flute Length — in (LCF)0.7874"
Flute Length — mm (LCF)20.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1339"
Connection Dia. — mm (DCON)3.4 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number15360
EAN7320760015360
File Type Download
A1173.4 — 3D Model STP Download
A1173.4 — Line Drawing PDF Download
