A1012.0
A1012.0
A1012.0
A1012.0

A1012.0

UGC DOR5967908
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5.44 CAD - $5.44 CAD
$5.44 CAD
$5.44 CAD - $5.44 CAD
$5.44 CAD

Vendu en lots de : 10

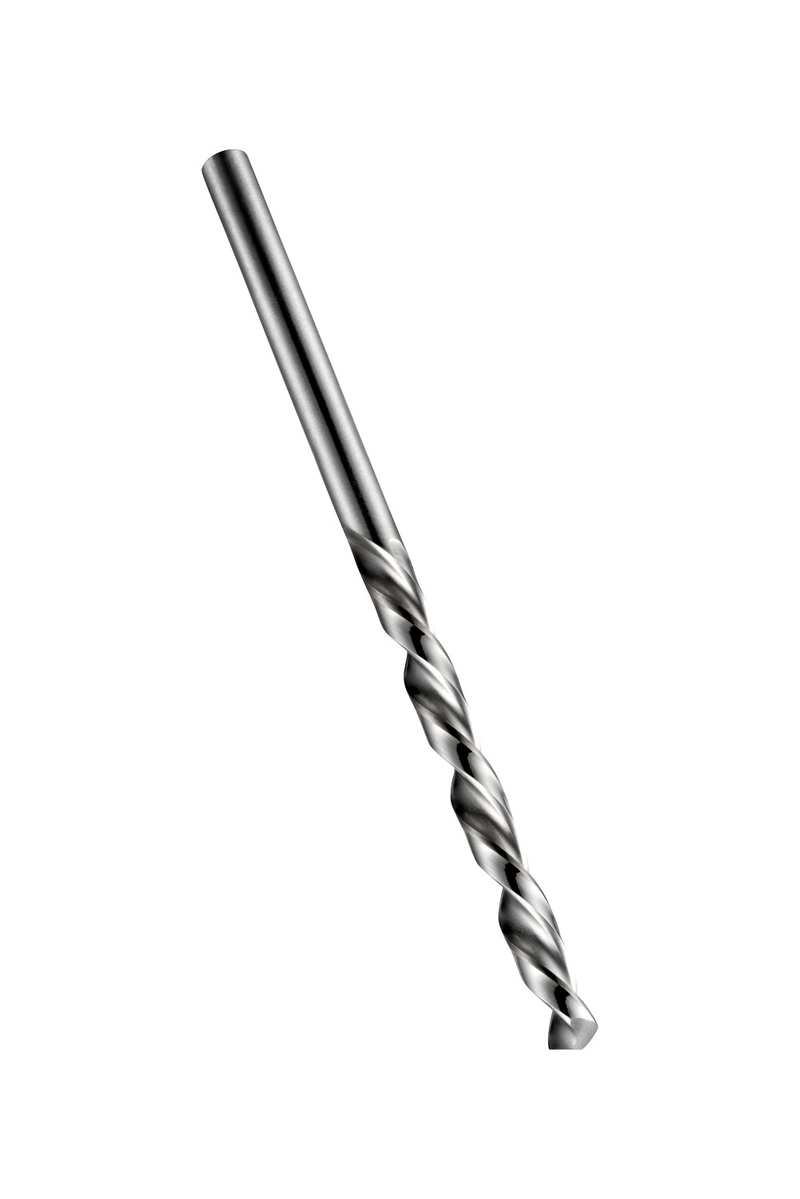

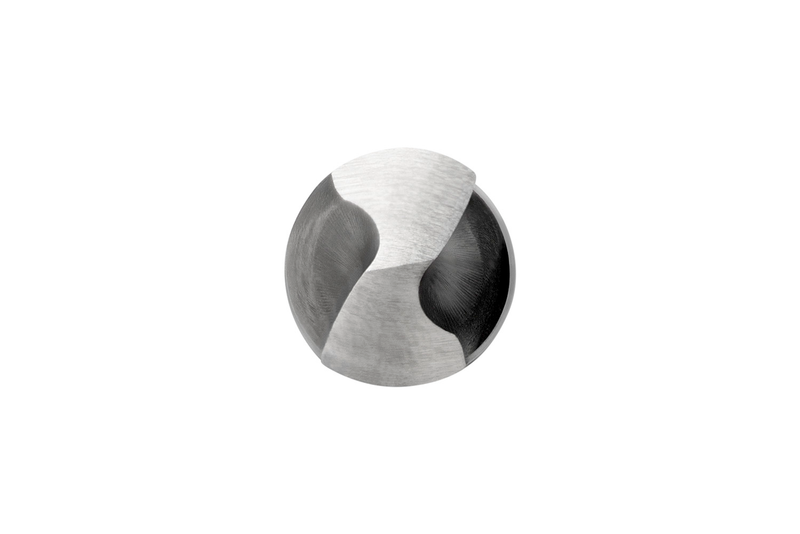

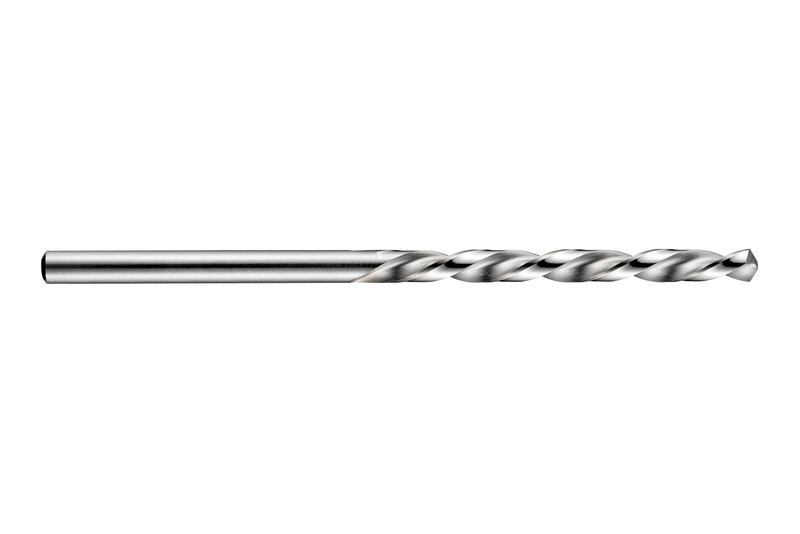

Foret queue cylindrique courte à gauche, diamètre 2 mm avec une longueur totale de 49 mm et une longueur de coupe de 24 mm selon la norme DIN 338, angle de pointe de 118°, en HSS avec finition brillante pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1012.0
GradeLumineux
Product Number5967908
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.9291"
Overall Length — mm (OAL)49.0 mm
Flute Length — in (LCF)0.9449"
Flute Length — mm (LCF)24.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0787"
Connection Dia. — mm (DCON)2.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number2803
EAN7320760002803
File Type Download
A1012.0 — 3D Model STP Download
A1012.0 — Line Drawing PDF Download
