A1173.9
A1173.9
A1173.9
A1173.9

A1173.9

UGC DOR5967914
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.44 CAD - $6.44 CAD
$6.44 CAD
$6.44 CAD - $6.44 CAD
$6.44 CAD

Vendu en lots de : 10

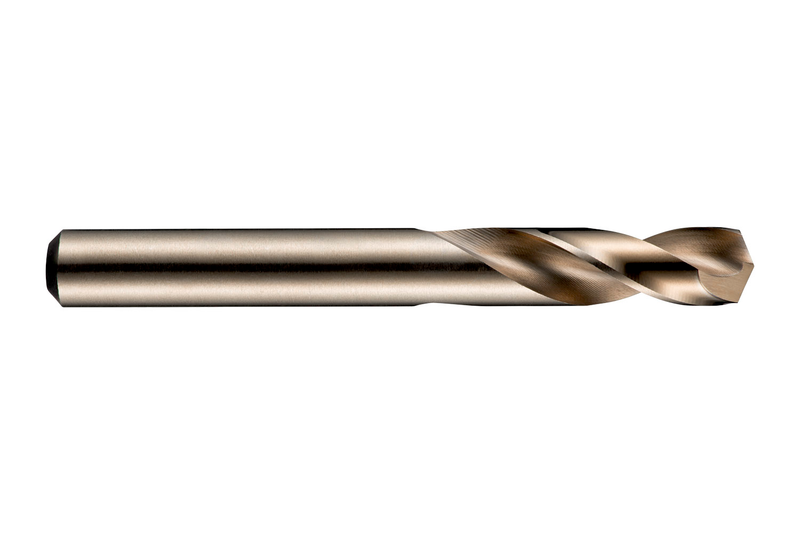

Forets courts à queue cylindrique, diamètre 3,9 mm, longueur totale 55 mm et longueur de coupe 22 mm selon la norme DIN 1897 avec pointe à 135° auto-centrante, en HSS-E cobalt avec finition bronze pour le perçage jusqu'à 2,5xD sans débourrage dans l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1173.9
GradeBronze
Product Number5967914
Product FamilyA117
Dimensions
Cutting Diameter — in (DC)0.1535"
Cutting Diameter — mm (DC)3.9 mm
Overall Length — in (OAL)2.1654"
Overall Length — mm (OAL)55.0 mm
Flute Length — in (LCF)0.8661"
Flute Length — mm (LCF)22.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1535"
Connection Dia. — mm (DCON)3.9 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number15414
EAN7320760015414
File Type Download
A1173.9 — 3D Model STP Download
A1173.9 — Line Drawing PDF Download
