A1013.0
A1013.0
A1013.0
A1013.0

A1013.0

UGC DOR5967917
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.74 CAD - $4.74 CAD
$4.74 CAD
$4.74 CAD - $4.74 CAD
$4.74 CAD

Vendu en lots de : 10

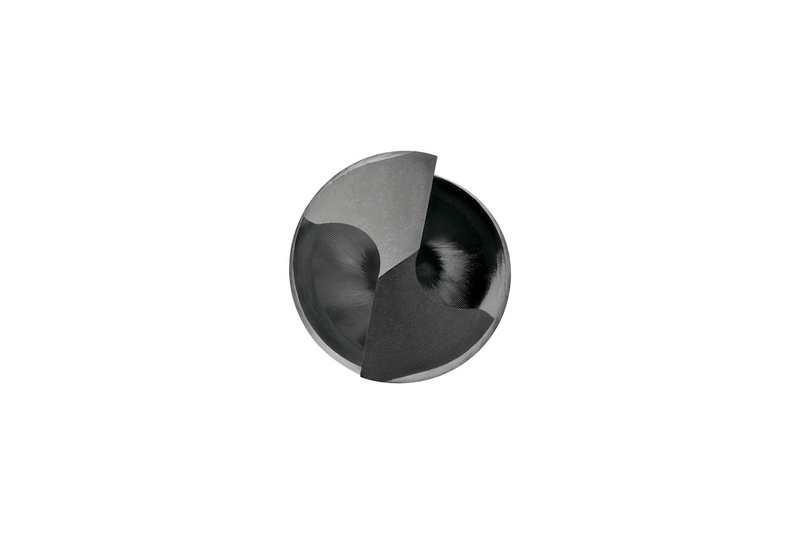

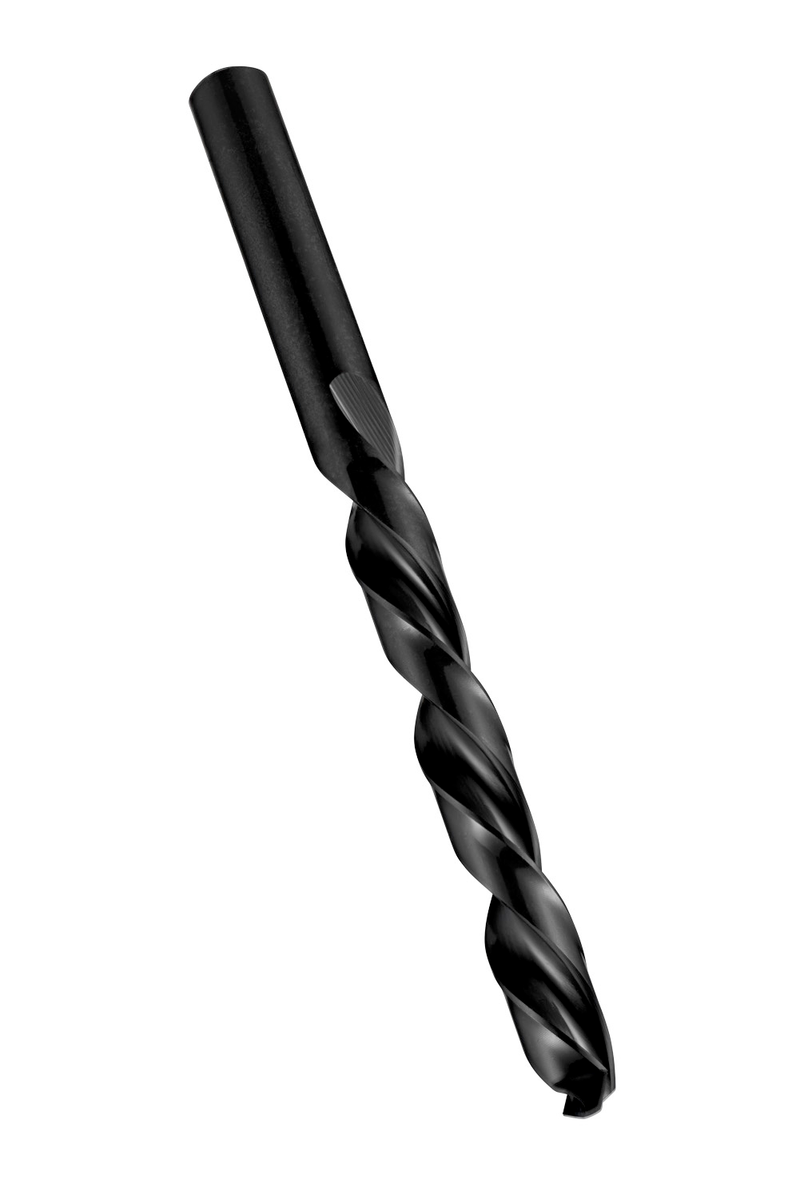

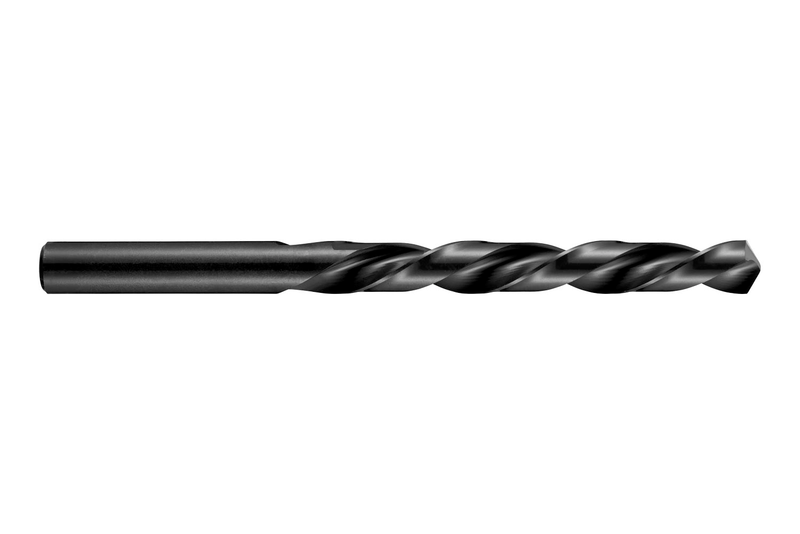

Foret queue cylindrique courte à gauche, diamètre 3 mm, longueur totale 61 mm et longueur de coupe 33 mm, conforme à la norme DIN 338, angle de pointe 118°, HSS avec finition recuite à la vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1013.0
GradeTrempé à la vapeur
Product Number5967917
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)2.4016"
Overall Length — mm (OAL)61.0 mm
Flute Length — in (LCF)1.2992"
Flute Length — mm (LCF)33.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number2902
EAN7320760002902
File Type Download
A1013.0 — 3D Model STP Download
A1013.0 — Line Drawing PDF Download
