A1013.2
A1013.2
A1013.2
A1013.2

A1013.2

UGC DOR5967920
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.40 CAD - $7.40 CAD
$7.40 CAD
$7.40 CAD - $7.40 CAD
$7.40 CAD

Vendu en lots de : 10

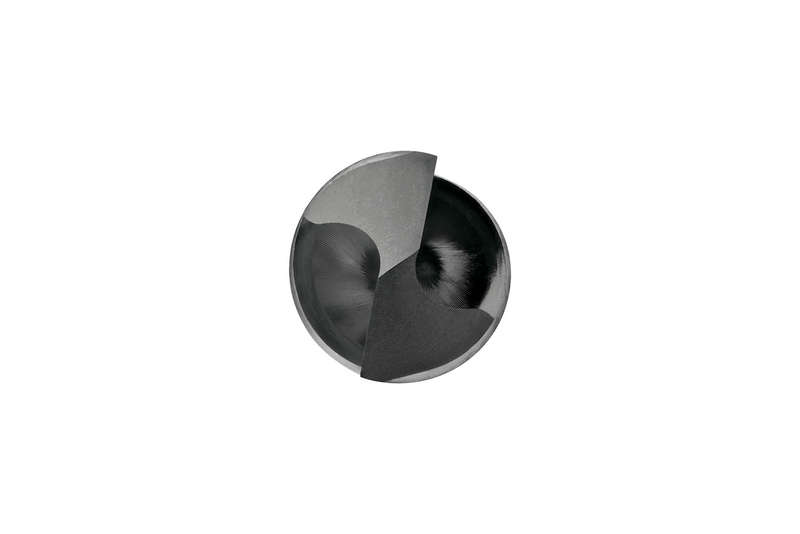

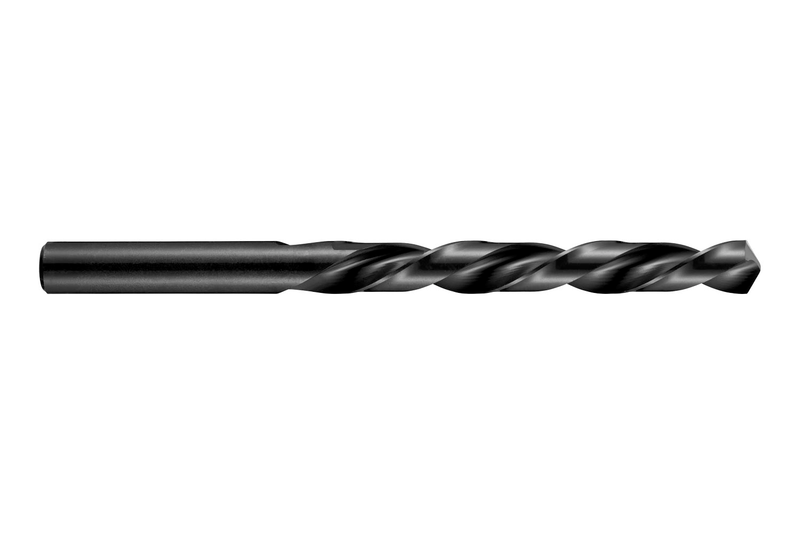

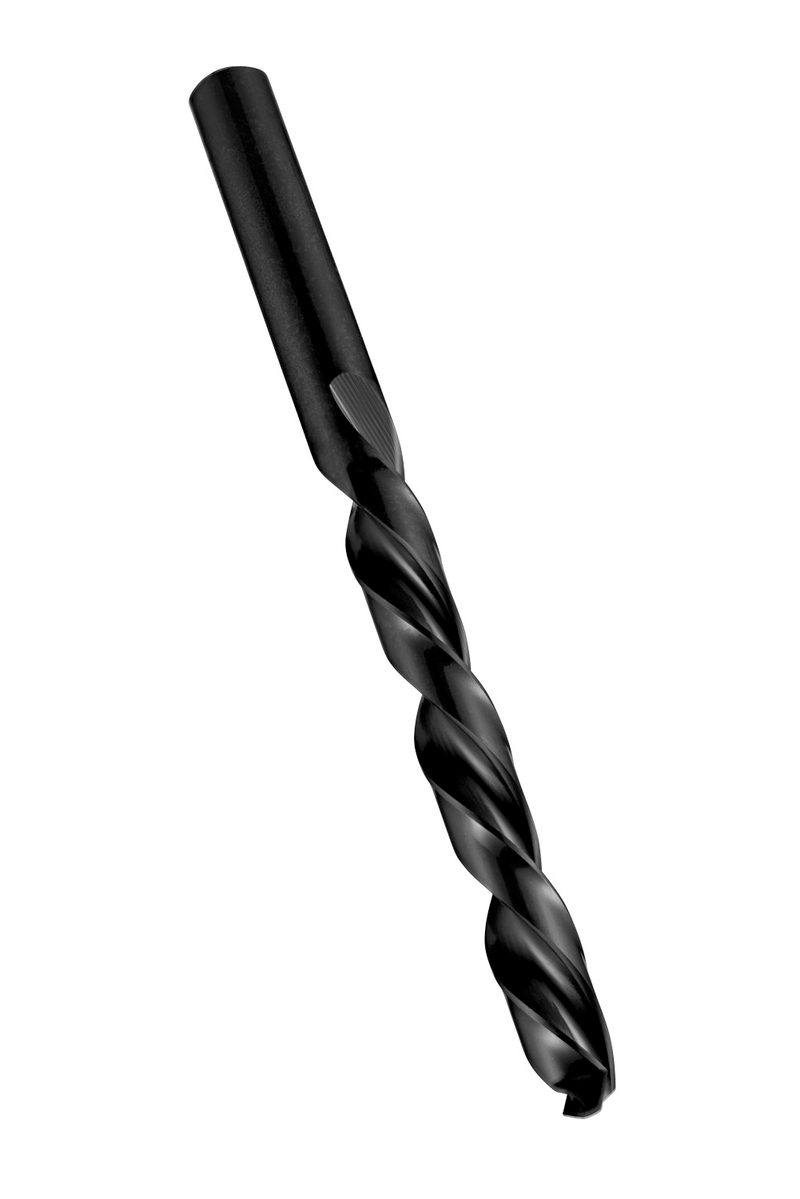

Foret hélicoïdal gauche à queue cylindrique, de diamètre 3,2 mm, de longueur totale 65 mm et de longueur de coupe 36 mm, conforme à la norme DIN 338 avec un angle de pointe de 118°, en HSS avec finition recuite à la vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1013.2
GradeTrempé à la vapeur
Product Number5967920
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.126"
Cutting Diameter — mm (DC)3.2 mm
Overall Length — in (OAL)2.5591"
Overall Length — mm (OAL)65.0 mm
Flute Length — in (LCF)1.4173"
Flute Length — mm (LCF)36.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.126"
Connection Dia. — mm (DCON)3.2 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number2919
EAN7320760002919
File Type Download
A1013.2 — 3D Model STP Download
A1013.2 — Line Drawing PDF Download
