UGC DOR5967924
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.54 CAD - $7.54 CAD
$7.54 CAD
$7.54 CAD - $7.54 CAD
$7.54 CAD

Vendu en lots de : 10

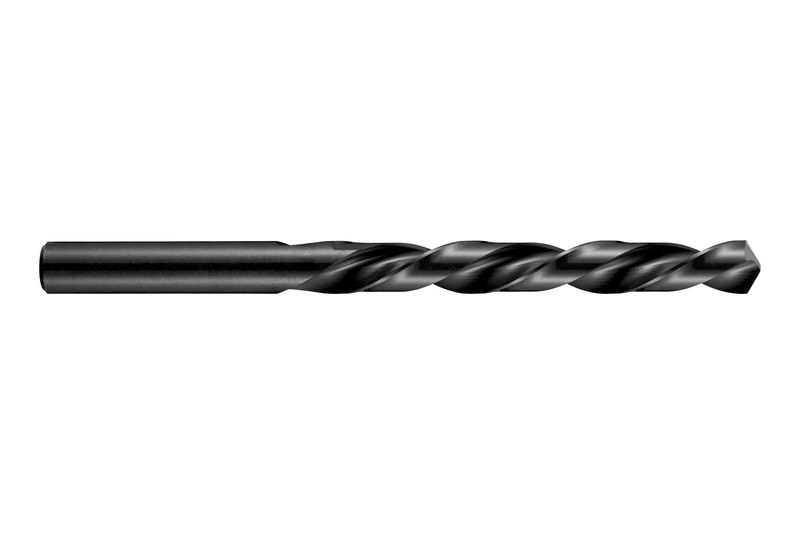

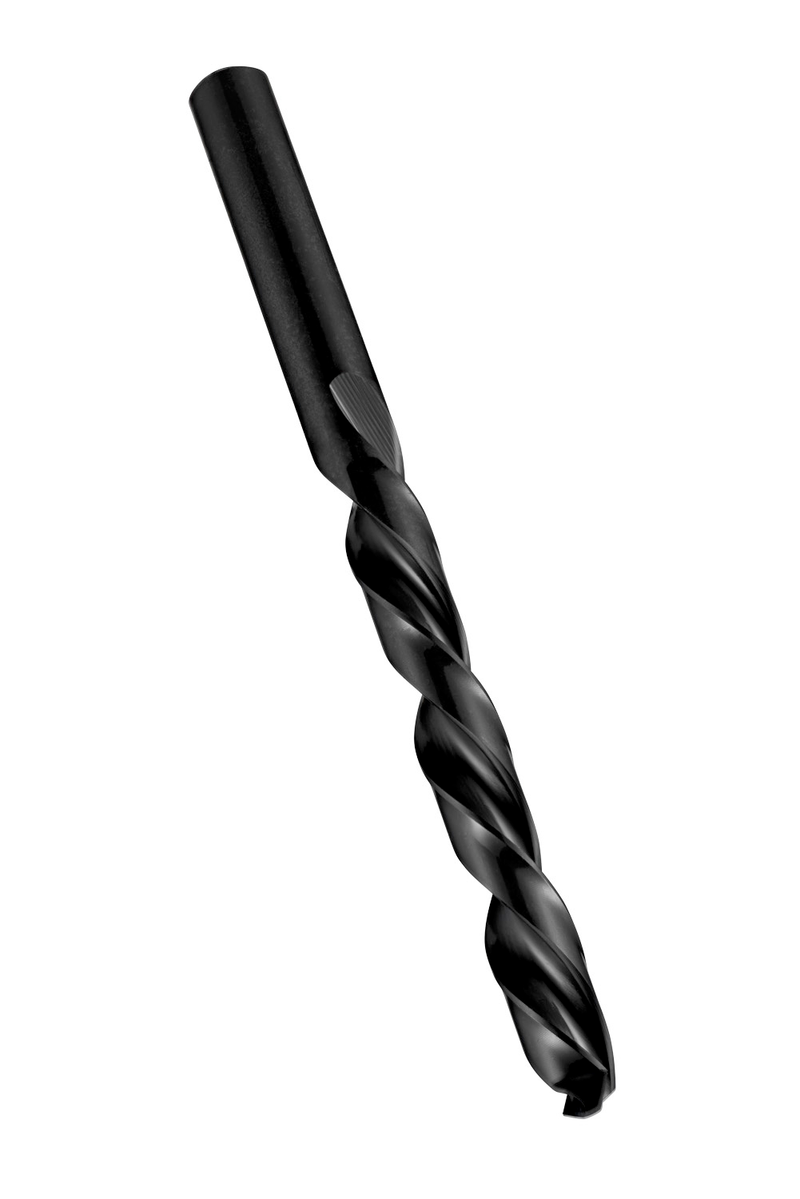

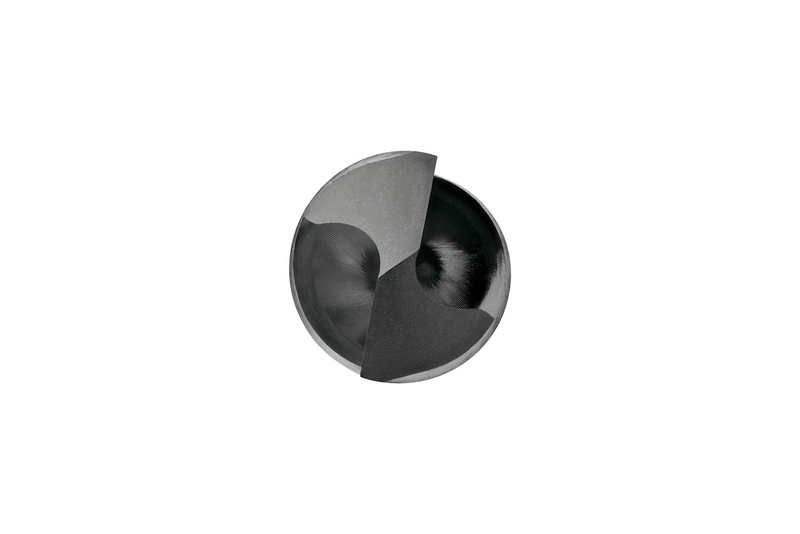

Foret hélicoïdal gauche de longueur normale, à queue cylindrique, diamètre 3,3 mm, longueur totale 65 mm, longueur de coupe 36 mm, selon la norme DIN 338, avec un angle de pointe de 118°, en HSS avec finition à la vapeur pour le perçage de 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1013.3
GradeTrempé à la vapeur
Product Number5967924
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.1299"
Cutting Diameter — mm (DC)3.3 mm
Overall Length — in (OAL)2.5591"
Overall Length — mm (OAL)65.0 mm
Flute Length — in (LCF)1.4173"
Flute Length — mm (LCF)36.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1299"
Connection Dia. — mm (DCON)3.3 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number2926
EAN7320760002926
File Type Download
A1013.3 — 3D Model STP Download
A1013.3 — Line Drawing PDF Download
