UGC DOR5967931
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.13 CAD - $6.13 CAD
$6.13 CAD
$6.13 CAD - $6.13 CAD
$6.13 CAD

Vendu en lots de : 10

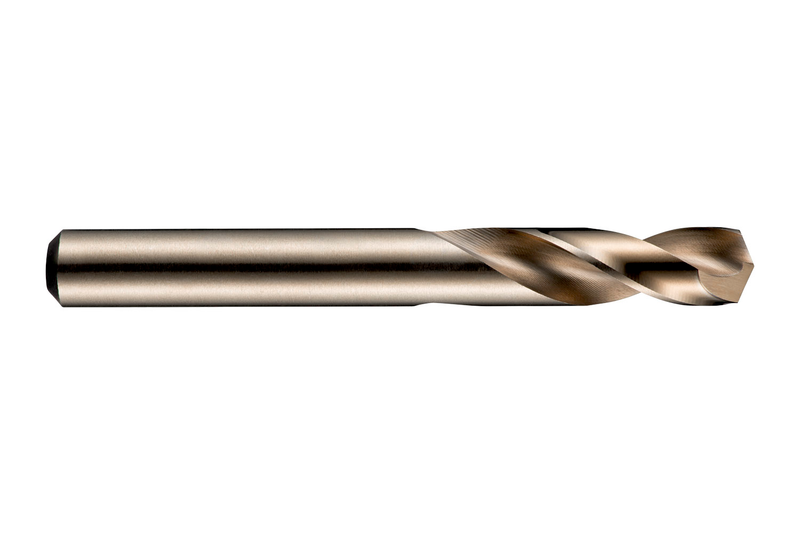

Foret court à queue cylindrique, diamètre 4,1 mm, longueur totale 55 mm et longueur de goujure 22 mm selon la norme DIN 1897, avec pointe à 135° auto-centrante en HSS-E cobalté avec finition bronze pour le perçage 2,5xD sans débourrage dans l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1174.1
GradeBronze
Product Number5967931
Product FamilyA117
Dimensions
Cutting Diameter — in (DC)0.1614"
Cutting Diameter — mm (DC)4.1 mm
Overall Length — in (OAL)2.1654"
Overall Length — mm (OAL)55.0 mm
Flute Length — in (LCF)0.8661"
Flute Length — mm (LCF)22.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1614"
Connection Dia. — mm (DCON)4.1 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number15438
EAN7320760015438
File Type Download
A1174.1 — 3D Model STP Download
A1174.1 — Line Drawing PDF Download
