A1014.0
A1014.0
A1014.0
A1014.0

A1014.0

UGC DOR5967939
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5.80 CAD - $5.80 CAD
$5.80 CAD
$5.80 CAD - $5.80 CAD
$5.80 CAD

Vendu en lots de : 10

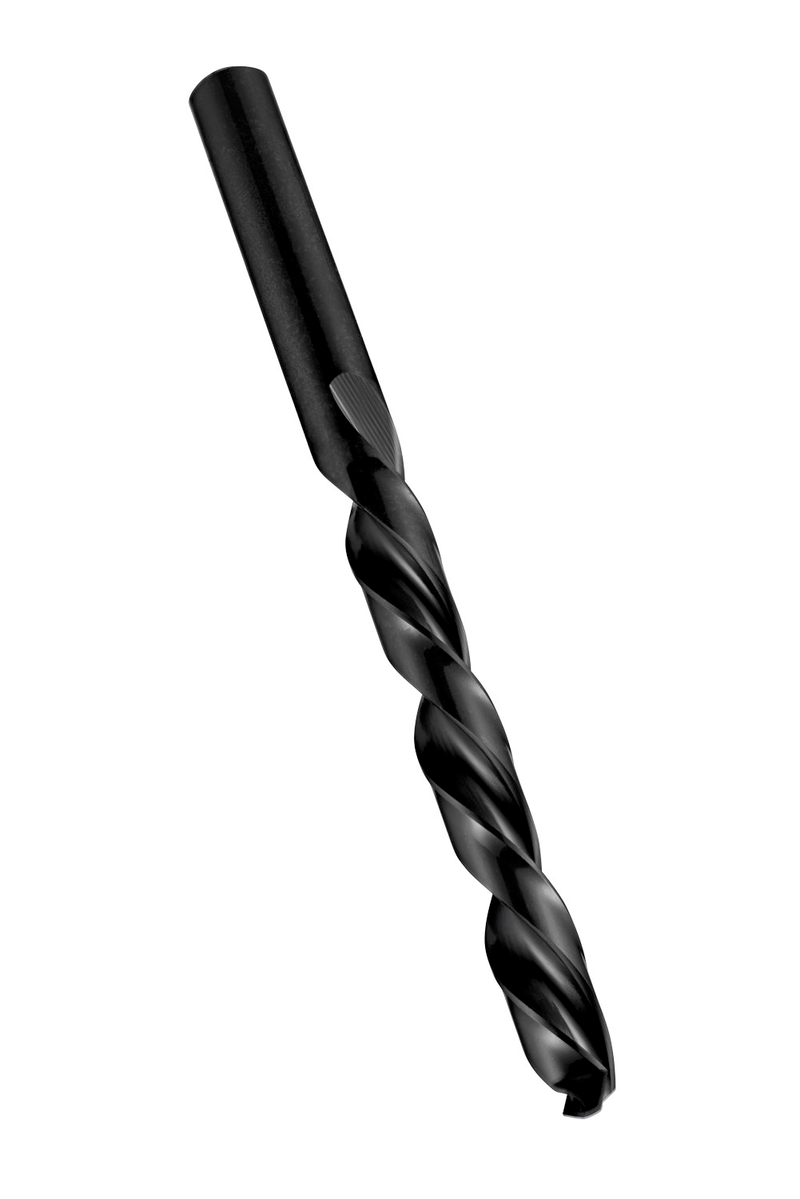

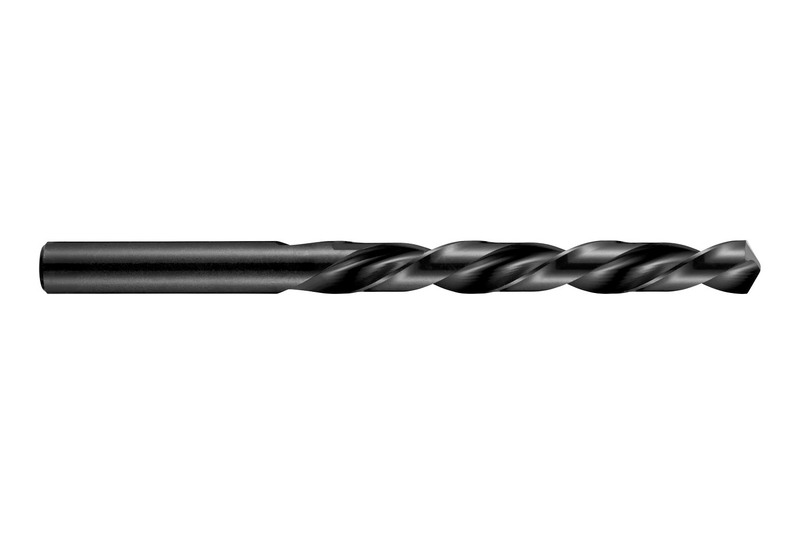

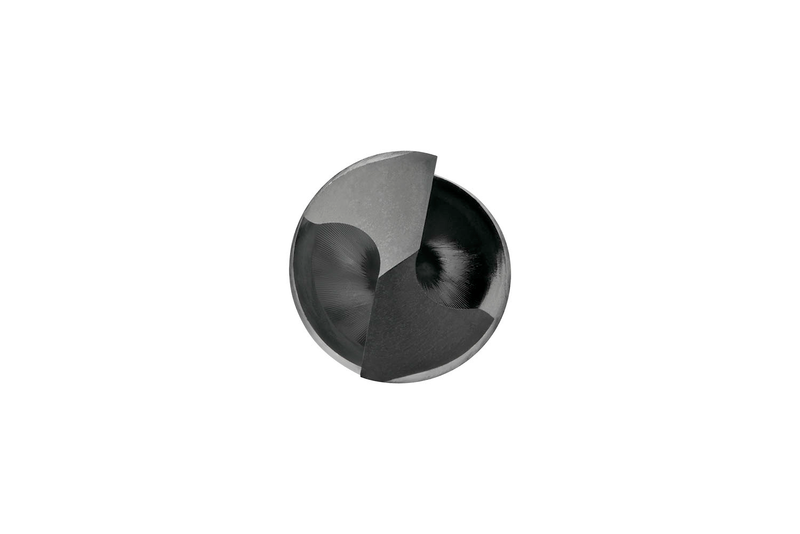

Foret hélicoïdal gauche de longueur normale à queue cylindrique, diamètre 4 mm avec une longueur totale de 75 mm et une longueur de coupe de 43 mm selon la norme DIN 338 avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1014.0
GradeTrempé à la vapeur
Product Number5967939
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Flute Length — in (LCF)1.6929"
Flute Length — mm (LCF)43.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number2957
EAN7320760002957
File Type Download
A1014.0 — 3D Model STP Download
A1014.0 — Line Drawing PDF Download
