A1016.5
A1016.5
A1016.5
A1016.5

A1016.5

UGC DOR5967972
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.64 CAD - $16.64 CAD
$16.64 CAD
$16.64 CAD - $16.64 CAD
$16.64 CAD

Vendu en lots de : 10

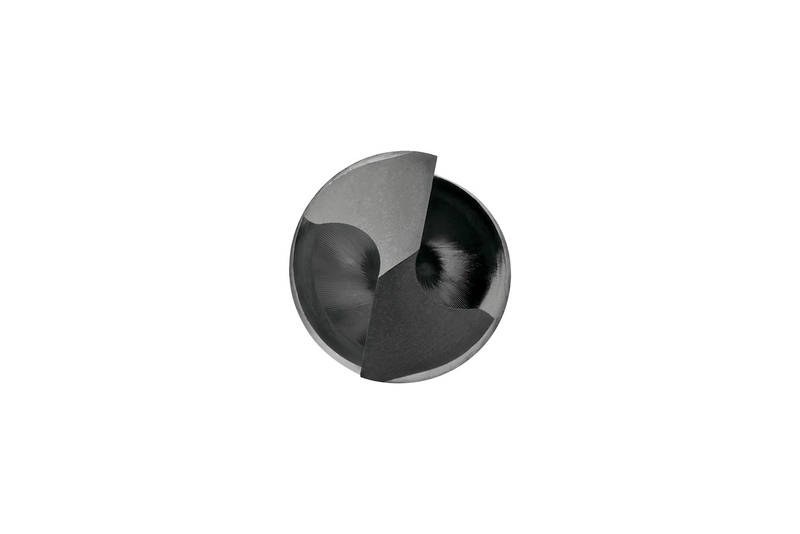

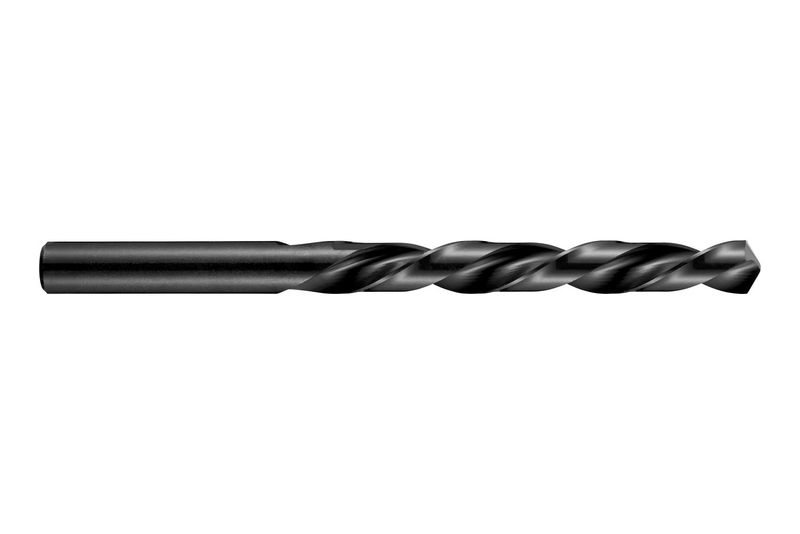

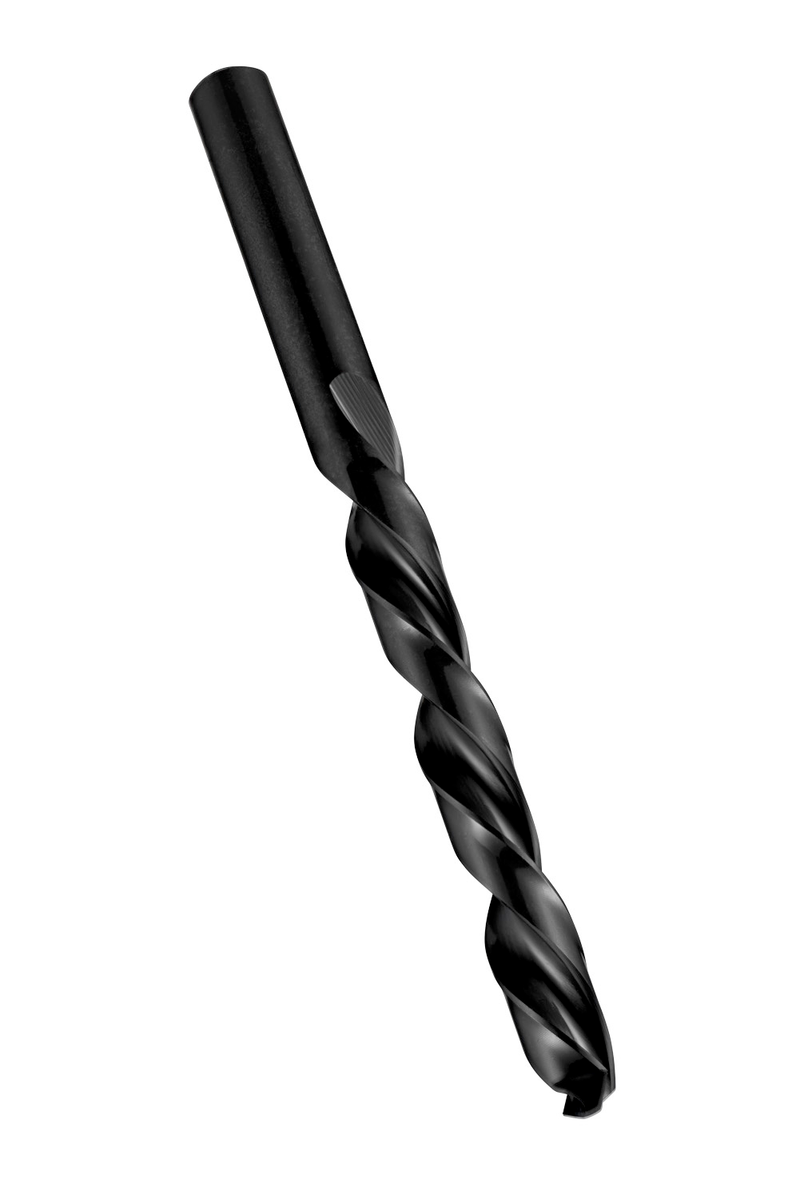

Foret hélicoïdal à queue cylindrique longueur normale (jobber), à gauche, diamètre 6,5 mm, longueur totale 101 mm et longueur de coupe 63 mm, conforme à la norme DIN 338, angle de pointe 118°, en acier rapide (HSS) finition recuite à la vapeur, pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI)A1016,5
Product Name (ISO)A1016.5
GradeTrempé vapeur
Product Number5967972
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.2559"
Cutting Diameter — mm (DC)6.5 mm
Overall Length — in (OAL)3.9764"
Overall Length — mm (OAL)101.0 mm
Flute Length — in (LCF)2.4803"
Flute Length — mm (LCF)63.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2559"
Connection Dia. — mm (DCON)6.5 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number3046
EAN7320760003046
File Type Download
A1016.5 — 3D Model STP Download
A1016.5 — Line Drawing PDF Download
