A1018.0
A1018.0
A1018.0
A1018.0

A1018.0

UGC DOR5967981
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.36 CAD - $16.36 CAD
$16.36 CAD
$16.36 CAD - $16.36 CAD
$16.36 CAD

Vendu en lots de : 10

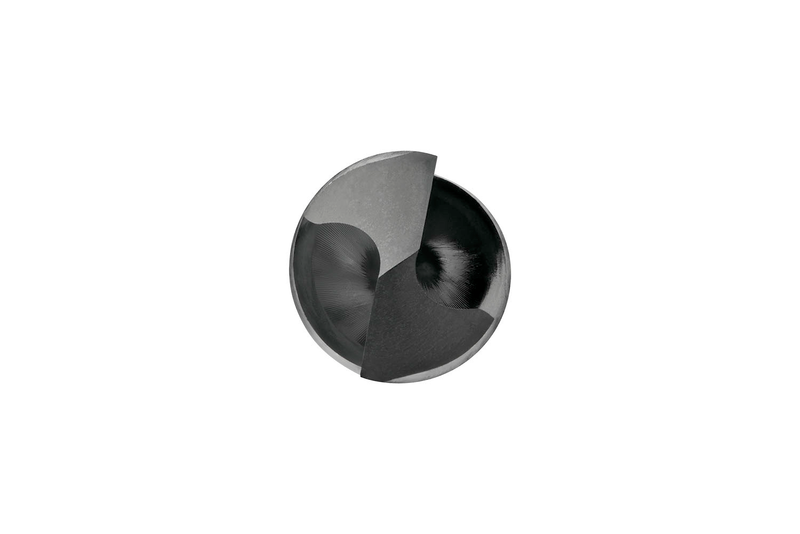

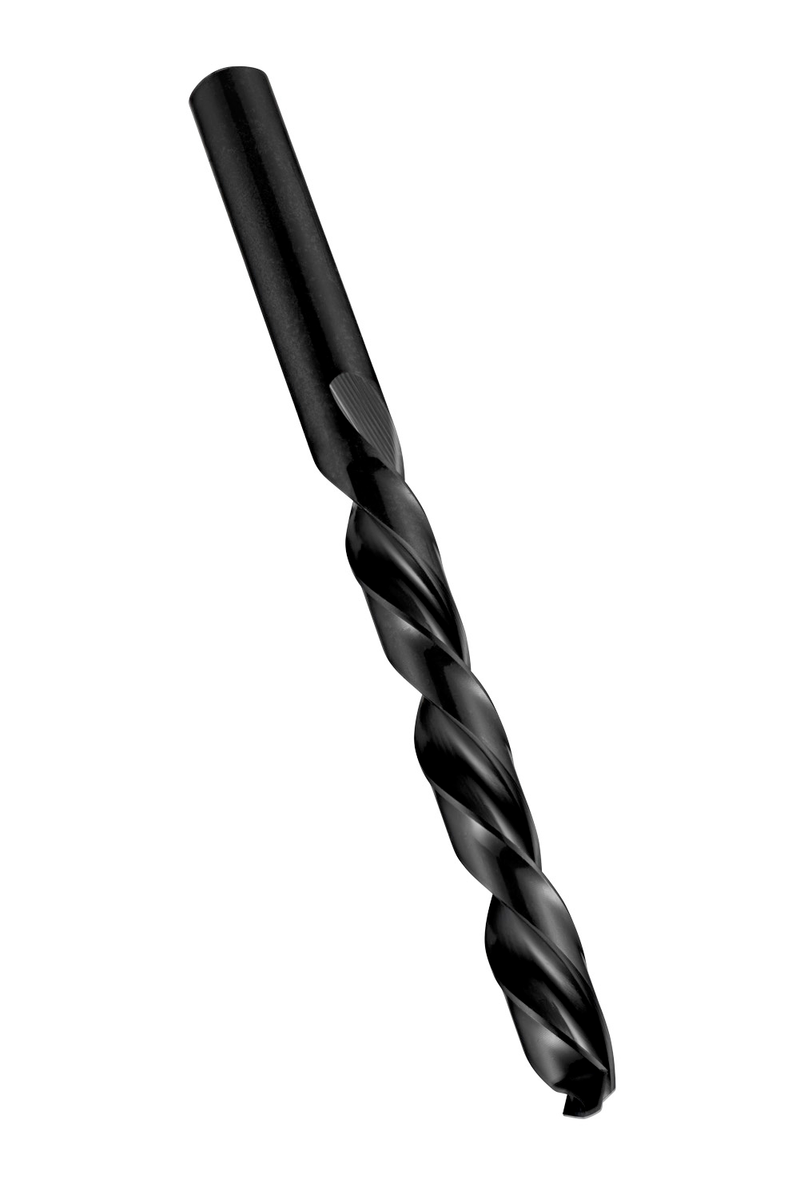

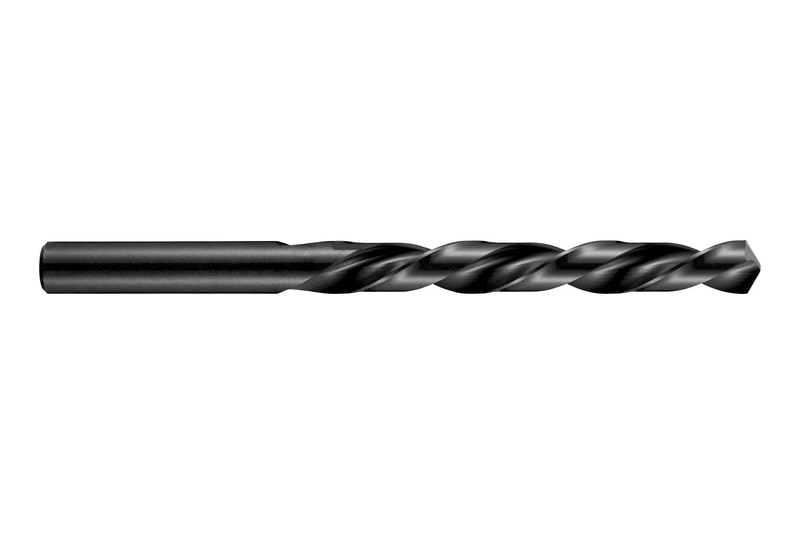

Foret hélicoïdal gauche à queue cylindrique, diamètre 8 mm, longueur totale 117 mm et longueur utile 75 mm selon DIN 338, angle de pointe 118°, HSS avec finition trempe vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1018.0
GradeTrempé vapeur
Product Number5967981
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)4.6063"
Overall Length — mm (OAL)117.0 mm
Flute Length — in (LCF)2.9528"
Flute Length — mm (LCF)75.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number3077
EAN7320760003077
File Type Download
A1018.0 — 3D Model STP Download

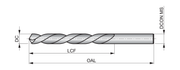

A1018.0 — Line Drawing PDF Download
