UGC DOR5968016
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.97 CAD - $7.97 CAD
$7.97 CAD
$7.97 CAD - $7.97 CAD
$7.97 CAD

Vendu en lots de : 10

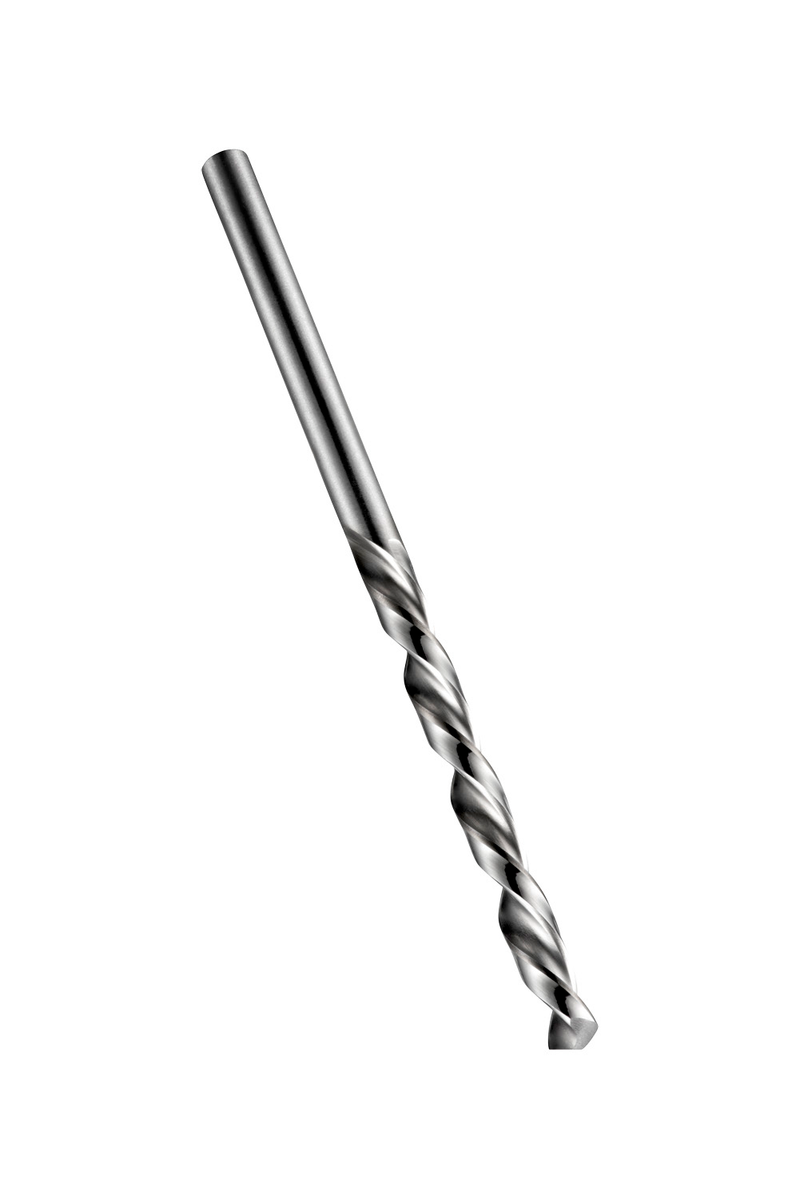

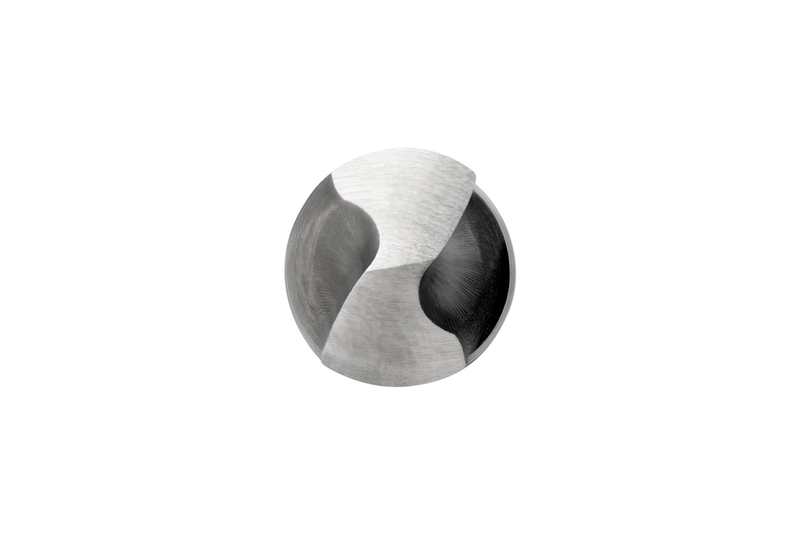

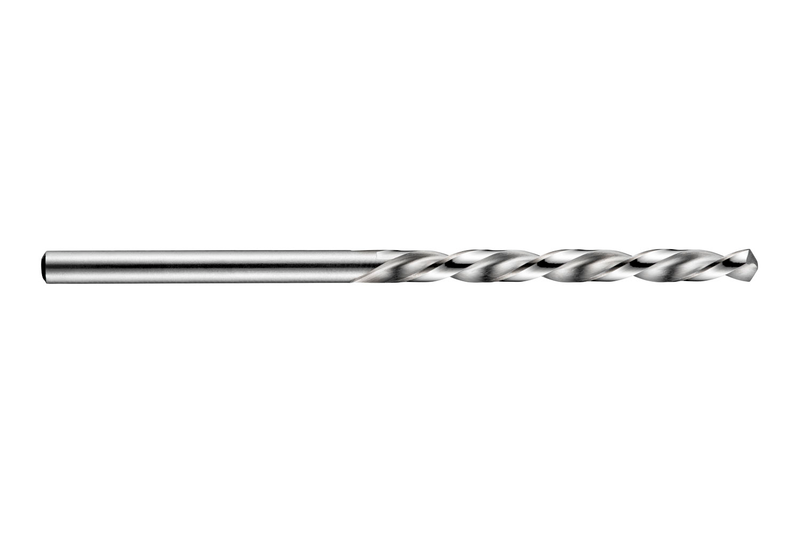

Foret queue cylindrique à gauche, longueur jobber, diamètre 1 mm, longueur totale 34 mm, longueur de coupe 12 mm, selon la norme DIN 338, angle de pointe 118°, HSS, finition brillante, pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1011.0
GradeLumineux
Product Number5968016
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.0394"
Cutting Diameter — mm (DC)1.0 mm
Overall Length — in (OAL)1.3386"
Overall Length — mm (OAL)34.0 mm
Flute Length — in (LCF)0.4724"
Flute Length — mm (LCF)12.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0394"
Connection Dia. — mm (DCON)1.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number2667
EAN7320760002667
File Type Download
A1011.0 — 3D Model STP Download
A1011.0 — Line Drawing PDF Download
