UGC DOR5968019
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.40 CAD - $11.40 CAD
$11.40 CAD
$11.40 CAD - $11.40 CAD
$11.40 CAD

Vendu en lots de : 10

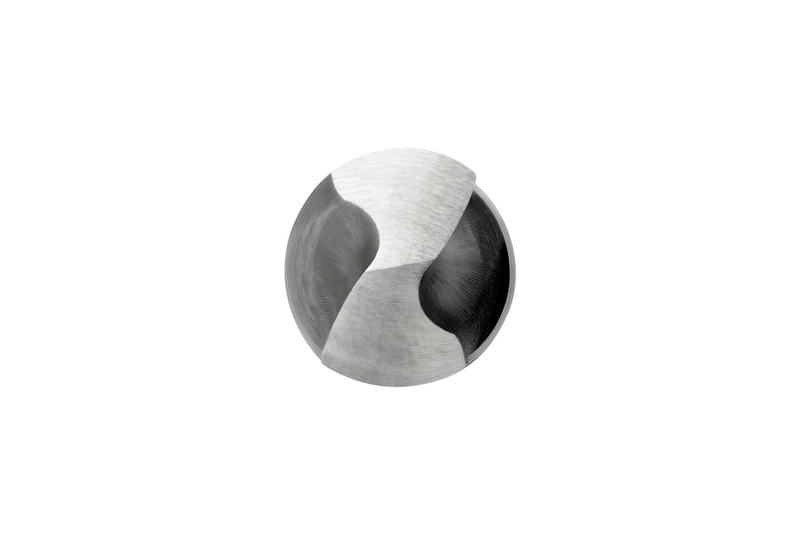

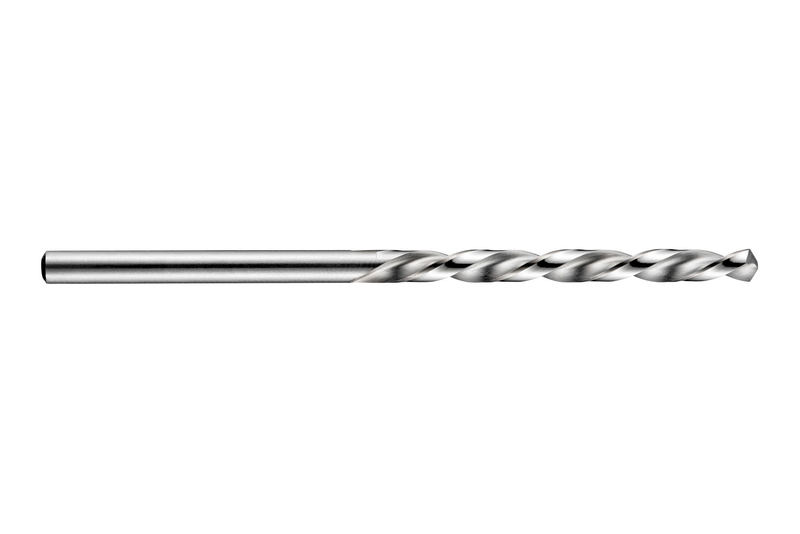

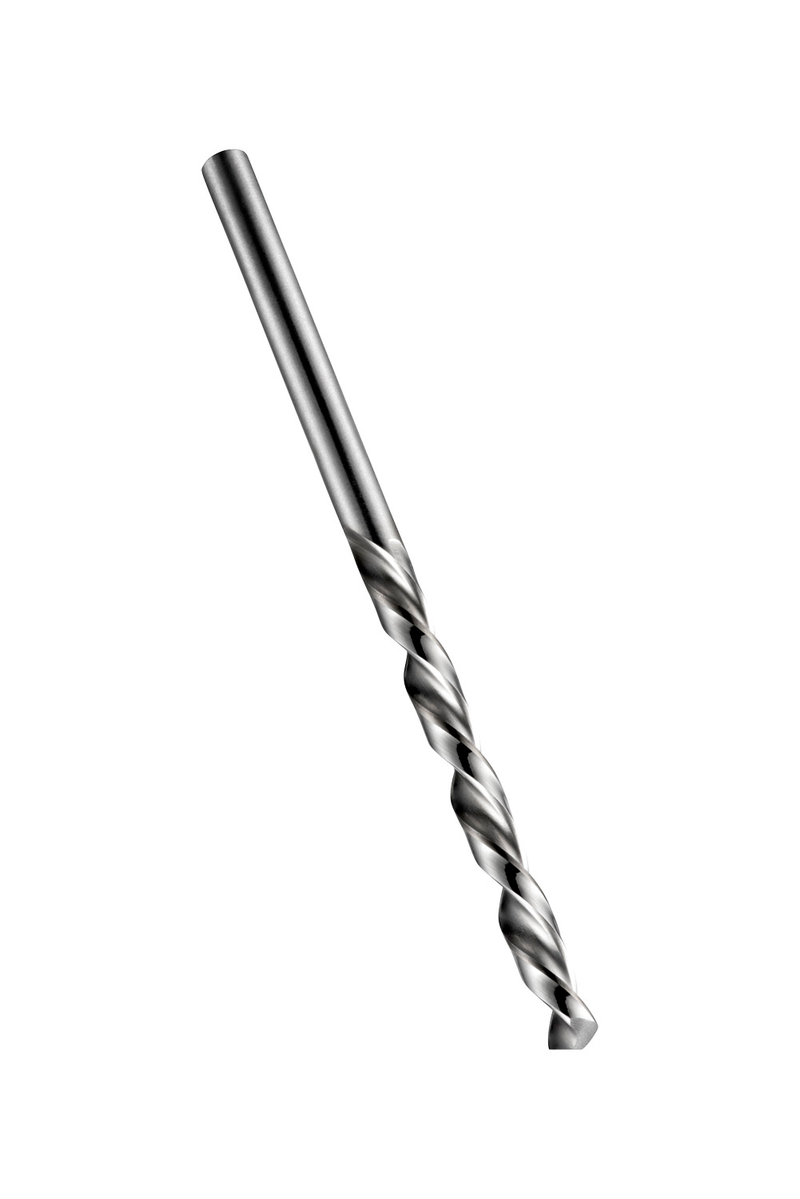

Foret jobber gauche à queue cylindrique, diamètre 1,1 mm avec une longueur totale de 36 mm et une longueur utile de 14 mm selon la norme DIN 338 avec un angle de pointe de 118°, HSS finition brillante pour un perçage à 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1011.1
GradeLumineux
Product Number5968019
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.0433"
Cutting Diameter — mm (DC)1.1 mm
Overall Length — in (OAL)1.4173"
Overall Length — mm (OAL)36.0 mm
Flute Length — in (LCF)0.5512"
Flute Length — mm (LCF)14.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0433"
Connection Dia. — mm (DCON)1.1 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number2674
EAN7320760002674
File Type Download
A1011.1 — 3D Model STP Download
A1011.1 — Line Drawing PDF Download
