UGC DOR5968025
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.51 CAD - $10.51 CAD
$10.51 CAD
$10.51 CAD - $10.51 CAD
$10.51 CAD

Vendu en lots de : 10

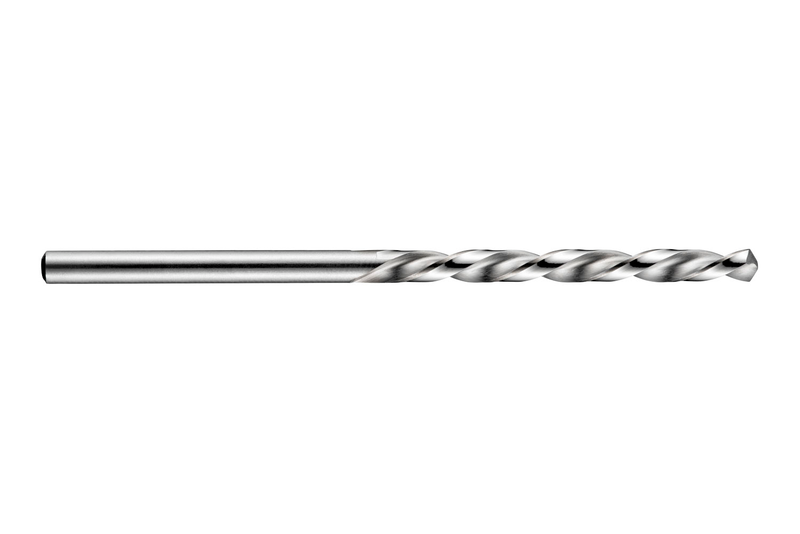

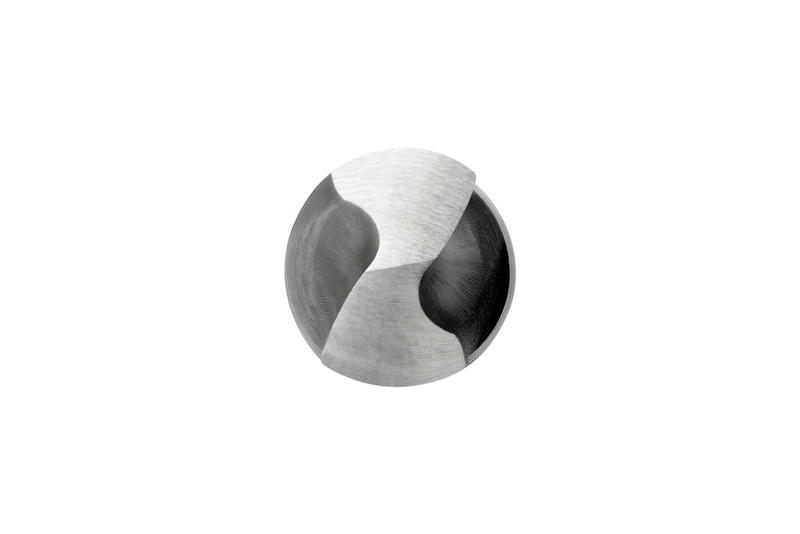

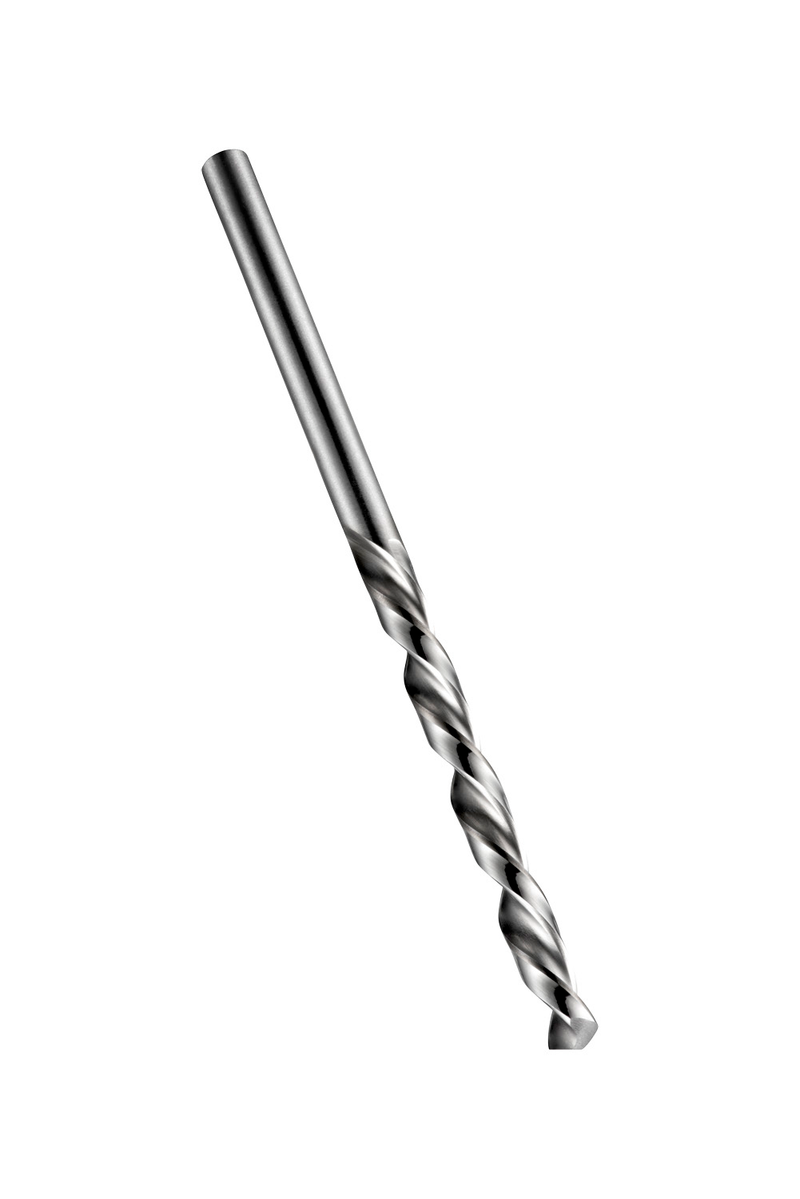

Foret hélicoïdal gauche de longueur normale à queue cylindrique, diamètre 1,25mm, longueur totale 38mm, longueur utile 16mm selon la norme DIN 338, angle de pointe 118°, en HSS poli brillant pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1011.25
GradeLumineux
Product Number5968025
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.0492"
Cutting Diameter — mm (DC)1.25 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Flute Length — in (LCF)0.6299"
Flute Length — mm (LCF)16.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0492"
Connection Dia. — mm (DCON)1.25 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number2698
EAN7320760002698
File Type Download
A1011.25 — 3D Model STP Download
A1011.25 — Line Drawing PDF Download
