UGC DOR5968034
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.09 CAD - $6.09 CAD
$6.09 CAD
$6.09 CAD - $6.09 CAD
$6.09 CAD

Vendu en lots de : 10

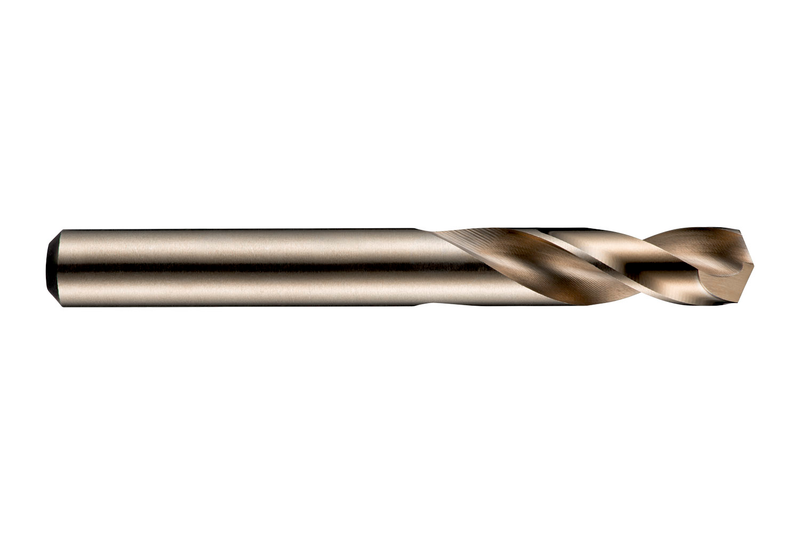

Foret court à queue cylindrique, diamètre 4,2 mm, longueur totale 55 mm et longueur de coupe 22 mm, selon la norme DIN 1897, avec pointe en croix à 135°, en HSS-E cobalt, finition bronze, pour un perçage 2,5xD sans débourrage dans l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1174.2
GradeBronze
Product Number5968034
Product FamilyA117
Dimensions
Cutting Diameter — in (DC)0.1654"
Cutting Diameter — mm (DC)4.2 mm
Overall Length — in (OAL)2.1654"
Overall Length — mm (OAL)55.0 mm
Flute Length — in (LCF)0.8661"
Flute Length — mm (LCF)22.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1654"
Connection Dia. — mm (DCON)4.2 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number15445
EAN7320760015445
File Type Download
A1174.2 — 3D Model STP Download
A1174.2 — Line Drawing PDF Download
