UGC DOR5968037
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.64 CAD - $9.64 CAD
$9.64 CAD
$9.64 CAD - $9.64 CAD
$9.64 CAD

Vendu en lots de : 10

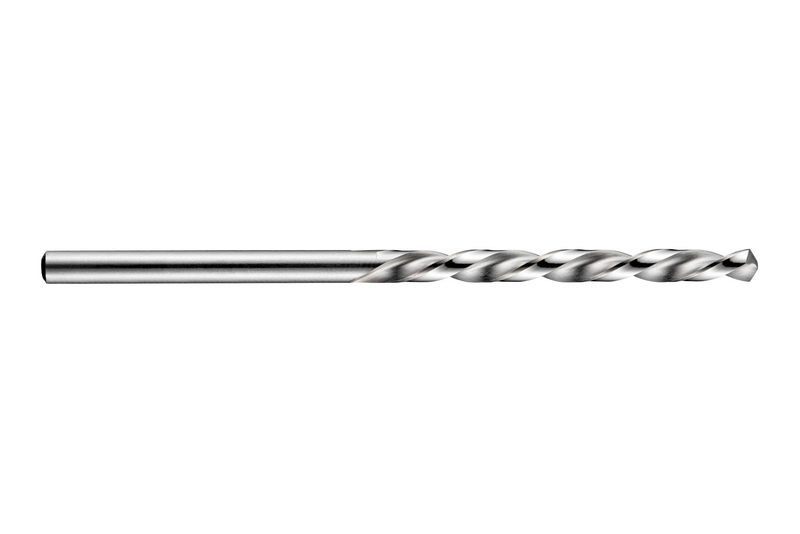

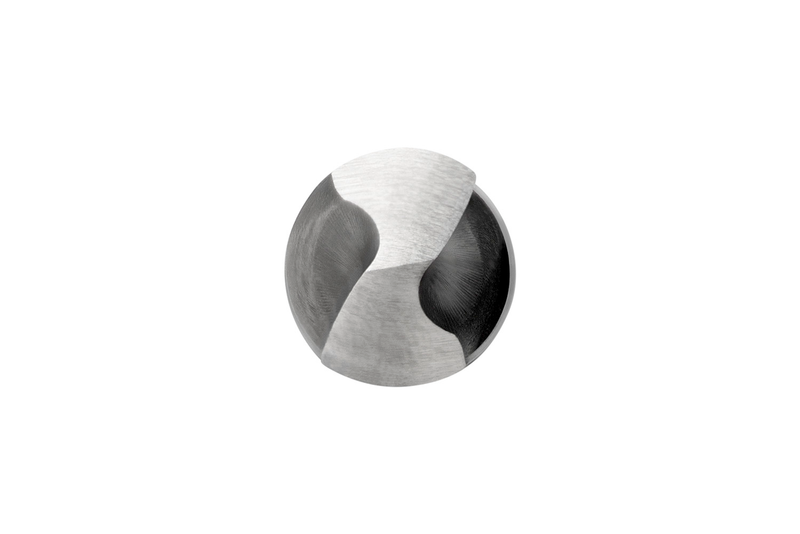

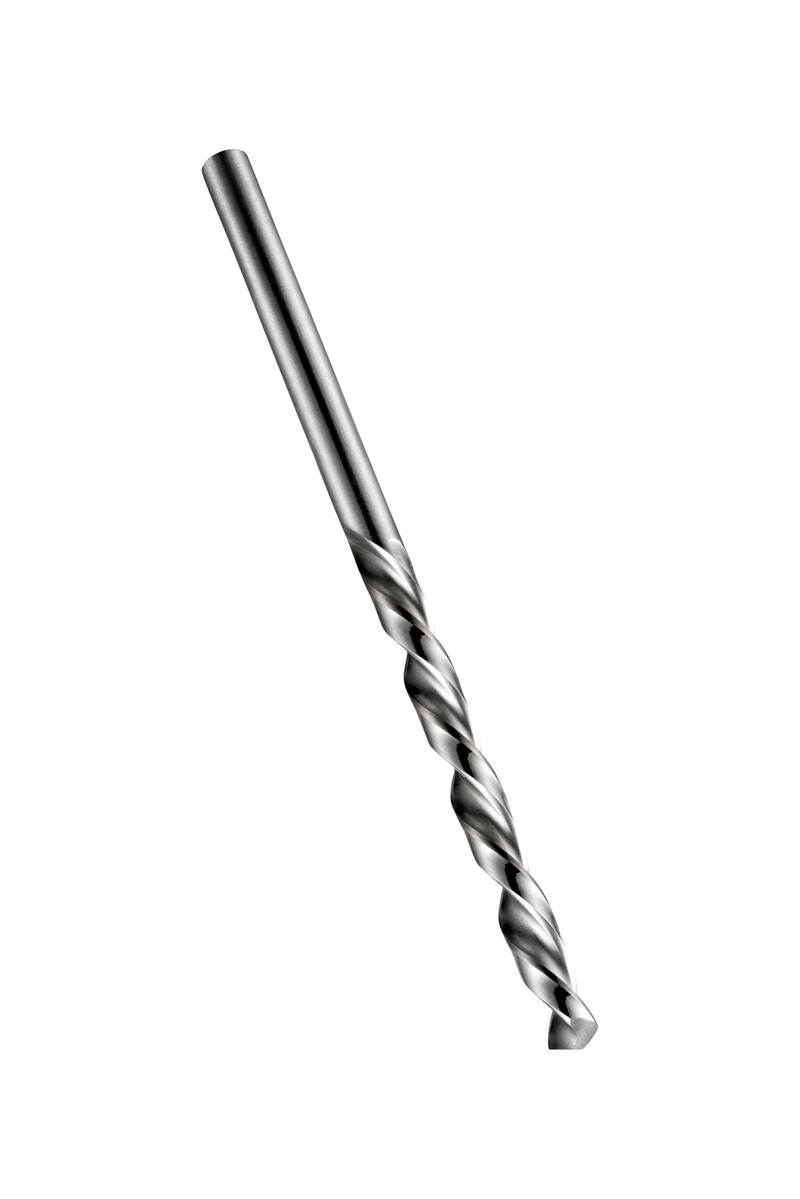

Foret gauche court à queue cylindrique, diamètre 1,4 mm avec une longueur totale de 40 mm et une longueur de coupe de 18 mm selon la norme DIN 338, angle de pointe de 118°, en HSS poli brillant pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1011.4
GradeLumineux
Product Number5968037
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.0551"
Cutting Diameter — mm (DC)1.4 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0551"
Connection Dia. — mm (DCON)1.4 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number2711
EAN7320760002711
File Type Download
A1011.4 — 3D Model STP Download
A1011.4 — Line Drawing PDF Download
