A1011.6
A1011.6
A1011.6
A1011.6

A1011.6

UGC DOR5968047
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.87 CAD - $8.87 CAD
$8.87 CAD
$8.87 CAD - $8.87 CAD
$8.87 CAD

Vendu en lots de : 10

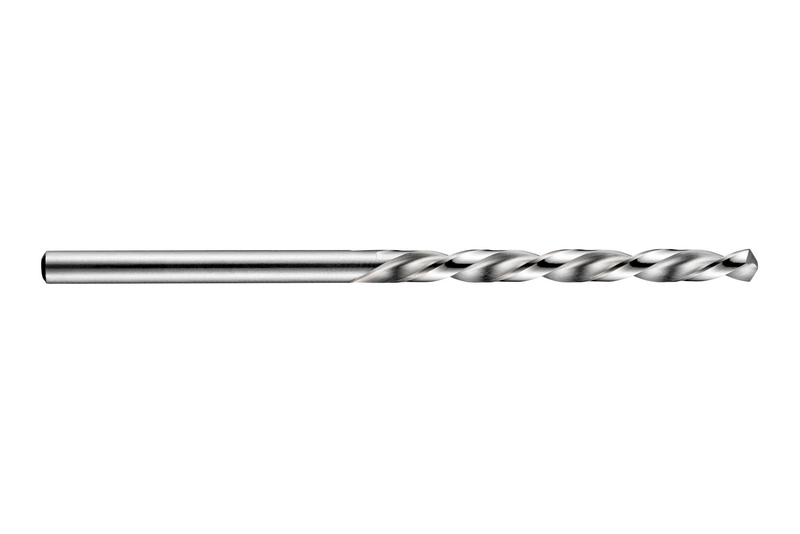

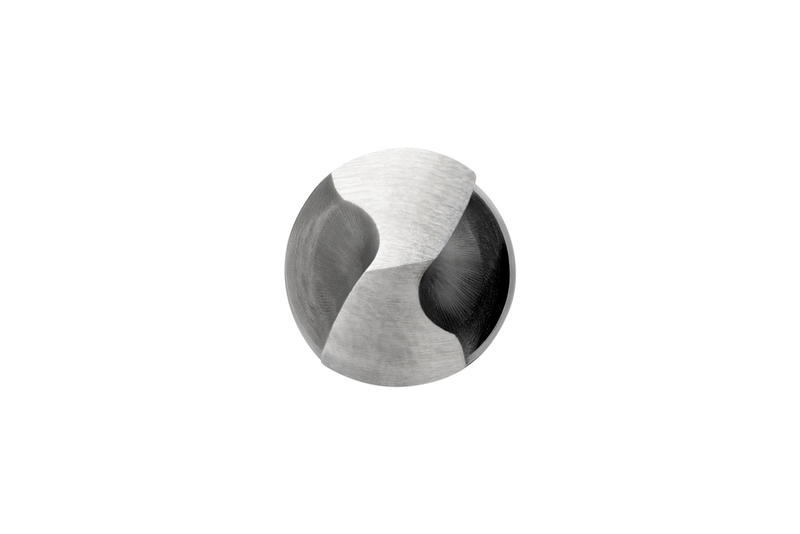

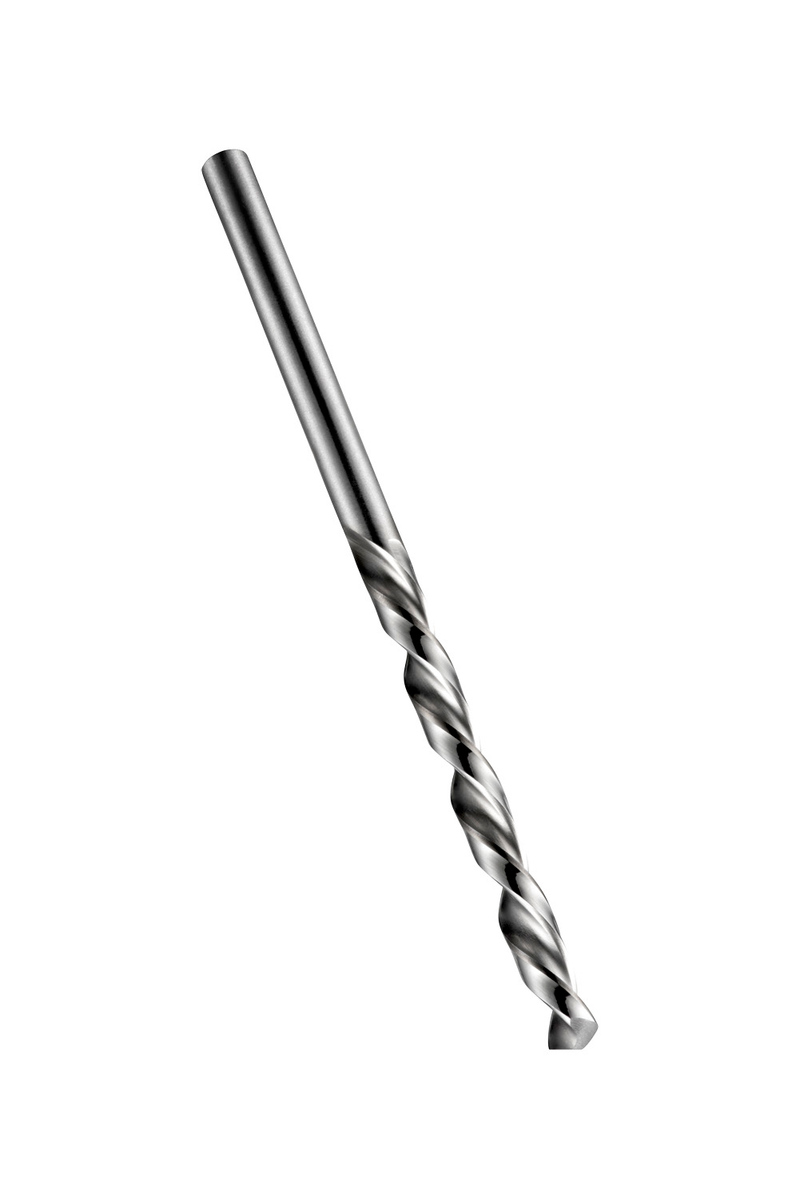

Forets courts à gauche avec queue cylindrique, diamètre 1,6 mm, longueur totale 43 mm et longueur utile 20 mm selon la norme DIN 338, angle de pointe 118°, en HSS, finition brillante pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1011.6
GradeLumineux
Product Number5968047
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.063"
Cutting Diameter — mm (DC)1.6 mm
Overall Length — in (OAL)1.6929"
Overall Length — mm (OAL)43.0 mm
Flute Length — in (LCF)0.7874"
Flute Length — mm (LCF)20.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.063"
Connection Dia. — mm (DCON)1.6 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number2735
EAN7320760002735
File Type Download
A1011.6 — 3D Model STP Download
A1011.6 — Line Drawing PDF Download
