A1011.7
A1011.7
A1011.7
A1011.7

A1011.7

UGC DOR5968052
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.83 CAD - $8.83 CAD
$8.83 CAD
$8.83 CAD - $8.83 CAD
$8.83 CAD

Vendu en lots de : 10

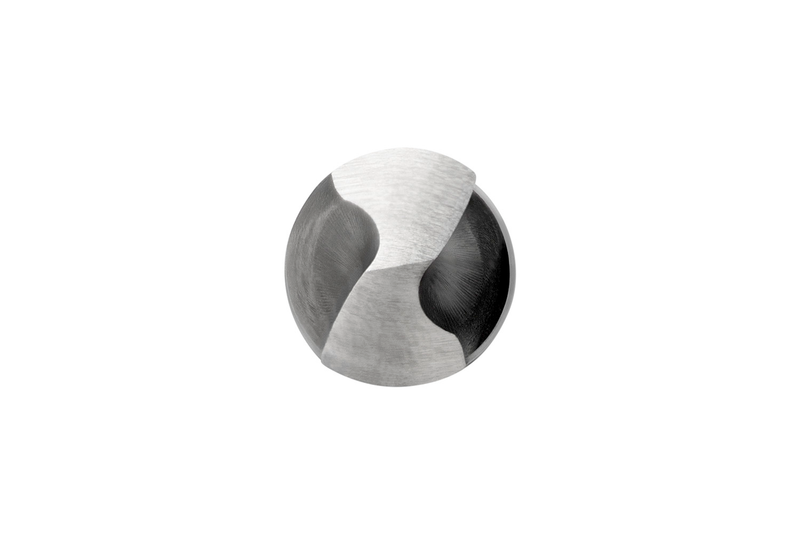

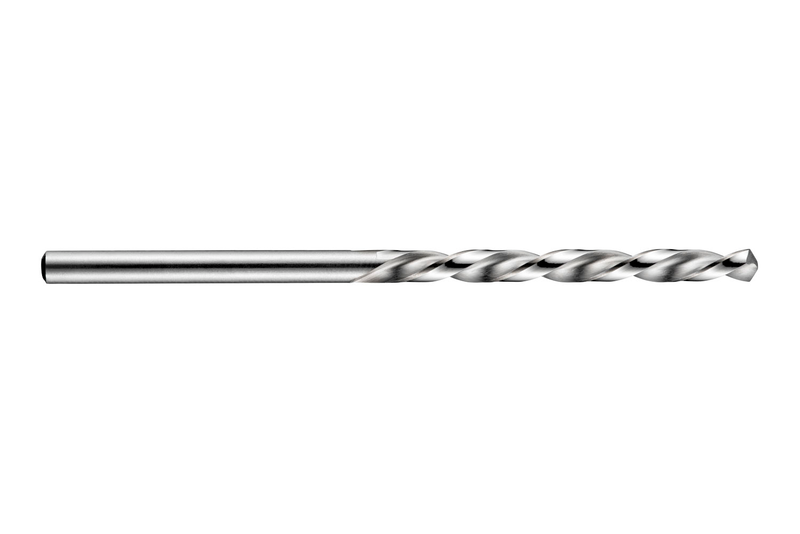

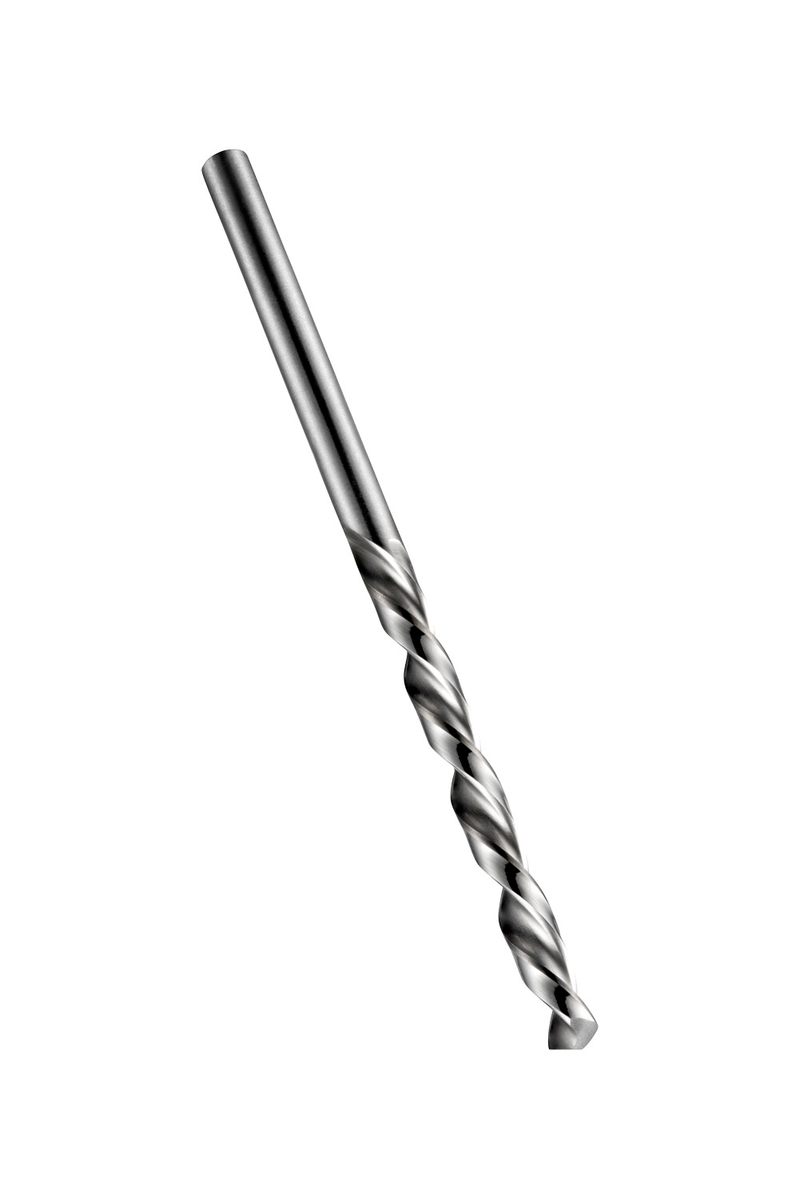

Forets courts pour emploi général, main gauche, à queue cylindrique, diamètre 1,7 mm, longueur totale 43 mm, longueur de coupe 20 mm, selon la norme DIN 338, angle de pointe 118°, en HSS, finition brillante, pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1011.7
GradeLumineux
Product Number5968052
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.0669"
Cutting Diameter — mm (DC)1.7 mm
Overall Length — in (OAL)1.6929"
Overall Length — mm (OAL)43.0 mm
Flute Length — in (LCF)0.7874"
Flute Length — mm (LCF)20.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0669"
Connection Dia. — mm (DCON)1.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number2742
EAN7320760002742
File Type Download
A1011.7 — 3D Model STP Download
A1011.7 — Line Drawing PDF Download
