UGC DOR5968067
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.31 CAD - $8.31 CAD
$8.31 CAD
$8.31 CAD - $8.31 CAD
$8.31 CAD

Vendu en lots de : 10

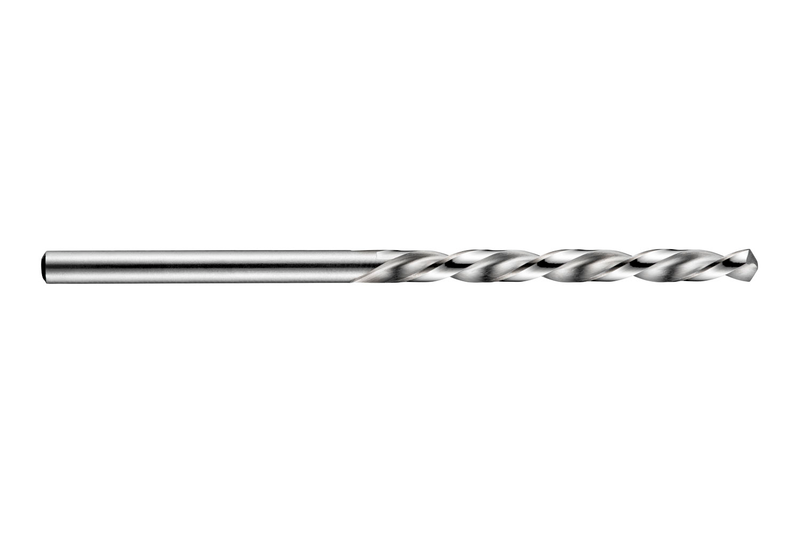

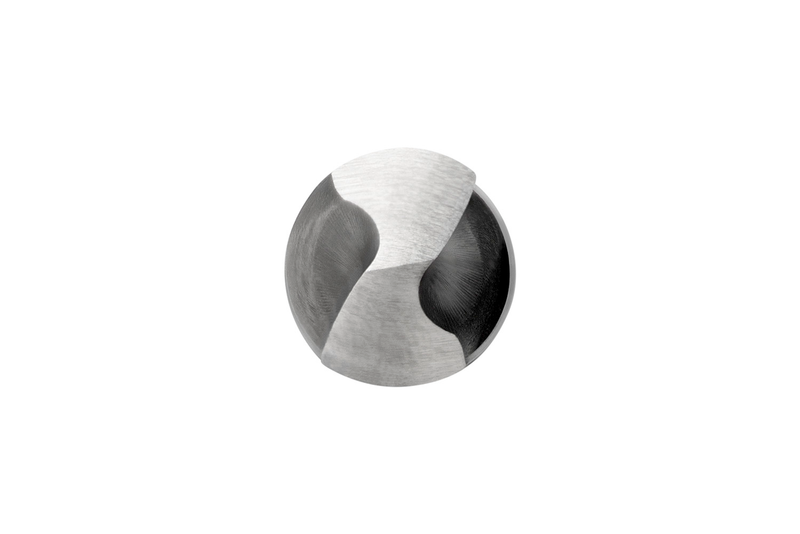

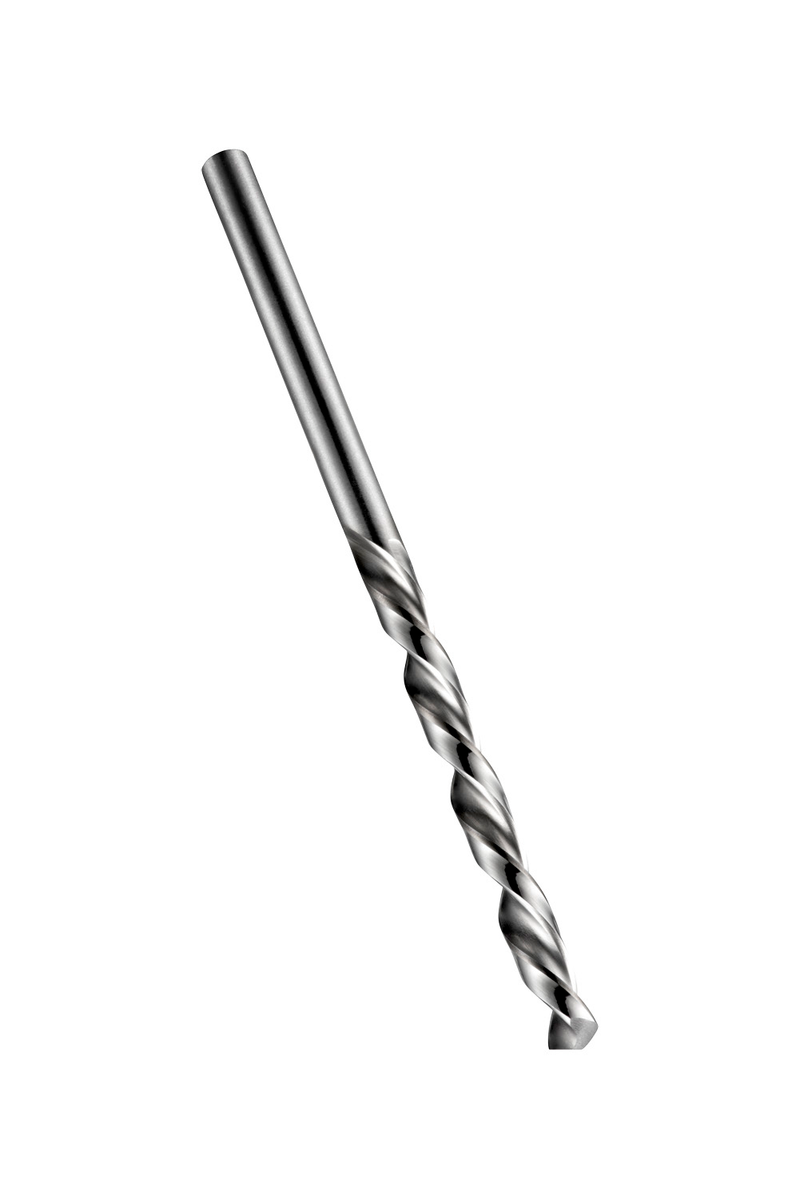

Foret jobber gauche à queue cylindrique, diamètre 1,9 mm, longueur totale 46 mm et longueur de goujure 22 mm, selon la norme DIN 338, avec un angle de pointe de 118°, en HSS avec finition brillante pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1011.9
GradeLumineux
Product Number5968067
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.0748"
Cutting Diameter — mm (DC)1.9 mm
Overall Length — in (OAL)1.811"
Overall Length — mm (OAL)46.0 mm
Flute Length — in (LCF)0.8661"
Flute Length — mm (LCF)22.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0748"
Connection Dia. — mm (DCON)1.9 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number2773
EAN7320760002773
File Type Download
A1011.9 — 3D Model STP Download
A1011.9 — Line Drawing PDF Download
