UGC DOR5968072
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.07 CAD - $26.07 CAD
$26.07 CAD
$26.07 CAD - $26.07 CAD
$26.07 CAD

Vendu en lots de : 10

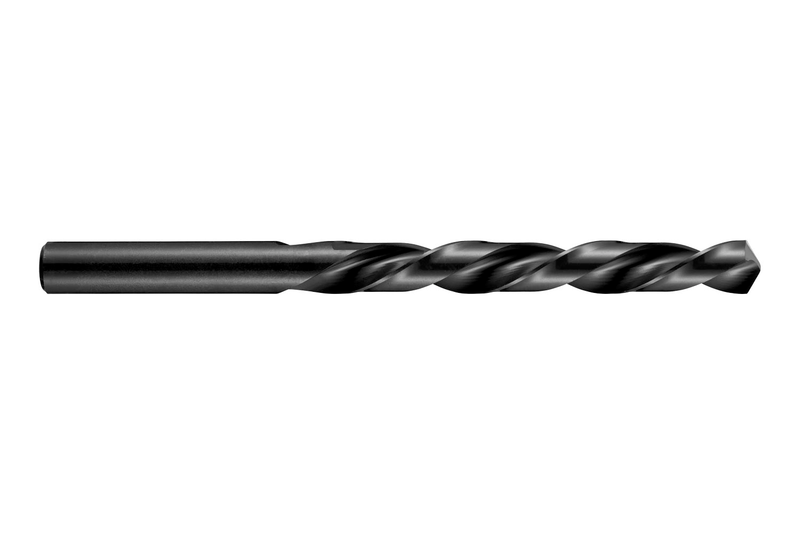

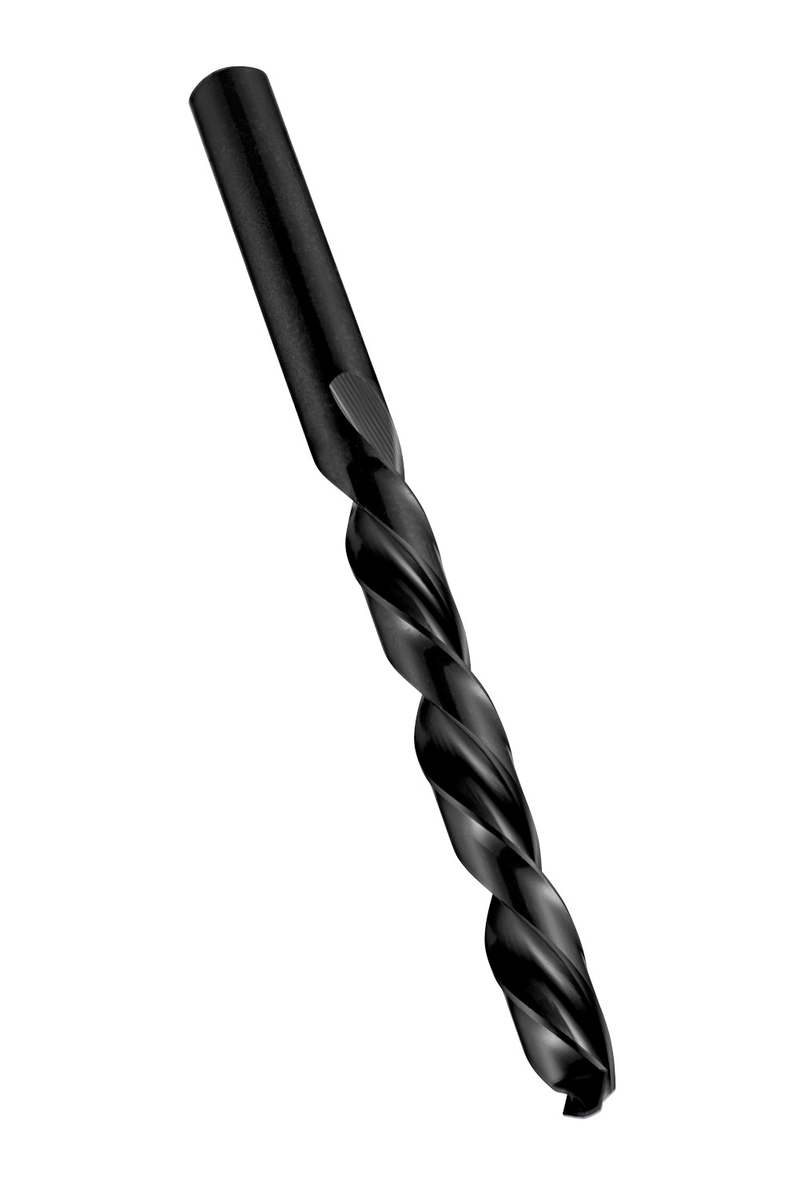

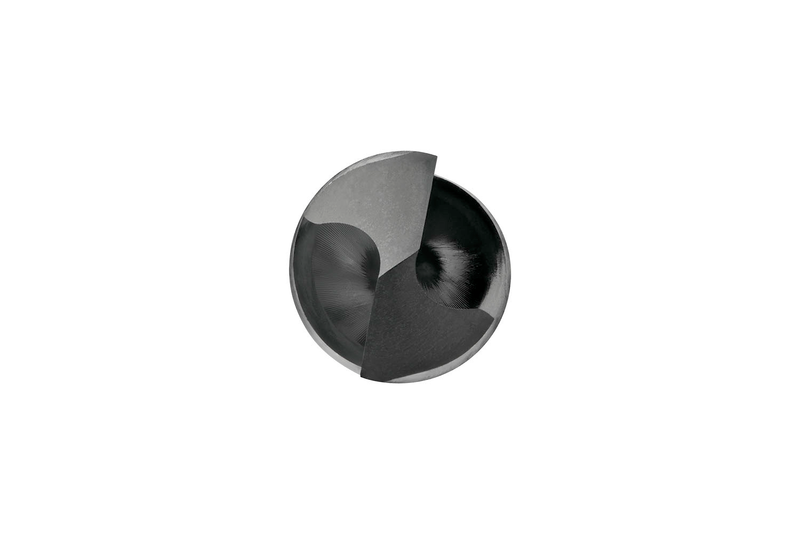

Foret hélicoïdal gauche de longueur normale à queue cylindrique, diamètre 10 mm, longueur totale 133 mm et longueur de coupe 87 mm selon la norme DIN 338, angle de pointe 118°, en acier rapide (HSS) avec finition revenu vapeur pour le perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A10110.0
GradeTrempé à la vapeur
Product Number5968072
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Flute Length — in (LCF)3.4252"
Flute Length — mm (LCF)87.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number2780
EAN7320760002780
File Type Download
A10110.0 — 3D Model STP Download
A10110.0 — Line Drawing PDF Download
