UGC DOR5968086
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$40.11 CAD - $40.11 CAD
$40.11 CAD
$40.11 CAD - $40.11 CAD
$40.11 CAD

Vendu en lots de : 5

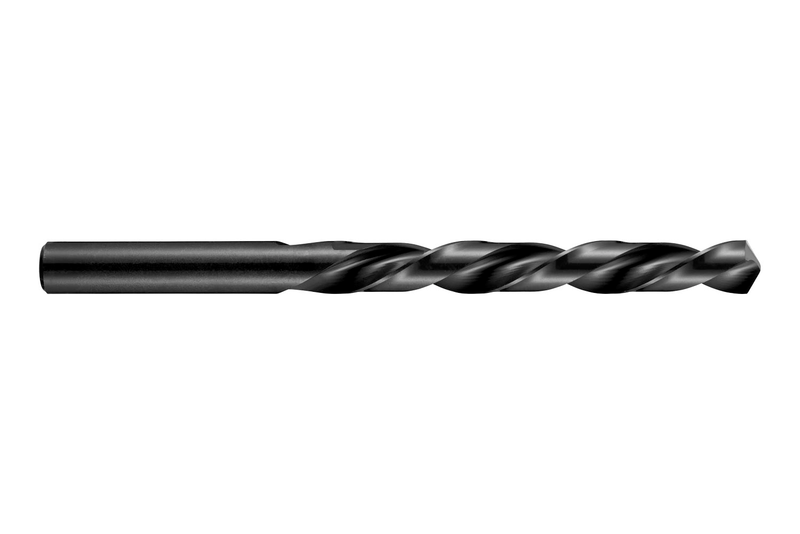

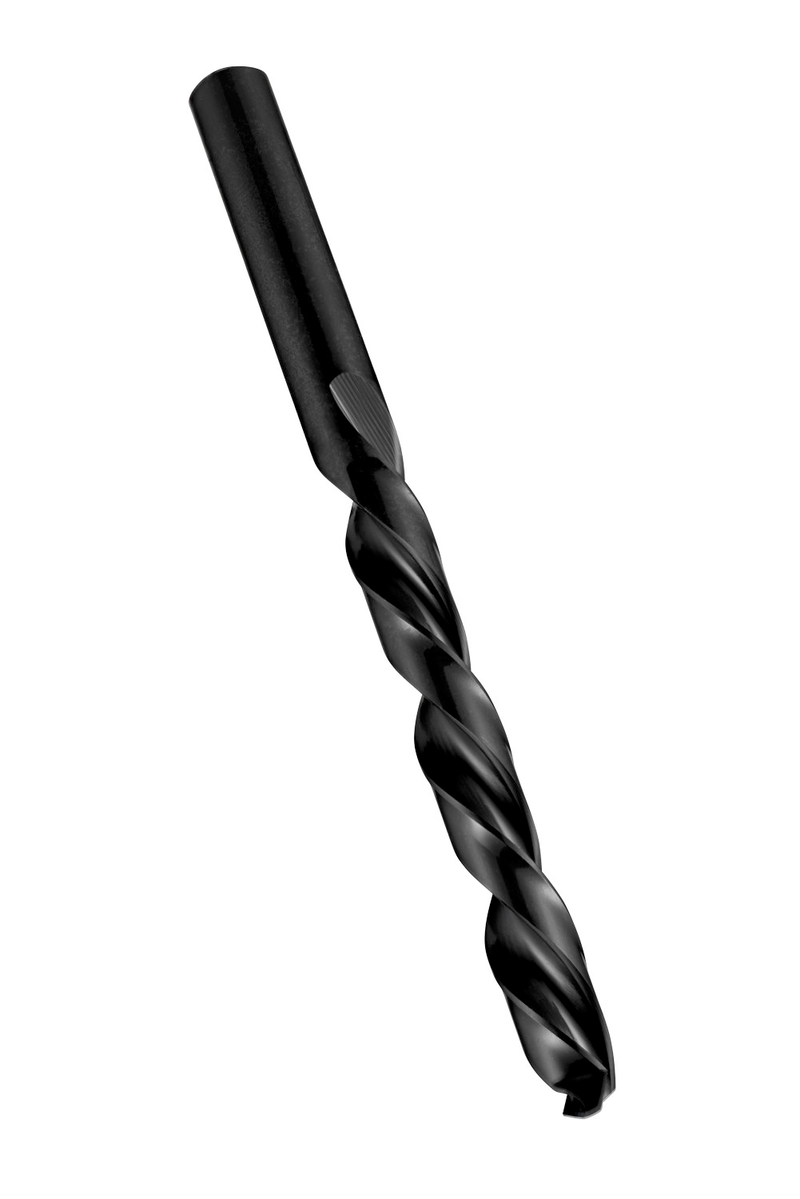

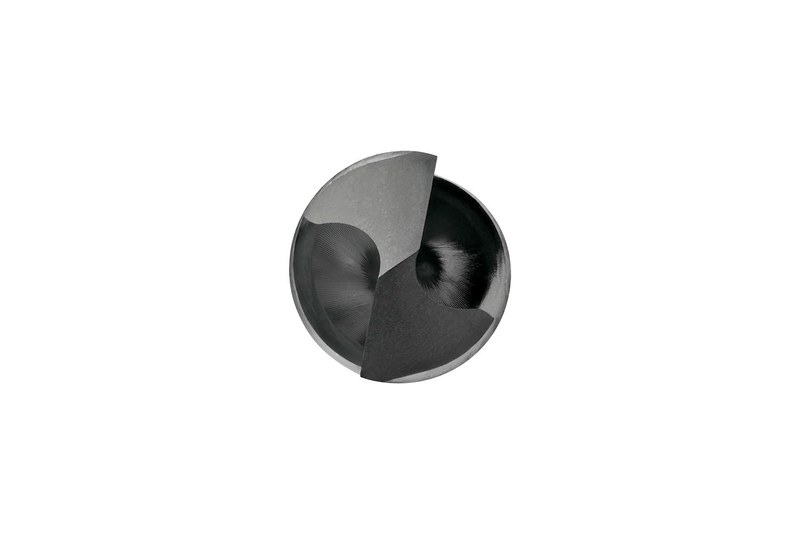

Foret hélicoïdal gauche de longueur standard avec queue cylindrique, diamètre 12mm, longueur totale 151mm et longueur de coupe 101mm selon la norme DIN 338, angle de pointe 118°, en HSS avec finition trempée vapeur pour un perçage à 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A10112.0
GradeTrempé à la vapeur
Product Number5968086
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)5.9449"
Overall Length — mm (OAL)151.0 mm
Flute Length — in (LCF)3.9764"
Flute Length — mm (LCF)101.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number2797
EAN7320760002797
File Type Download
A10112.0 — 3D Model STP Download
A10112.0 — Line Drawing PDF Download
