A1012.7
A1012.7
A1012.7
A1012.7

A1012.7

UGC DOR5968093
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.23 CAD - $8.23 CAD
$8.23 CAD
$8.23 CAD - $8.23 CAD
$8.23 CAD

Vendu en lots de : 10

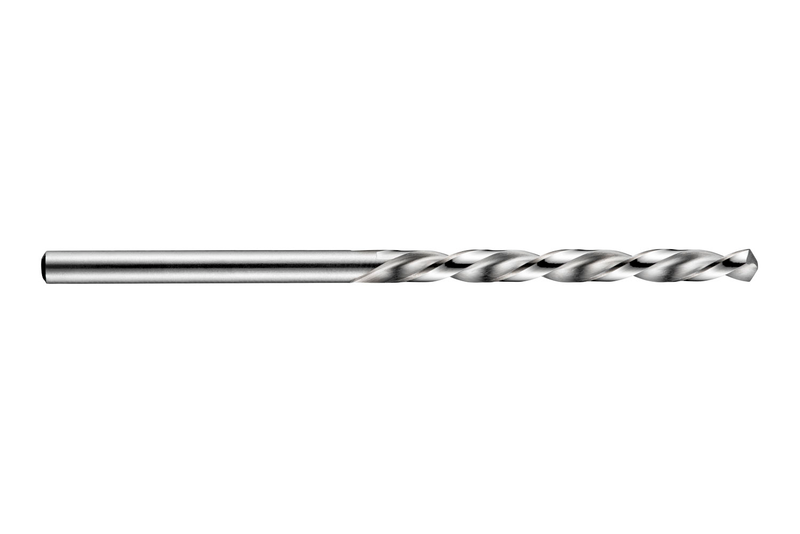

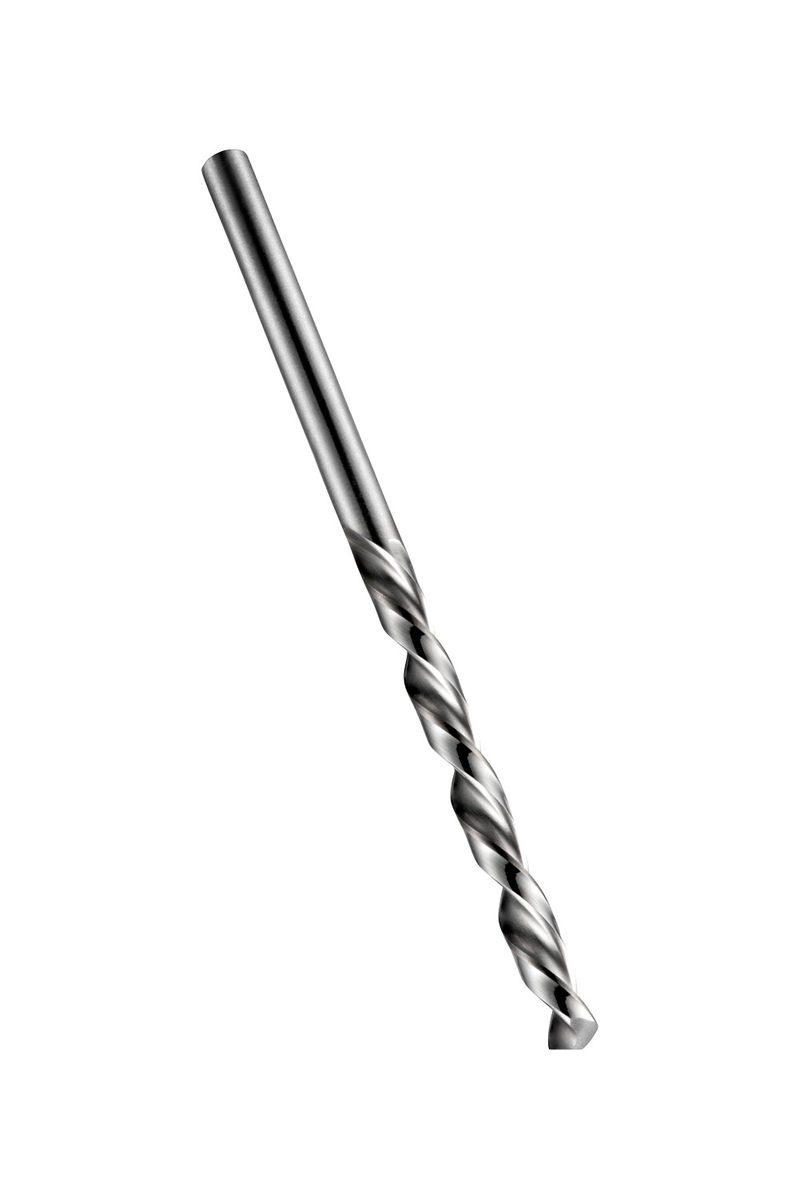

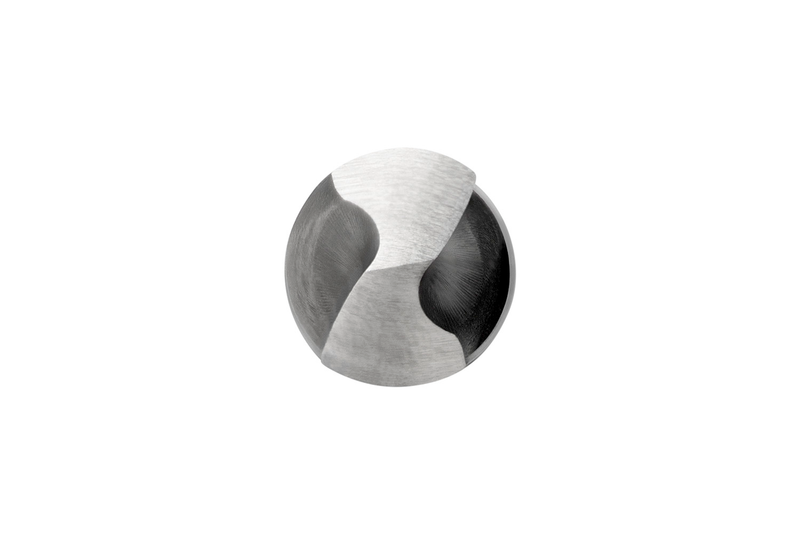

Foret jobber gauche à queue cylindrique, diamètre 2,7 mm avec une longueur totale de 61 mm et une longueur de coupe de 33 mm selon la norme DIN 338 avec un angle de pointe de 118°, en HSS avec finition brillante pour le perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1012.7
GradeLumineux
Product Number5968093
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.1063"
Cutting Diameter — mm (DC)2.7 mm
Overall Length — in (OAL)2.4016"
Overall Length — mm (OAL)61.0 mm
Flute Length — in (LCF)1.2992"
Flute Length — mm (LCF)33.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1063"
Connection Dia. — mm (DCON)2.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardDIN 338
Reference Numbers
EDP Number2872
EAN7320760002872
File Type Download
A1012.7 — 3D Model STP Download
A1012.7 — Line Drawing PDF Download
