A1203.3
A1203.3
A1203.3

A1203.3

UGC DOR5968100
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.26 CAD - $3.26 CAD
$3.26 CAD
$3.26 CAD - $3.26 CAD
$3.26 CAD

Vendu en lots de : 10

Foret étagé à queue cylindrique, diamètre 3,3 mm avec une longueur totale de 49 mm et une longueur de coupe de 18 mm selon la norme DIN 1897 avec pointe auto-centrante de 135°, HSS avec finition trempée à la vapeur pour un perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1203.3
GradeTrempé à la vapeur
Product Number5968100
Product FamilyA120

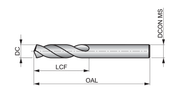

Dimensions
Cutting Diameter — in (DC)0.1299"
Cutting Diameter — mm (DC)3.3 mm
Overall Length — in (OAL)1.9291"
Overall Length — mm (OAL)49.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1299"
Connection Dia. — mm (DCON)3.3 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number17302
EAN7320760017302
File Type Download
A1203.3 — 3D Model STP Download
A1203.3 — Line Drawing PDF Download
