A1176.3
A1176.3
A1176.3
A1176.3

A1176.3

UGC DOR5968109
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.43 CAD - $10.43 CAD
$10.43 CAD
$10.43 CAD - $10.43 CAD
$10.43 CAD

Vendu en lots de : 10

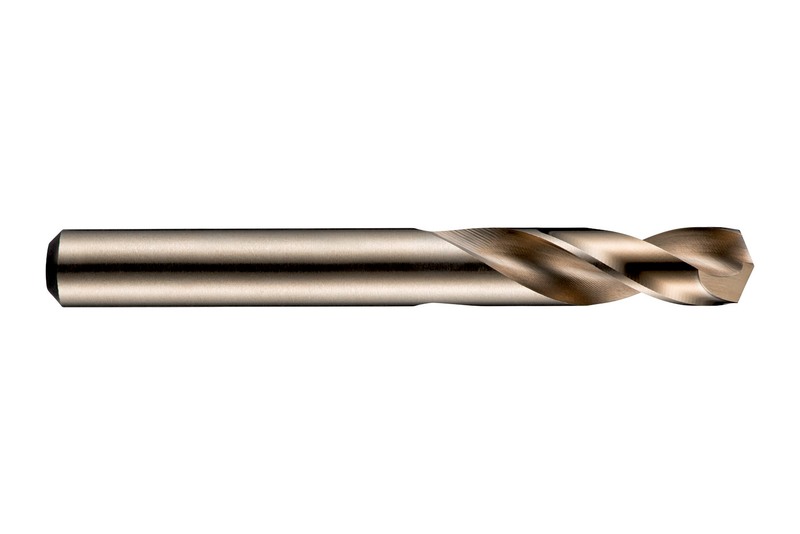

Foret court à queue cylindrique, diamètre 6,3mm, longueur totale 70mm et longueur utile 31mm selon la norme DIN 1897 avec pointe 135° auto-centrante, HSS-E cobalté avec finition bronze pour le perçage 2.5xD sans débourrage dans l'acier inoxydable et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1176.3
GradeBronze
Product Number5968109
Product FamilyA117
Dimensions
Cutting Diameter — in (DC)0.248"
Cutting Diameter — mm (DC)6.3 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Flute Length — in (LCF)1.2205"
Flute Length — mm (LCF)31.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.248"
Connection Dia. — mm (DCON)6.3 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number15650
EAN7320760015650
File Type Download
A1176.3 — 3D Model STP Download
A1176.3 — Line Drawing PDF Download
