UGC DOR5968128
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.17 CAD - $14.17 CAD
$14.17 CAD
$14.17 CAD - $14.17 CAD
$14.17 CAD

Vendu en lots de : 10

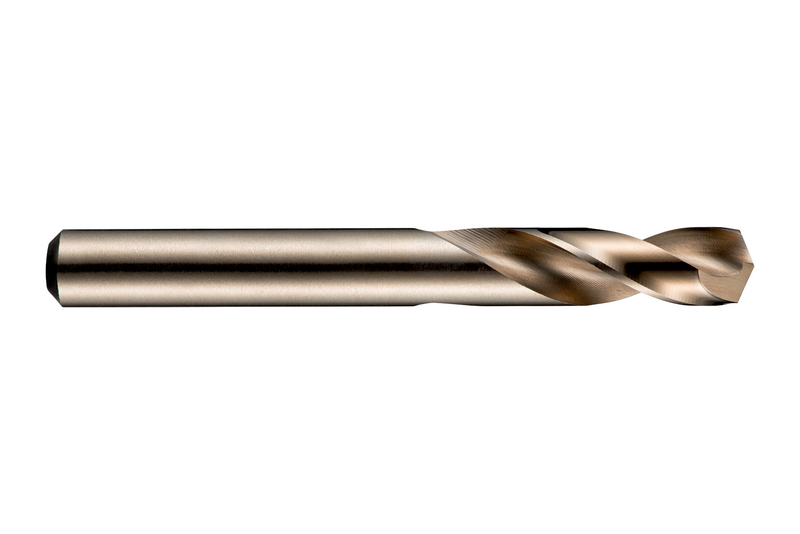

Foret court à queue cylindrique, diamètre de 6,9 mm avec une longueur totale de 74 mm et une longueur de coupe de 34 mm selon la norme DIN 1897 avec un affûtage en croix de 135°, en HSS-E au cobalt avec finition bronze pour un perçage de 2,5xD sans débourrage dans l'acier inoxydable et le superalliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1176.9
GradeBronze
Product Number5968128
Product FamilyA117
Dimensions
Cutting Diameter — in (DC)0.2717"
Cutting Diameter — mm (DC)6.9 mm
Overall Length — in (OAL)2.9134"
Overall Length — mm (OAL)74.0 mm
Flute Length — in (LCF)1.3386"
Flute Length — mm (LCF)34.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.2717"
Connection Dia. — mm (DCON)6.9 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number15711
EAN7320760015711
File Type Download
A1176.9 — 3D Model STP Download
A1176.9 — Line Drawing PDF Download
