UGC DOR5968185
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.37 CAD - $7.37 CAD
$7.37 CAD
$7.37 CAD - $7.37 CAD
$7.37 CAD

Vendu en lots de : 10

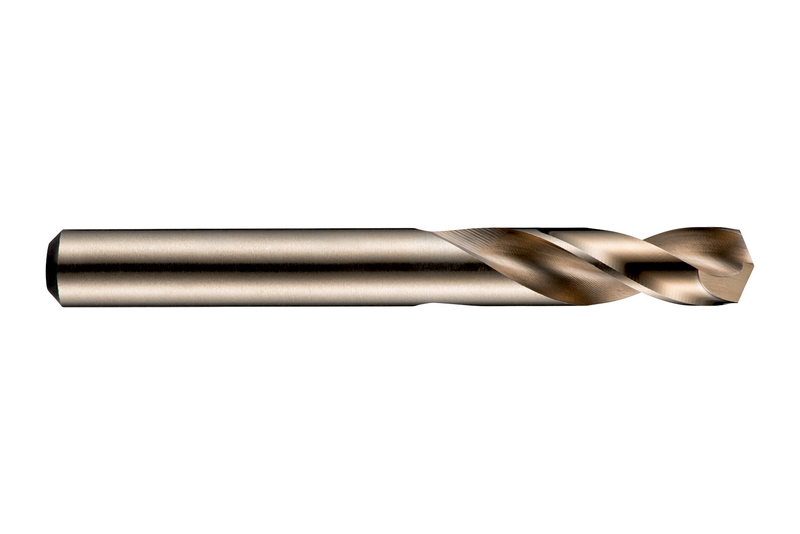

Foret court à queue cylindrique, diamètre 4,7 mm, longueur totale 58 mm et longueur de goujure 24 mm, selon la norme DIN 1897, avec pointe en croix à 135°, en HSS-E au cobalt avec finition bronze pour le perçage de 2,5xD sans débourrage dans l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)A1174,7
Product Name (ISO)A1174.7
GradeBronze
Product Number5968185
Product FamilyA117
Dimensions
Cutting Diameter — in (DC)0.185"
Cutting Diameter — mm (DC)4.7 mm
Overall Length — in (OAL)2.2835"
Overall Length — mm (OAL)58.0 mm
Flute Length — in (LCF)0.9449"
Flute Length — mm (LCF)24.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.185"
Connection Dia. — mm (DCON)4.7 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number15490
EAN7320760015490
File Type Download
A1174,7 — 3D Model STP Download
A1174,7 — Line Drawing PDF Download
