UGC DOR5968202
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.17 CAD - $15.17 CAD
$15.17 CAD
$15.17 CAD - $15.17 CAD
$15.17 CAD

Vendu en lots de : 10

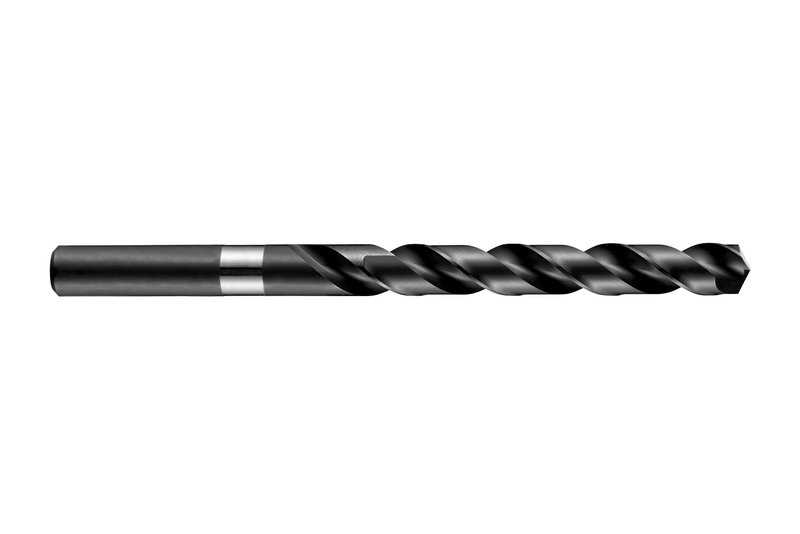

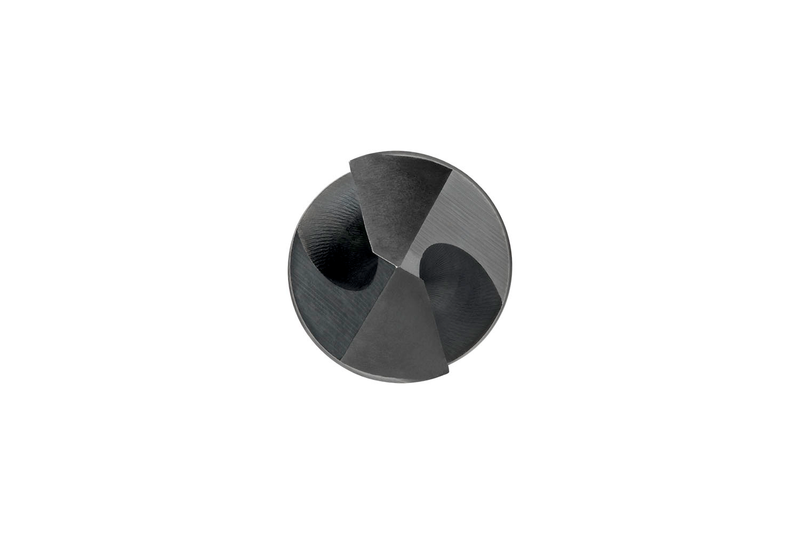

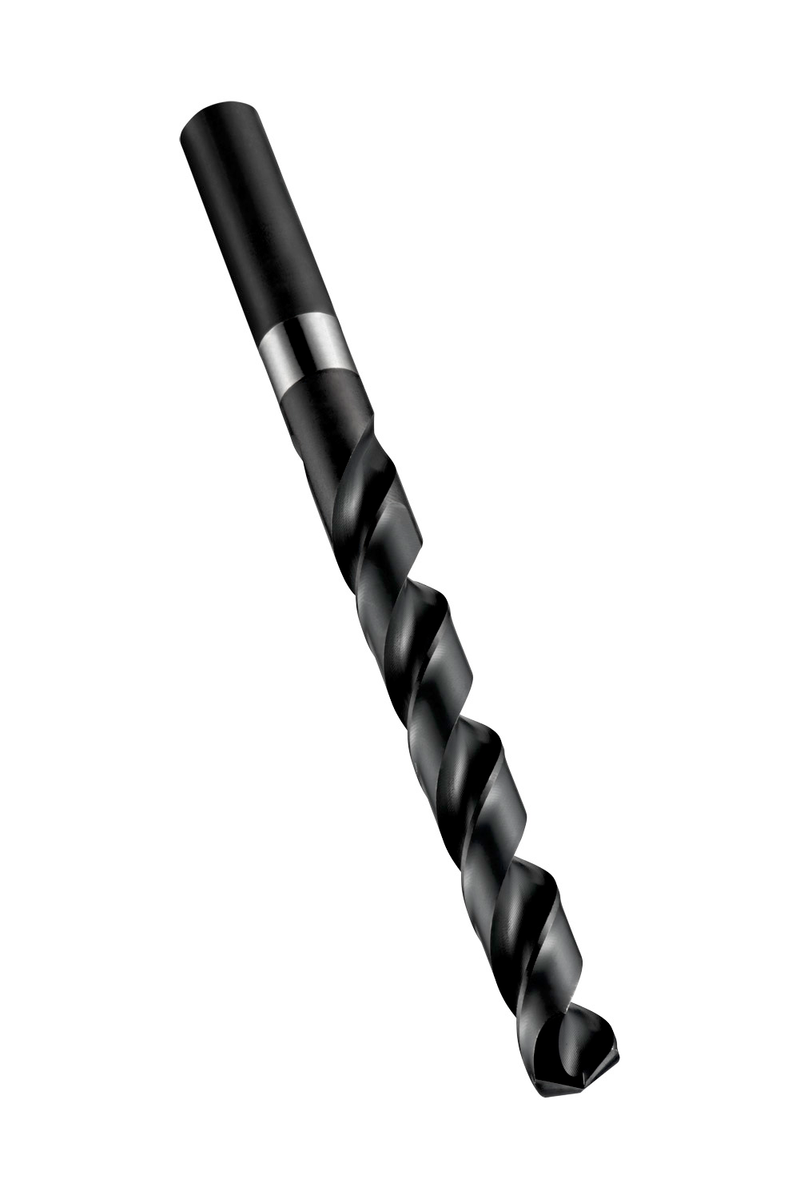

Forets courts à queue cylindrique, diamètre 8,5 mm avec une longueur totale de 117 mm et une longueur de coupe de 75 mm selon la norme DIN 338, à pointe auto-centrante de 135°, en acier rapide avec finition traitée à la vapeur et hélice rapide pour percer jusqu'à 4xD sans débourrage dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1088.5
GradeTrempé à la vapeur
Product Number5968202
Product FamilyA108
Dimensions
Cutting Diameter — in (DC)0.3346"
Cutting Diameter — mm (DC)8.5 mm
Overall Length — in (OAL)4.6063"
Overall Length — mm (OAL)117.0 mm
Flute Length — in (LCF)2.9528"
Flute Length — mm (LCF)75.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3346"
Connection Dia. — mm (DCON)8.5 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number8768
EAN7320760008768
File Type Download
A1088.5 — 3D Model STP Download
A1088.5 — Line Drawing PDF Download
