UGC DOR5968259
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.41 CAD - $18.41 CAD
$18.41 CAD
$18.41 CAD - $18.41 CAD
$18.41 CAD

Vendu en lots de : 10

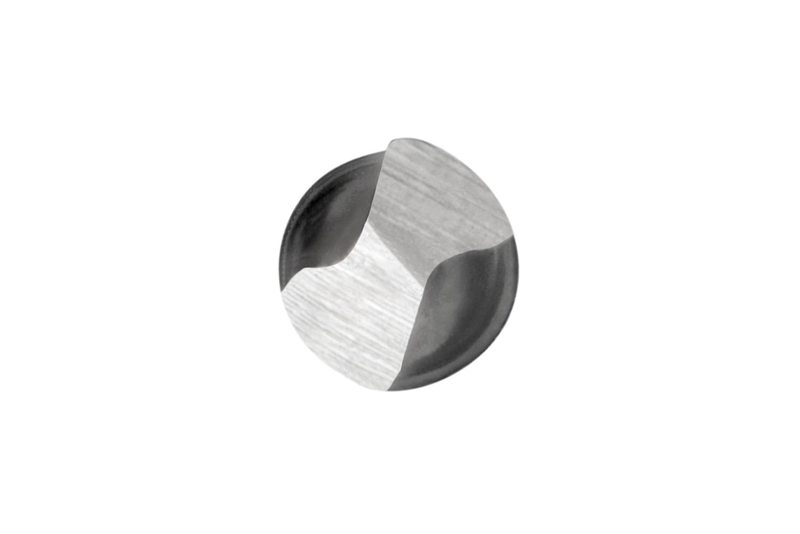

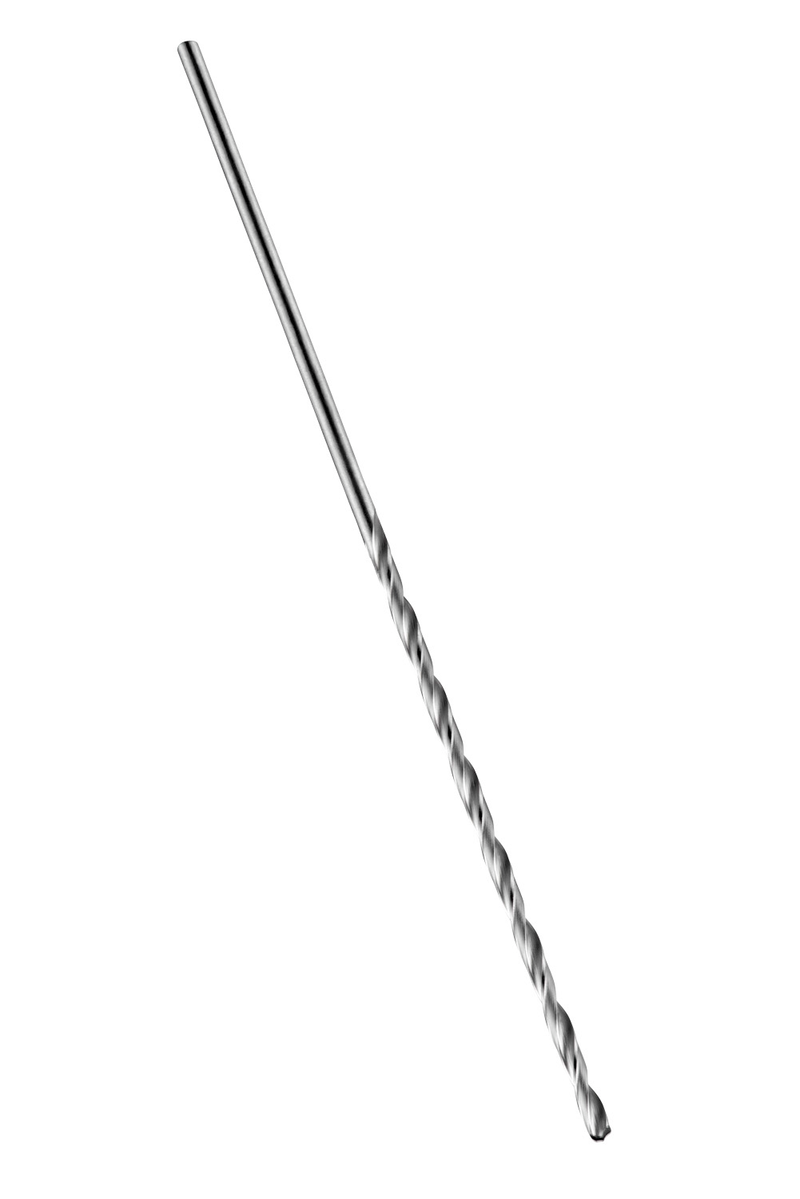

Foret série longue, à queue cylindrique, diamètre 0,5 mm, longueur totale 32 mm et longueur de coupe 12 mm, conforme à la norme DIN 340, avec un angle de pointe de 118°, en HSS avec finition brillante pour le perçage à 6xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A110.5
GradeLumineux
Product Number5968259
Product FamilyA110
Dimensions
Cutting Diameter — in (DC)0.0197"
Cutting Diameter — mm (DC)0.5 mm
Overall Length — in (OAL)1.2598"
Overall Length — mm (OAL)32.0 mm
Flute Length — in (LCF)0.4724"
Flute Length — mm (LCF)12.0 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.0197"
Connection Dia. — mm (DCON)0.5 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 340
Reference Numbers
EDP Number9888
EAN7320760009888
File Type Download
A110.5 — 3D Model STP Download
A110.5 — Line Drawing PDF Download
