A110.6
A110.6
A110.6
A110.6

A110.6

UGC DOR5968262
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.80 CAD - $21.80 CAD
$21.80 CAD
$21.80 CAD - $21.80 CAD
$21.80 CAD

Vendu en lots de : 10

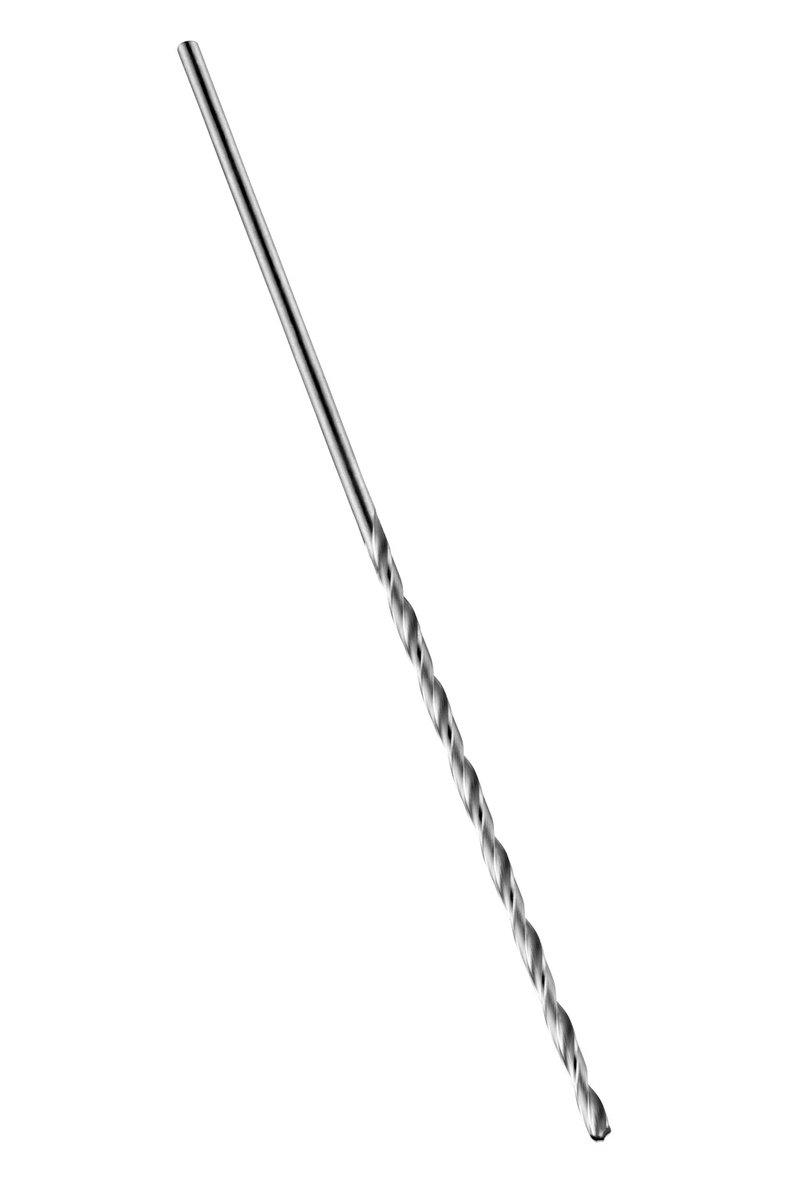

Foret série longue, queue cylindrique, diamètre 0,6mm, longueur totale 35mm et longueur utile 15mm selon la norme DIN 340, angle de pointe 118°, en acier rapide (HSS), finition brillante, pour perçage 6xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A110.6
GradeLumineux
Product Number5968262
Product FamilyA110
Dimensions
Cutting Diameter — in (DC)0.0236"
Cutting Diameter — mm (DC)0.6 mm
Overall Length — in (OAL)1.378"
Overall Length — mm (OAL)35.0 mm
Flute Length — in (LCF)0.5906"
Flute Length — mm (LCF)15.0 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.0236"
Connection Dia. — mm (DCON)0.6 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 340
Reference Numbers
EDP Number9895
EAN7320760009895
File Type Download
A110.6 — 3D Model STP Download
A110.6 — Line Drawing PDF Download
