A110.8
A110.8
A110.8
A110.8

A110.8

UGC DOR5968268
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.43 CAD - $13.43 CAD
$13.43 CAD
$13.43 CAD - $13.43 CAD
$13.43 CAD

Vendu en lots de : 10

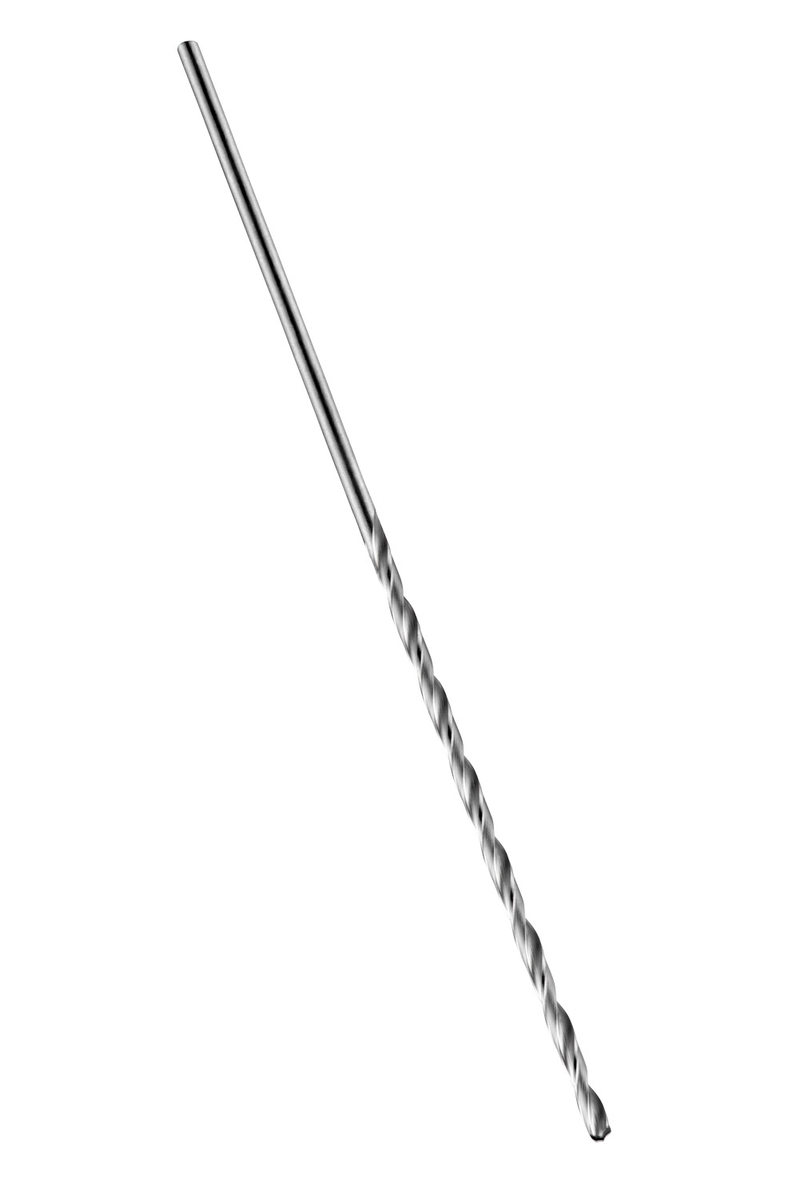

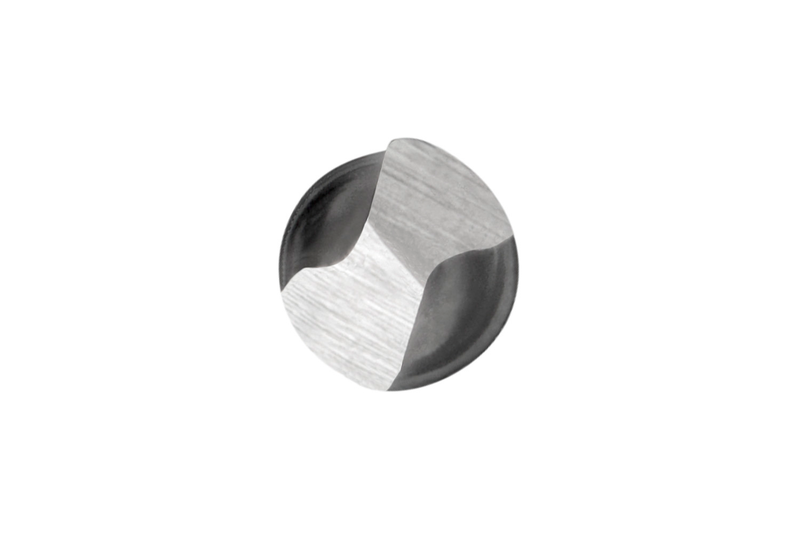

Foret série longue, queue cylindrique, diamètre 0,8mm, longueur totale 46mm, longueur de coupe 25mm, conforme à la norme DIN 340, angle de pointe 118°, HSS, finition brillante, pour perçage 6xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A110.8
GradeLumineux
Product Number5968268
Product FamilyA110
Dimensions
Cutting Diameter — in (DC)0.0315"
Cutting Diameter — mm (DC)0.8 mm
Overall Length — in (OAL)1.811"
Overall Length — mm (OAL)46.0 mm
Flute Length — in (LCF)0.9843"
Flute Length — mm (LCF)25.0 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.0315"
Connection Dia. — mm (DCON)0.8 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 340
Reference Numbers
EDP Number9918
EAN7320760009918
File Type Download
A110.8 — 3D Model STP Download
A110.8 — Line Drawing PDF Download
