UGC DOR5968271
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.69 CAD - $79.69 CAD
$79.69 CAD
$79.69 CAD - $79.69 CAD
$79.69 CAD

Vendu en lots de : 1

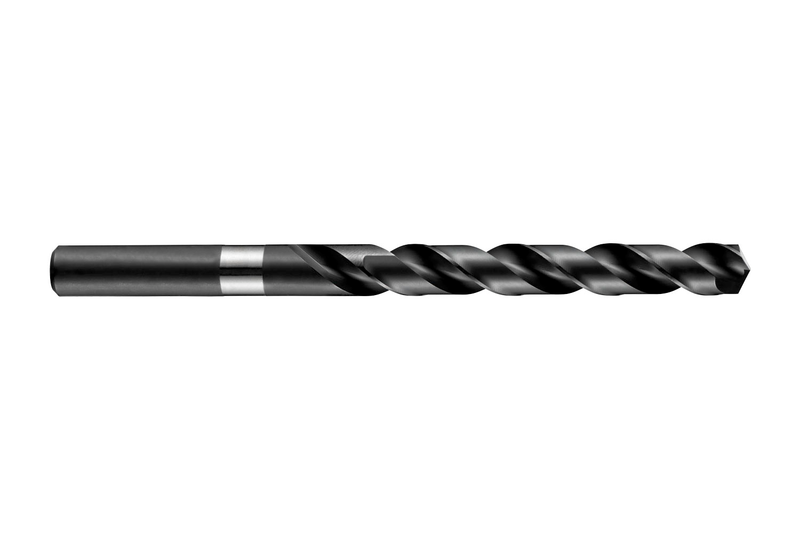

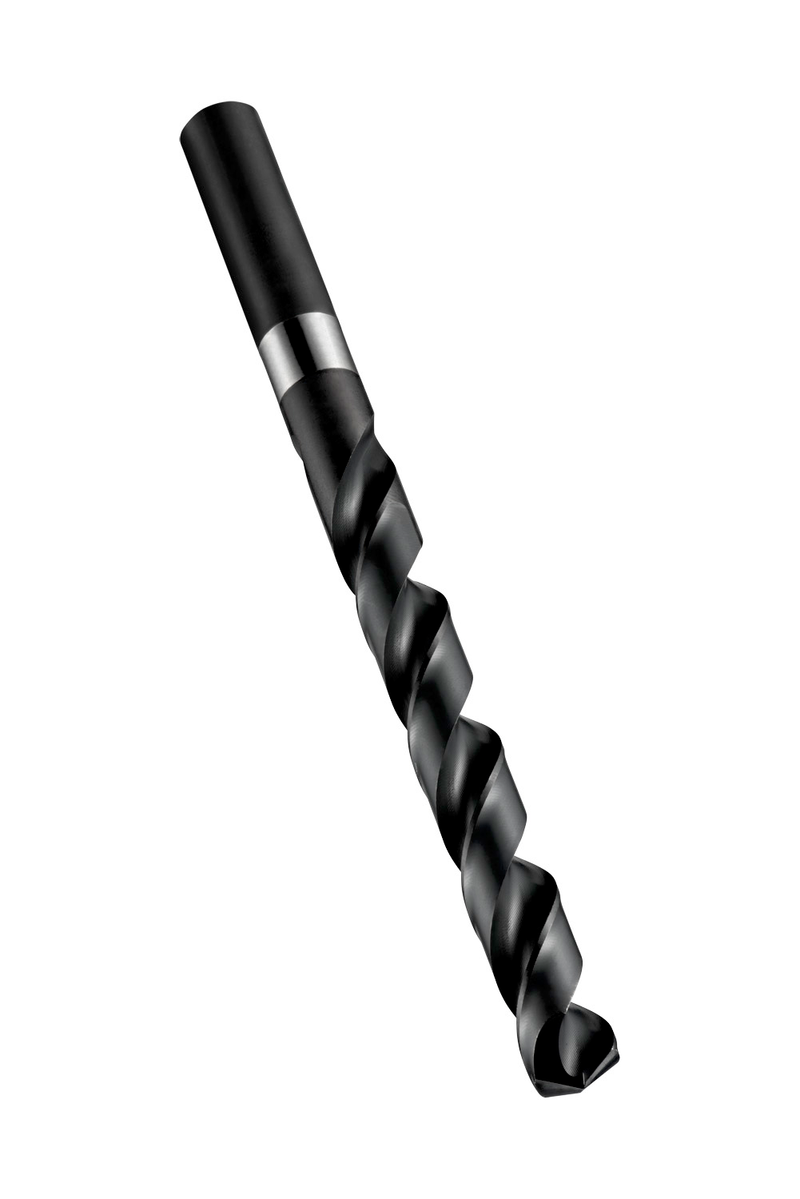

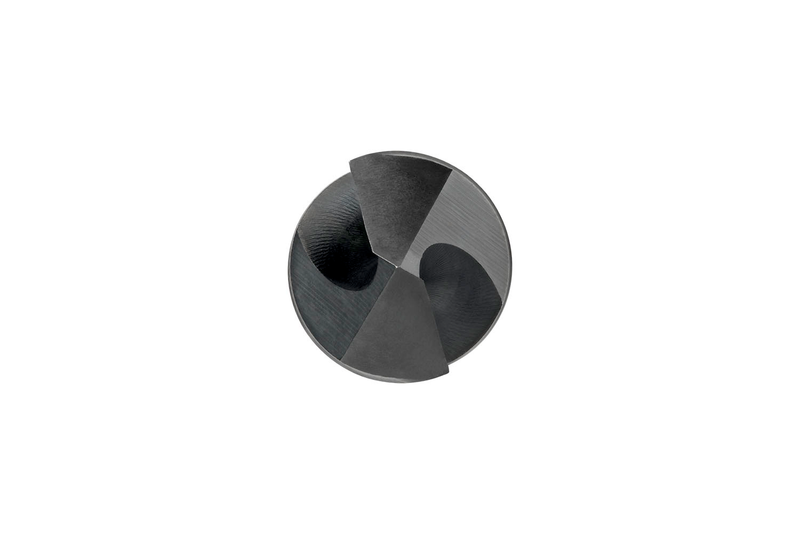

Foret court avec queue cylindrique, diamètre 14,5 mm, longueur totale 169 mm et longueur de coupe 114 mm selon la norme DIN 338, avec pointe auto-centrante à 135°, en HSS avec finition revenu vapeur et hélice rapide pour un perçage en 4xD sans débourrage dans l'inox

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A10814.5
GradeTrempé à la vapeur
Product Number5968271
Product FamilyA108
Dimensions
Cutting Diameter — in (DC)0.5709"
Cutting Diameter — mm (DC)14.5 mm
Overall Length — in (OAL)6.6535"
Overall Length — mm (OAL)169.0 mm
Flute Length — in (LCF)4.4882"
Flute Length — mm (LCF)114.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5709"
Connection Dia. — mm (DCON)14.5 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number7860
EAN7320760007860
File Type Download
A10814.5 — 3D Model STP Download
A10814.5 — Line Drawing PDF Download
