A110.9
A110.9
A110.9
A110.9

A110.9

UGC DOR5968272
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.46 CAD - $16.46 CAD
$16.46 CAD
$16.46 CAD - $16.46 CAD
$16.46 CAD

Vendu en lots de : 10

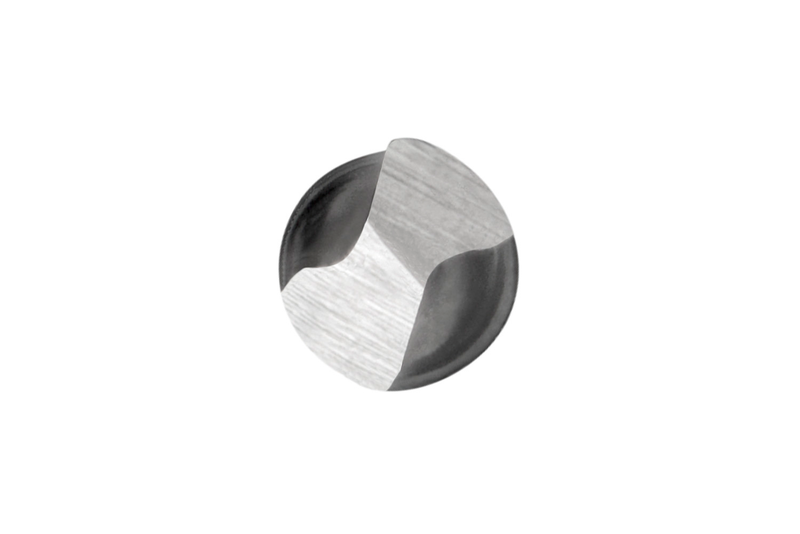

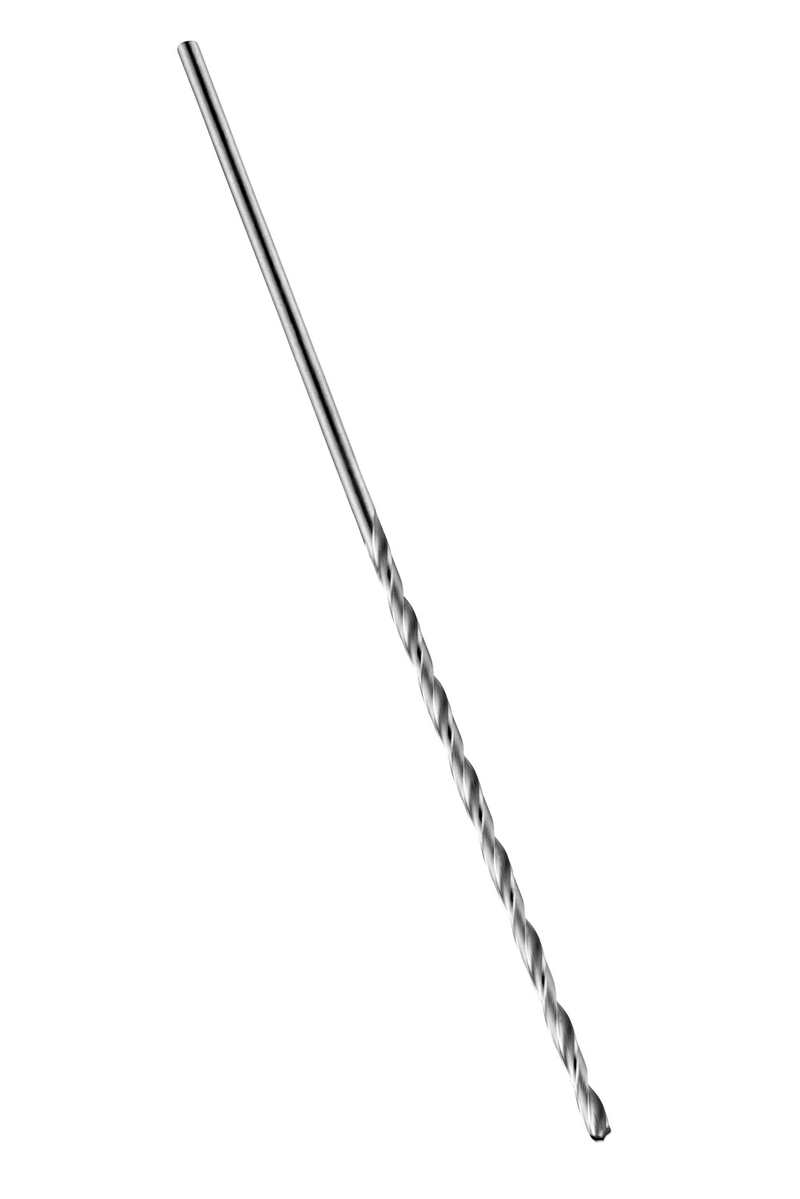

Foret long à queue cylindrique, diamètre 0,9 mm, longueur totale 51 mm et longueur de coupe 29 mm selon la norme DIN 340, avec un angle de pointe de 118°, en HSS avec finition brillante pour perçage 6xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A110.9
GradeLumineux
Product Number5968272
Product FamilyA110
Dimensions
Cutting Diameter — in (DC)0.0354"
Cutting Diameter — mm (DC)0.9 mm
Overall Length — in (OAL)2.0079"
Overall Length — mm (OAL)51.0 mm
Flute Length — in (LCF)1.1417"
Flute Length — mm (LCF)29.0 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.0354"
Connection Dia. — mm (DCON)0.9 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 340
Reference Numbers
EDP Number9925
EAN7320760009925
File Type Download
A110.9 — 3D Model STP Download
A110.9 — Line Drawing PDF Download
