UGC DOR5968290
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.97 CAD - $104.97 CAD
$104.97 CAD
$104.97 CAD - $104.97 CAD
$104.97 CAD

Vendu en lots de : 1

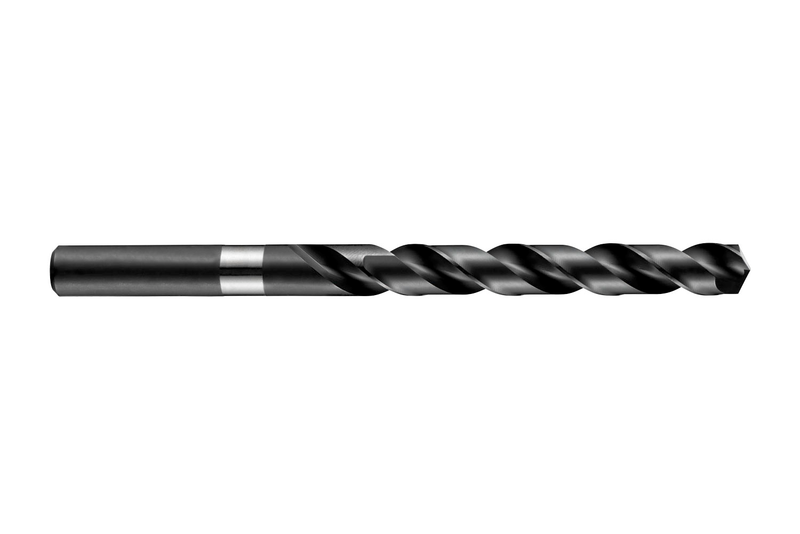

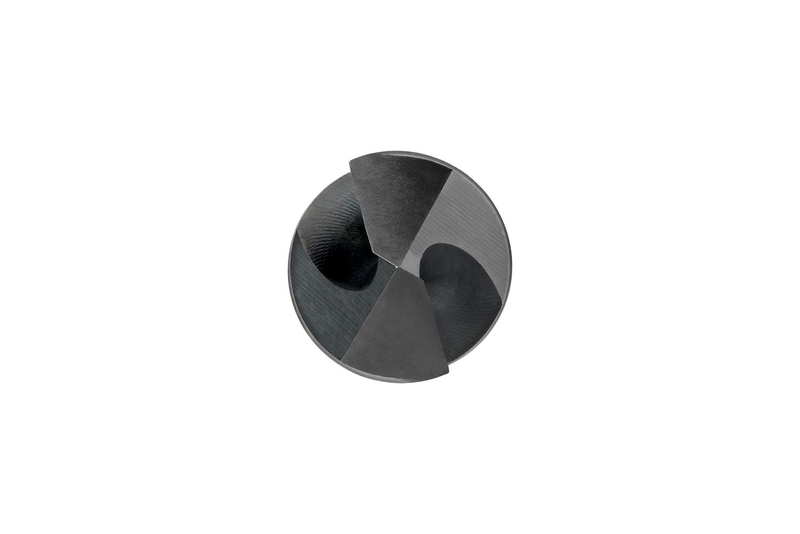

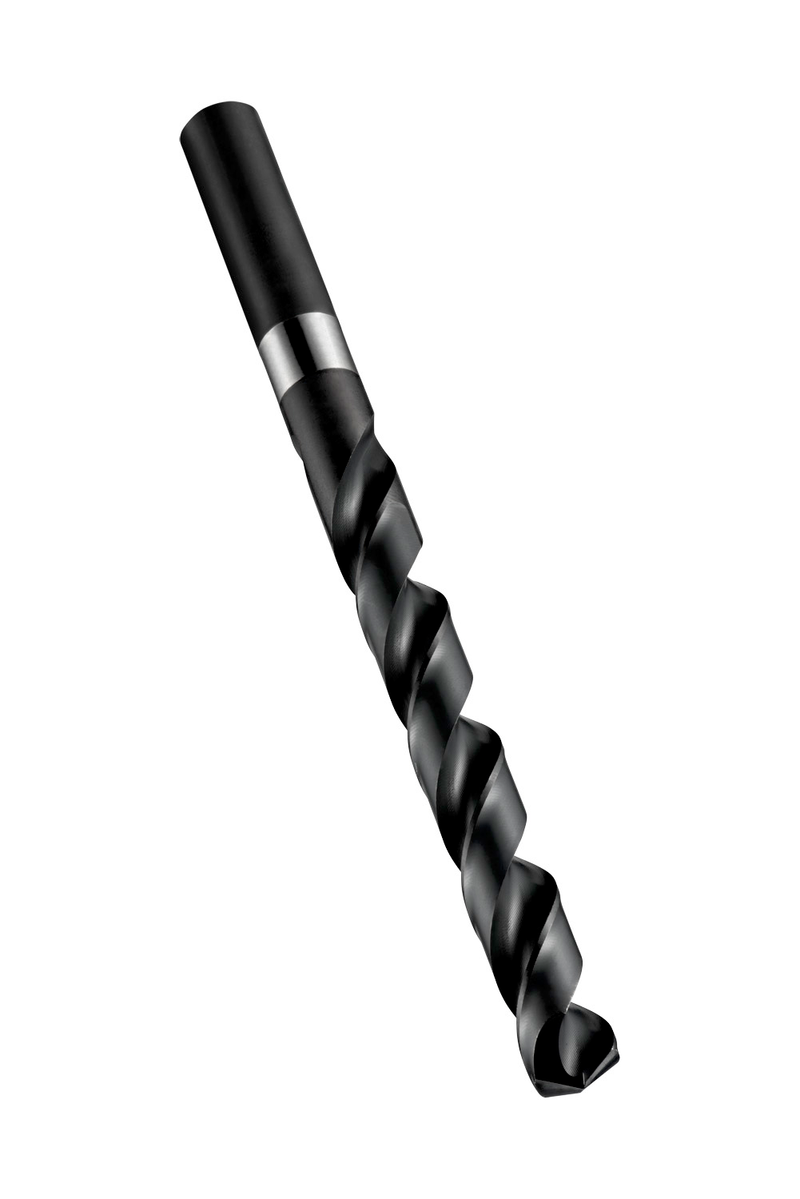

Foret hélice normale à queue cylindrique, diamètre 16 mm avec une longueur totale de 178 mm et une longueur de coupe de 120 mm selon la norme DIN 338, à pointe auto-centrante de 135°, en HSS avec finition recuite à la vapeur et hélice rapide pour un perçage 4xD sans débourrage dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A10816.0
GradeTrempé à la vapeur
Product Number5968290
Product FamilyA108
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)7.0079"
Overall Length — mm (OAL)178.0 mm
Flute Length — in (LCF)4.7244"
Flute Length — mm (LCF)120.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number7921
EAN7320760007921
File Type Download
A10816.0 — 3D Model STP Download
A10816.0 — Line Drawing PDF Download
