A1083/32
A1083/32
A1083/32
A1083/32

A1083/32

UGC DOR5968314
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.69 CAD - $2.69 CAD
$2.69 CAD
$2.69 CAD - $2.69 CAD
$2.69 CAD

Vendu en lots de : 10

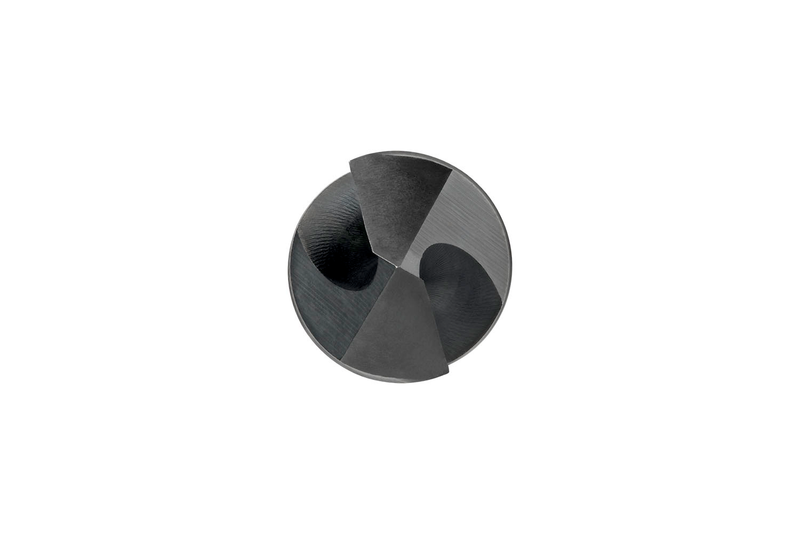

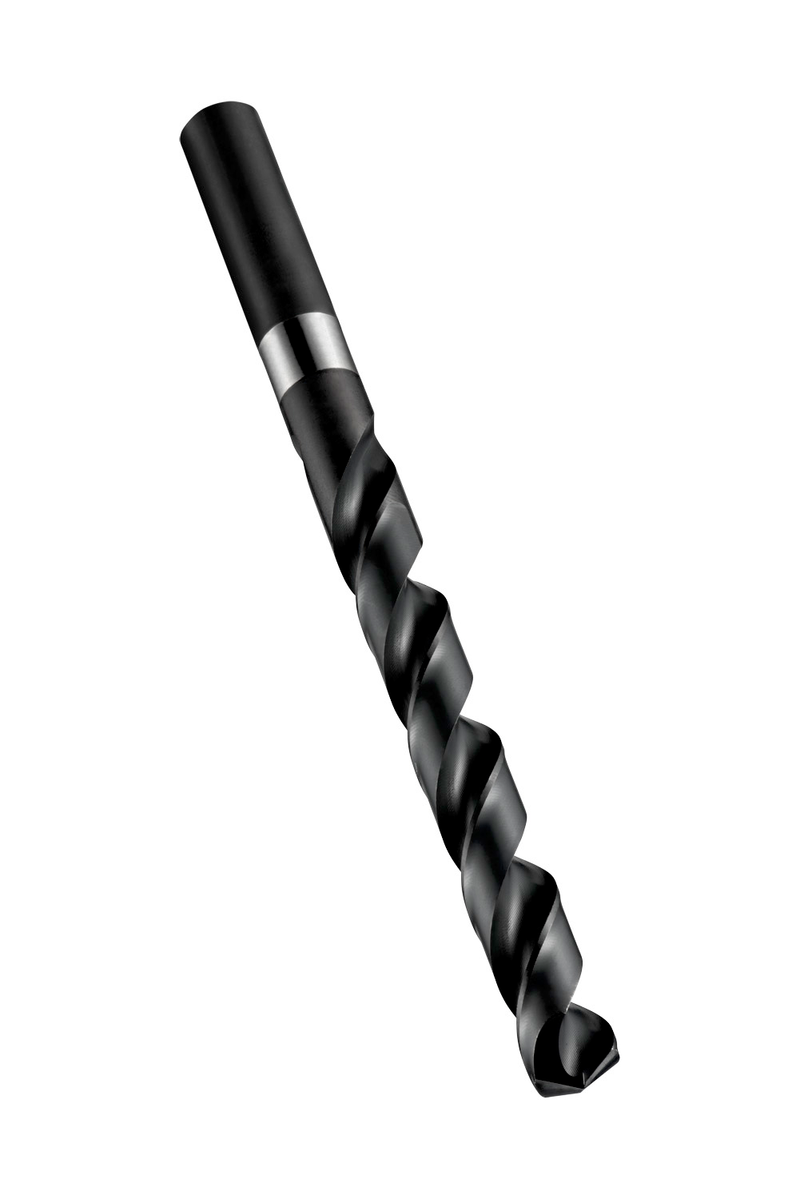

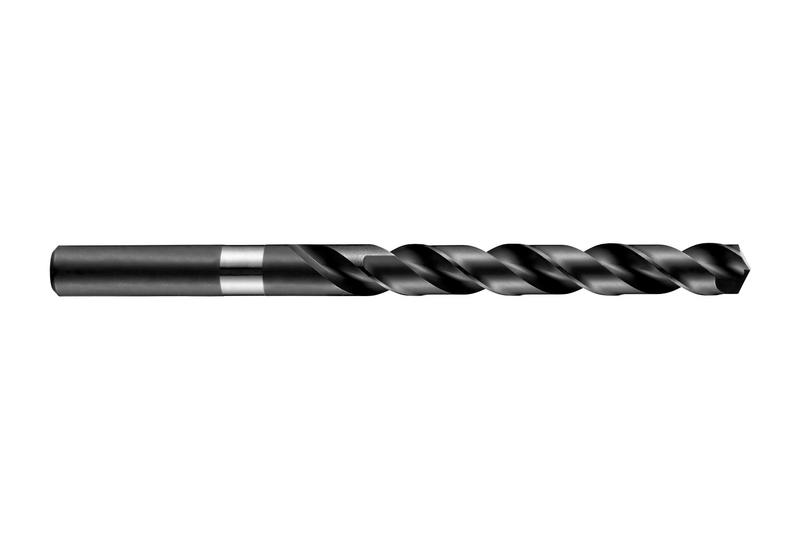

Foret hélicoïdal longueur normale à queue cylindrique, diamètre 2,38mm (3/32) d'une longueur totale de 57mm et d'une longueur utile de 30mm selon la norme DIN 338 avec une pointe à centrage automatique de 135°, en HSS avec finition nitrurée vapeur et hélice rapide pour percer jusqu'à 4xD sans débourrage dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1083/32
GradeTrempé à la vapeur
Product Number5968314
Product FamilyA108
Dimensions
Cutting Diameter — in (DC)0.0938"
Cutting Diameter — mm (DC)2.38 mm
Cutting Diameter — Fractional3/32
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Flute Length — in (LCF)1.1811"
Flute Length — mm (LCF)30.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0937"
Connection Dia. — mm (DCON)2.38 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number8232
EAN7320760008232
File Type Download
A1083/32 — 3D Model STP Download
A1083/32 — Line Drawing PDF Download
