UGC DOR5968409
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.69 CAD - $12.69 CAD
$12.69 CAD
$12.69 CAD - $12.69 CAD
$12.69 CAD

Vendu en lots de : 10

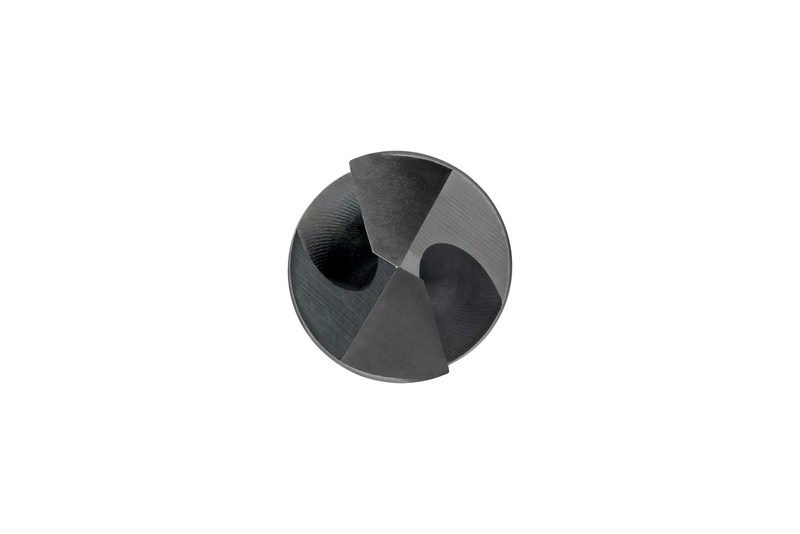

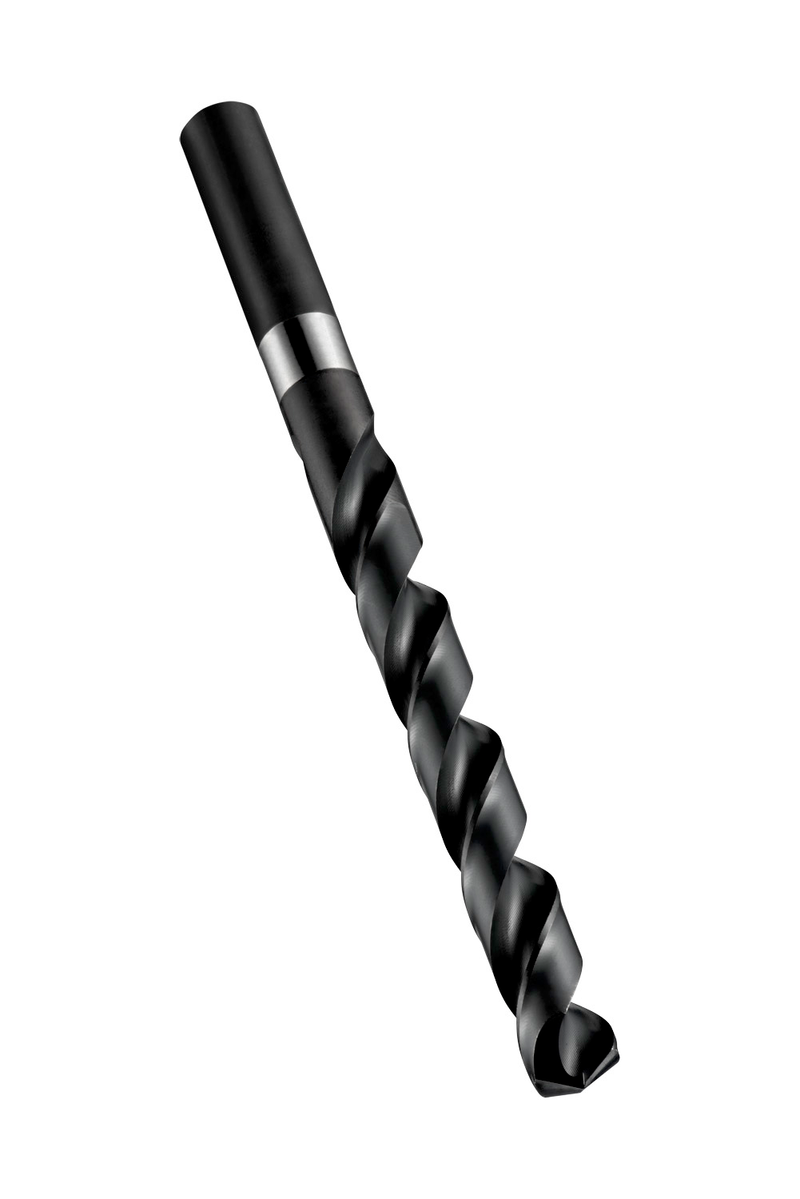

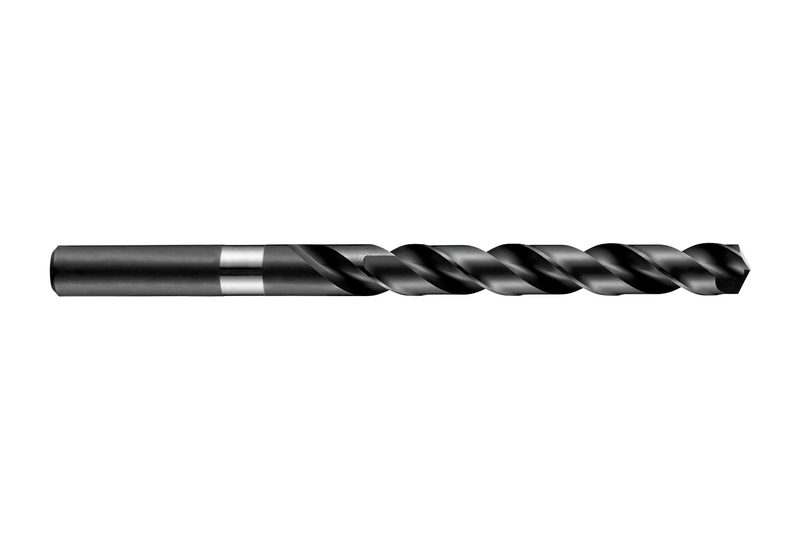

Foret série courte à queue cylindrique, diamètre 6,3 mm, longueur totale 101 mm et longueur utile 63 mm selon la norme DIN 338, pointe auto-centrante 135°, HSS finition brunie vapeur et hélice rapide pour perçage 4xD sans débourrage dans l'inox

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1086.3
GradeTrempé à la vapeur
Product Number5968409
Product FamilyA108
Dimensions
Cutting Diameter — in (DC)0.248"
Cutting Diameter — mm (DC)6.3 mm
Overall Length — in (OAL)3.9764"
Overall Length — mm (OAL)101.0 mm
Flute Length — in (LCF)2.4803"
Flute Length — mm (LCF)63.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.248"
Connection Dia. — mm (DCON)6.3 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number8515
EAN7320760008515
File Type Download
A1086.3 — 3D Model STP Download
A1086.3 — Line Drawing PDF Download
