UGC DOR5968421
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.60 CAD - $12.60 CAD
$12.60 CAD
$12.60 CAD - $12.60 CAD
$12.60 CAD

Vendu en lots de : 10

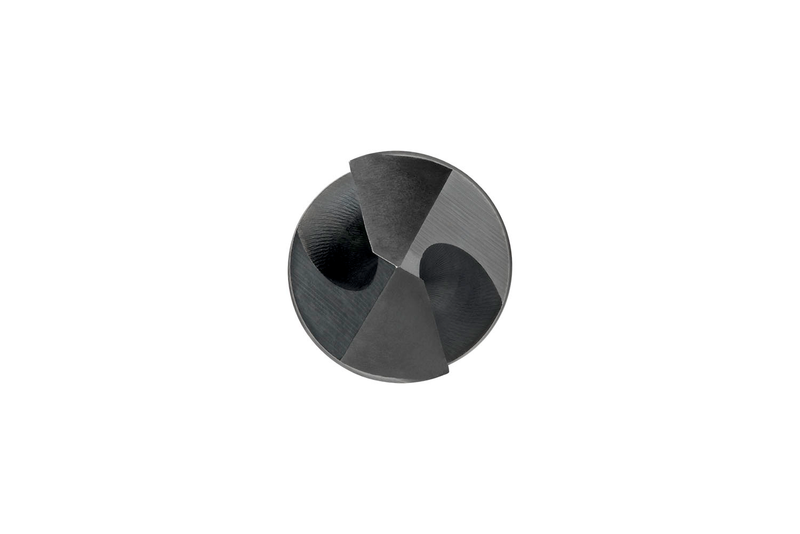

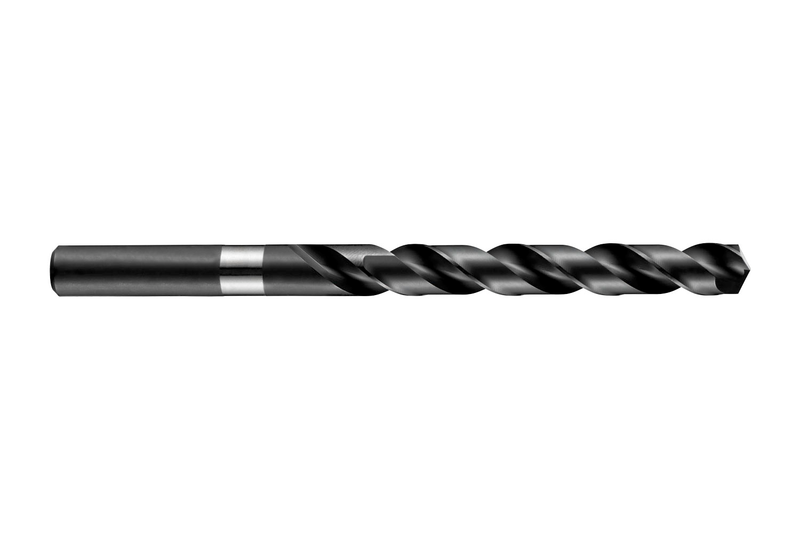

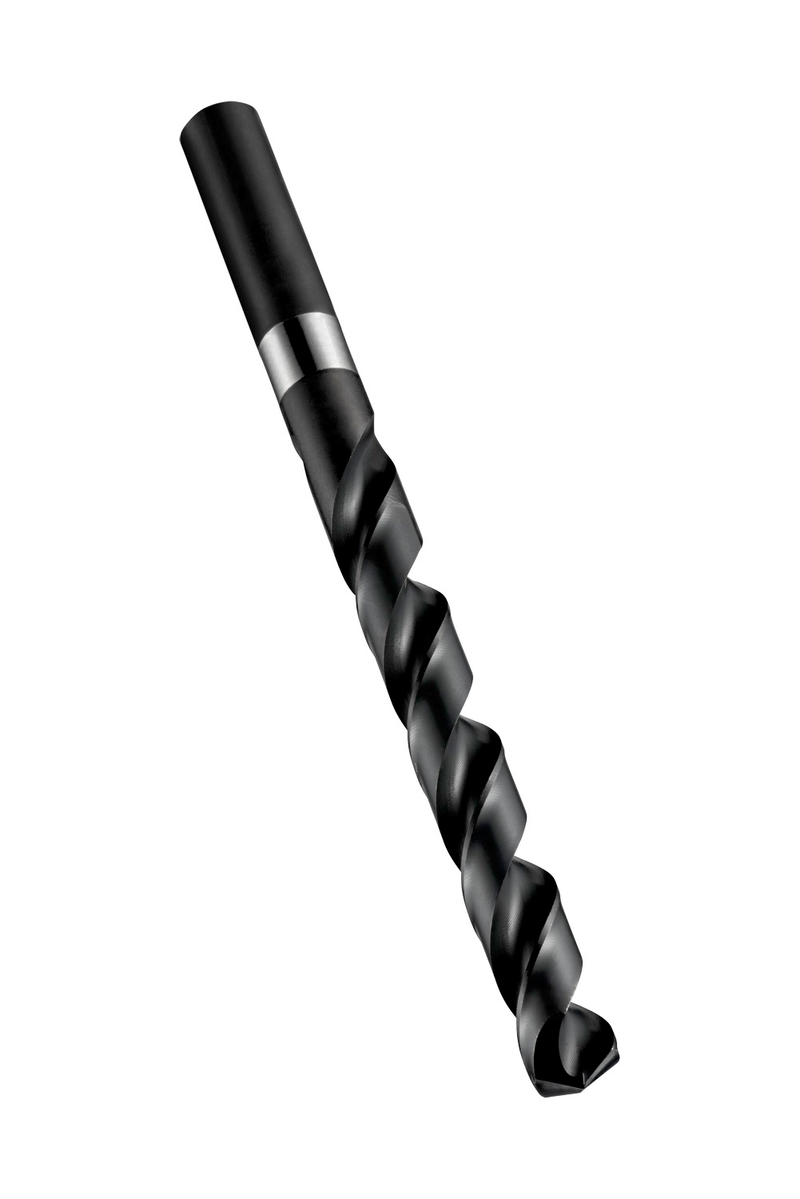

Foret hélicoïdal longueur normale, queue cylindrique, diamètre 6,9 mm avec une longueur totale de 109 mm et une longueur utile de 69 mm selon la norme DIN 338, pointe auto-centrante à 135°, en acier rapide HSS, finition noire vapeur, hélice rapide pour un perçage jusqu'à 4xD sans débourrage dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1086.9
GradeTrempé à la vapeur
Product Number5968421
Product FamilyA108

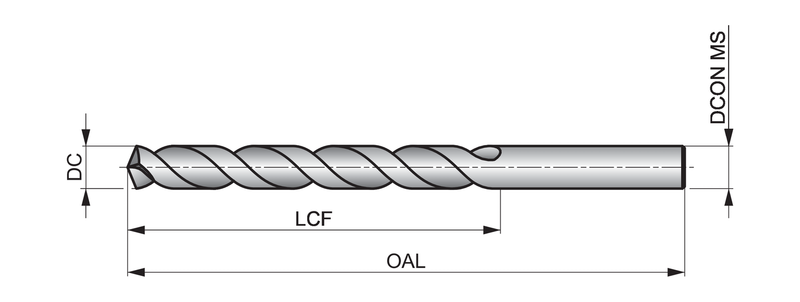

Dimensions
Cutting Diameter — in (DC)0.2717"
Cutting Diameter — mm (DC)6.9 mm
Overall Length — in (OAL)4.2913"
Overall Length — mm (OAL)109.0 mm
Flute Length — in (LCF)2.7165"
Flute Length — mm (LCF)69.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2717"
Connection Dia. — mm (DCON)6.9 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number8577
EAN7320760008577
File Type Download
A1086.9 — 3D Model STP Download
A1086.9 — Line Drawing PDF Download
