A1179.0
A1179.0
A1179.0
A1179.0

A1179.0

UGC DOR5968429
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.16 CAD - $30.16 CAD
$30.16 CAD
$30.16 CAD - $30.16 CAD
$30.16 CAD

Vendu en lots de : 10

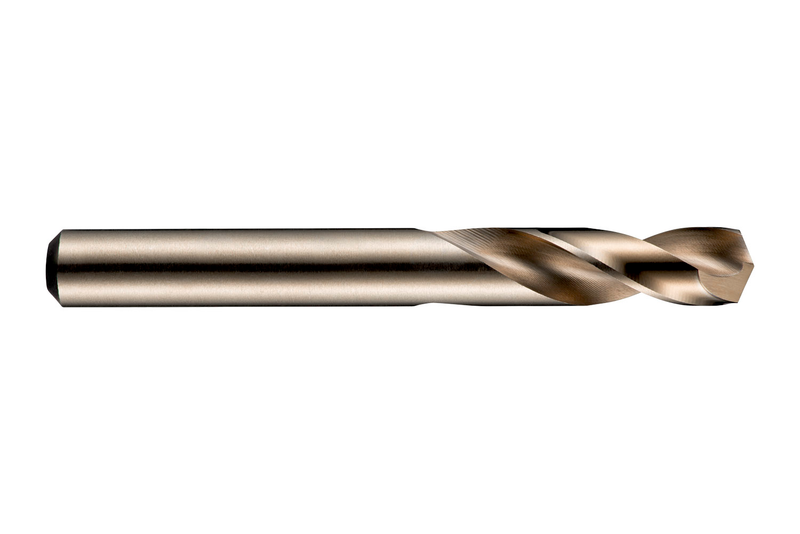

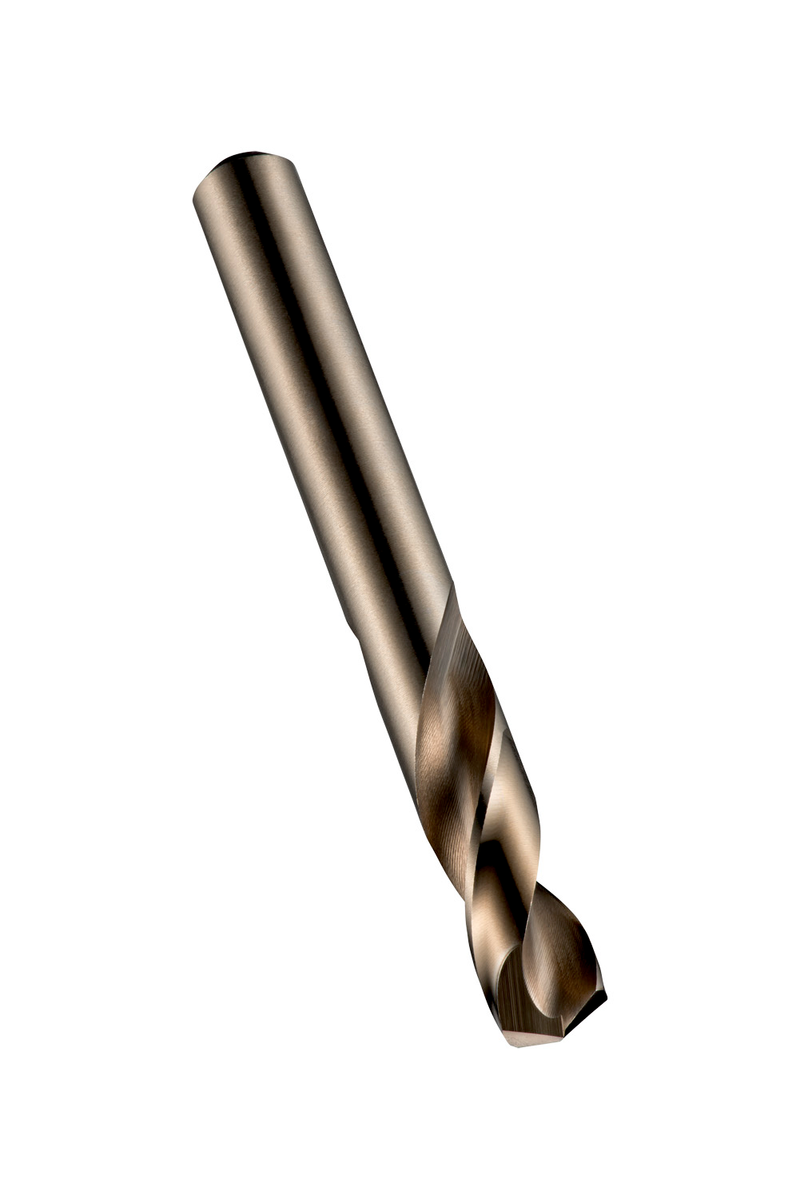

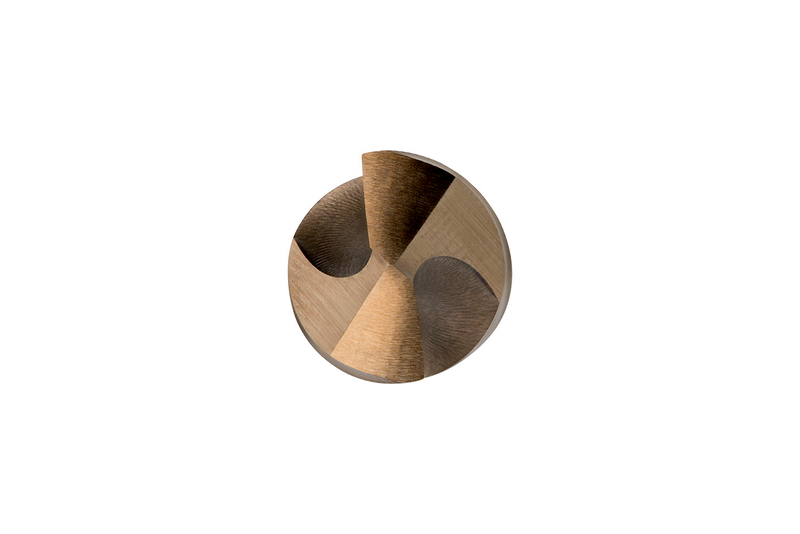

Foret court à queue cylindrique, diamètre 9 mm, longueur totale 84 mm et longueur utile 40 mm, selon la norme DIN 1897, avec pointe en croix 135°, HSS-E cobalté avec finition bronze pour un perçage 2,5xD sans débourrage dans l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1179.0
GradeBronze
Product Number5968429
Product FamilyA117
Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)3.3071"
Overall Length — mm (OAL)84.0 mm
Flute Length — in (LCF)1.5748"
Flute Length — mm (LCF)40.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number15926
EAN7320760015926
File Type Download
A1179.0 — 3D Model STP Download
A1179.0 — Line Drawing PDF Download
