A1083.4
A1083.4
A1083.4
A1083.4

A1083.4

UGC DOR5968430
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.13 CAD - $6.13 CAD
$6.13 CAD
$6.13 CAD - $6.13 CAD
$6.13 CAD

Vendu en lots de : 10

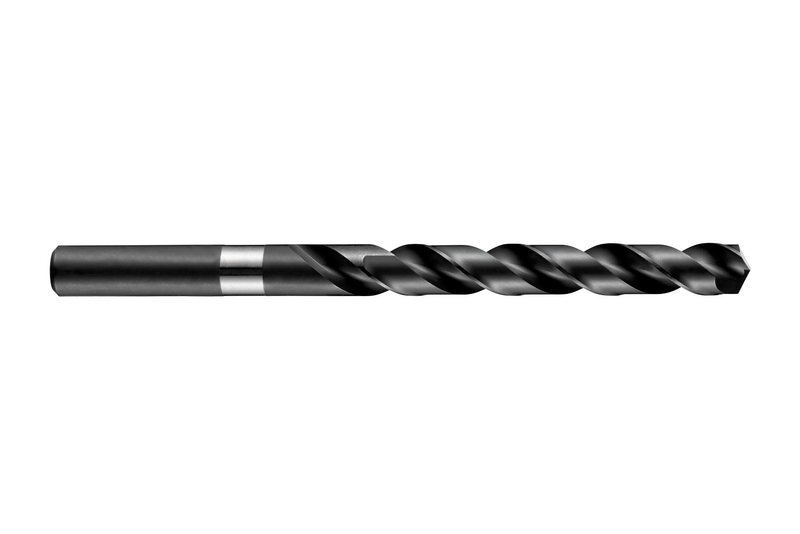

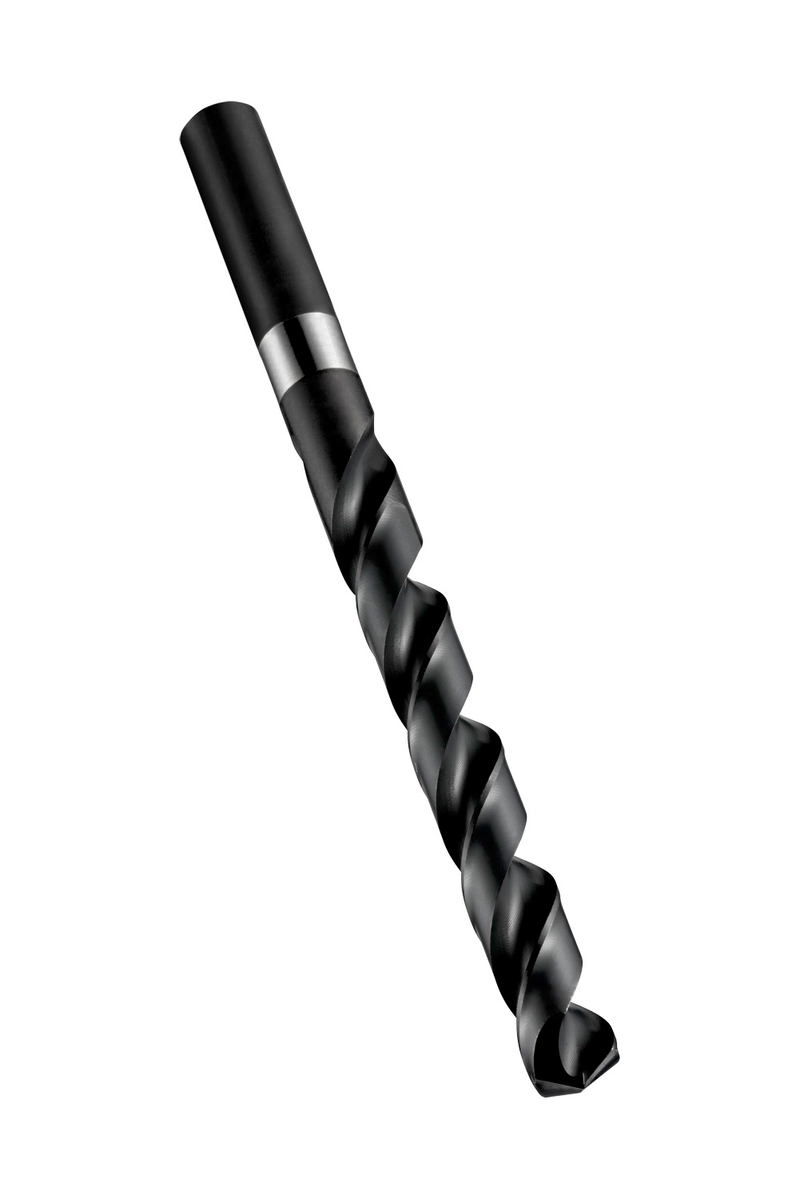

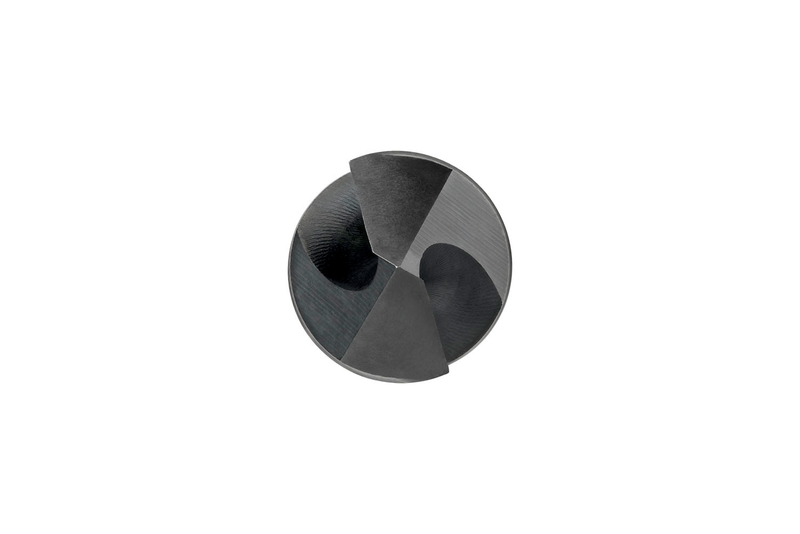

Foret hélicoïdal avec queue cylindrique, diamètre de 3,4 mm, longueur totale de 70 mm et longueur de coupe de 39 mm, selon la norme DIN 338, avec pointe autocentrante à 135°, en acier rapide (HSS) avec finition revenu vapeur et hélice rapide pour perçage de 4xD sans débourrage dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1083.4
GradeTrempé à la vapeur
Product Number5968430
Product FamilyA108
Dimensions
Cutting Diameter — in (DC)0.1339"
Cutting Diameter — mm (DC)3.4 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Flute Length — in (LCF)1.5354"
Flute Length — mm (LCF)39.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1339"
Connection Dia. — mm (DCON)3.4 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number8157
EAN7320760008157
File Type Download
A1083.4 — 3D Model STP Download
A1083.4 — Line Drawing PDF Download
