UGC DOR5968433
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.26 CAD - $4.26 CAD
$4.26 CAD
$4.26 CAD - $4.26 CAD
$4.26 CAD

Vendu en lots de : 10

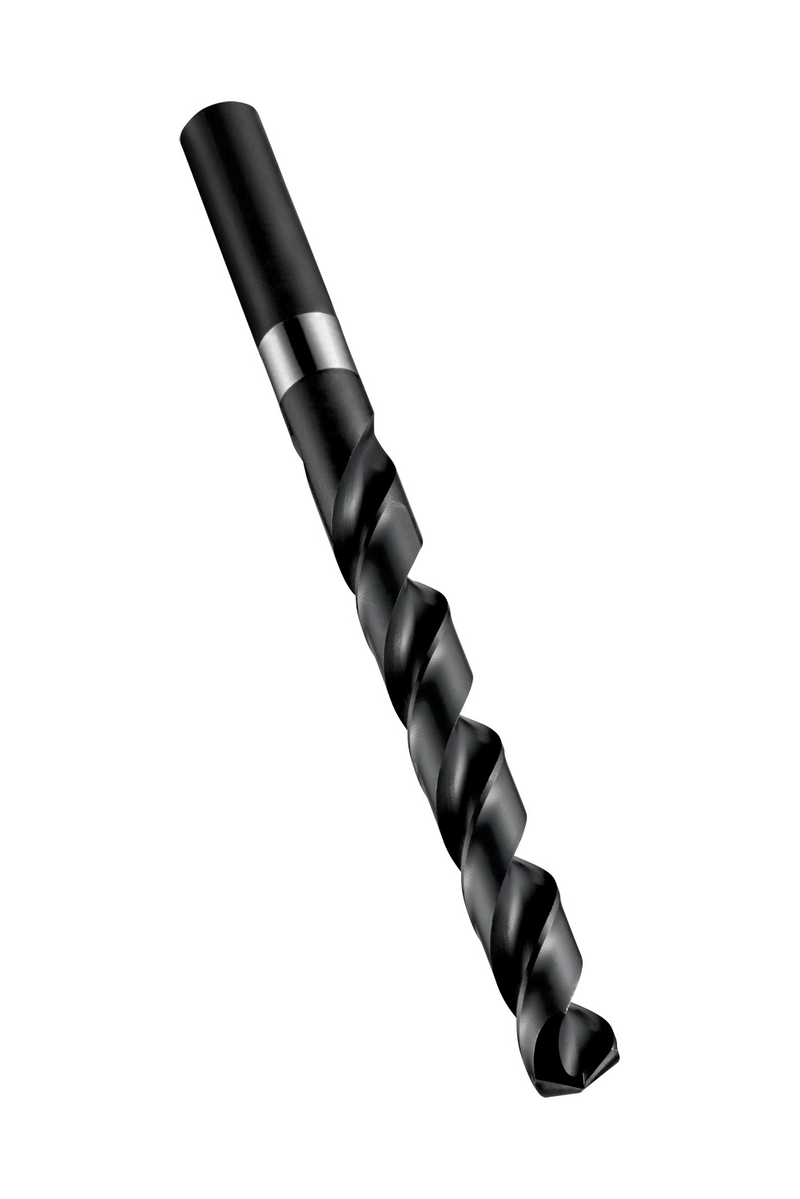

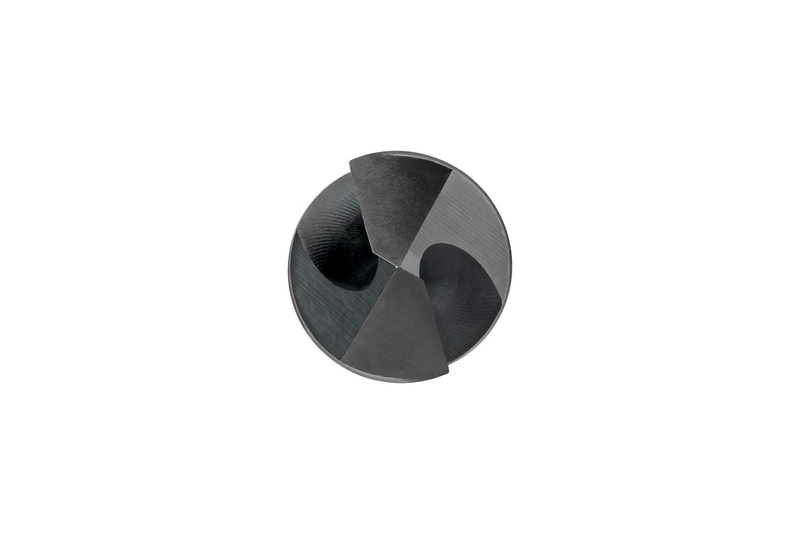

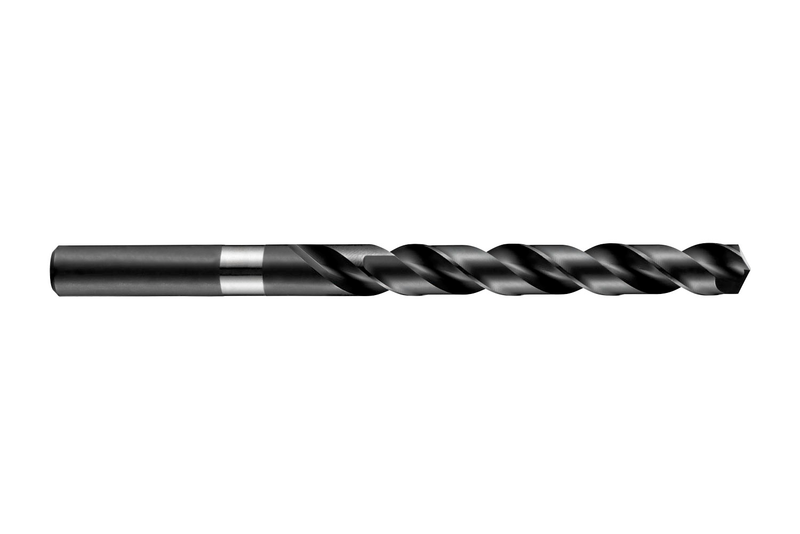

Foret queue cylindrique, diamètre 3,5mm, longueur totale de 70mm, longueur de coupe de 39mm selon la norme DIN 338, pointe auto-centrante à 135°, en acier rapide (HSS) finition trempée vapeur, hélice rapide pour perçage 4xD sans débourrage dans l'inox

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1083.5
GradeTrempé à la vapeur
Product Number5968433
Product FamilyA108
Dimensions
Cutting Diameter — in (DC)0.1378"
Cutting Diameter — mm (DC)3.5 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Flute Length — in (LCF)1.5354"
Flute Length — mm (LCF)39.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1378"
Connection Dia. — mm (DCON)3.5 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number8164
EAN7320760008164
File Type Download
A1083.5 — 3D Model STP Download
A1083.5 — Line Drawing PDF Download
