A1252.0X125
A1252.0X125
A1252.0X125
A1252.0X125

A1252.0X125

UGC DOR5968514
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.06 CAD - $14.06 CAD
$14.06 CAD
$14.06 CAD - $14.06 CAD
$14.06 CAD

Vendu en lots de : 1

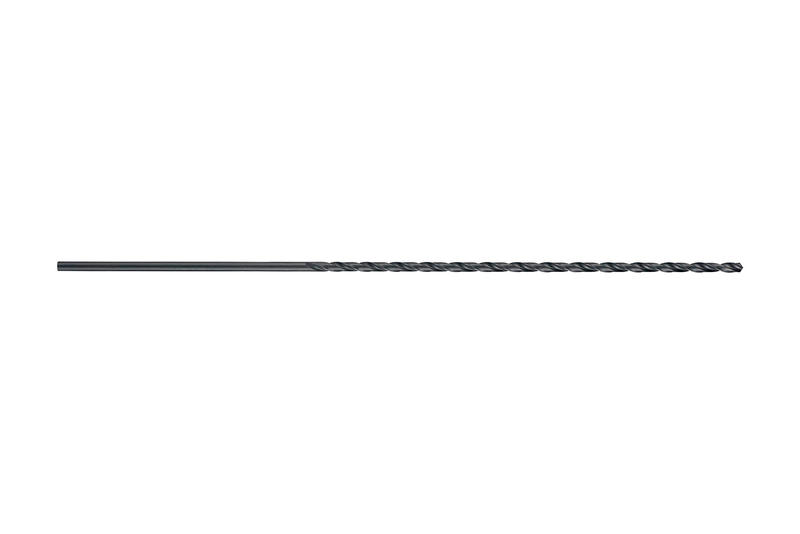

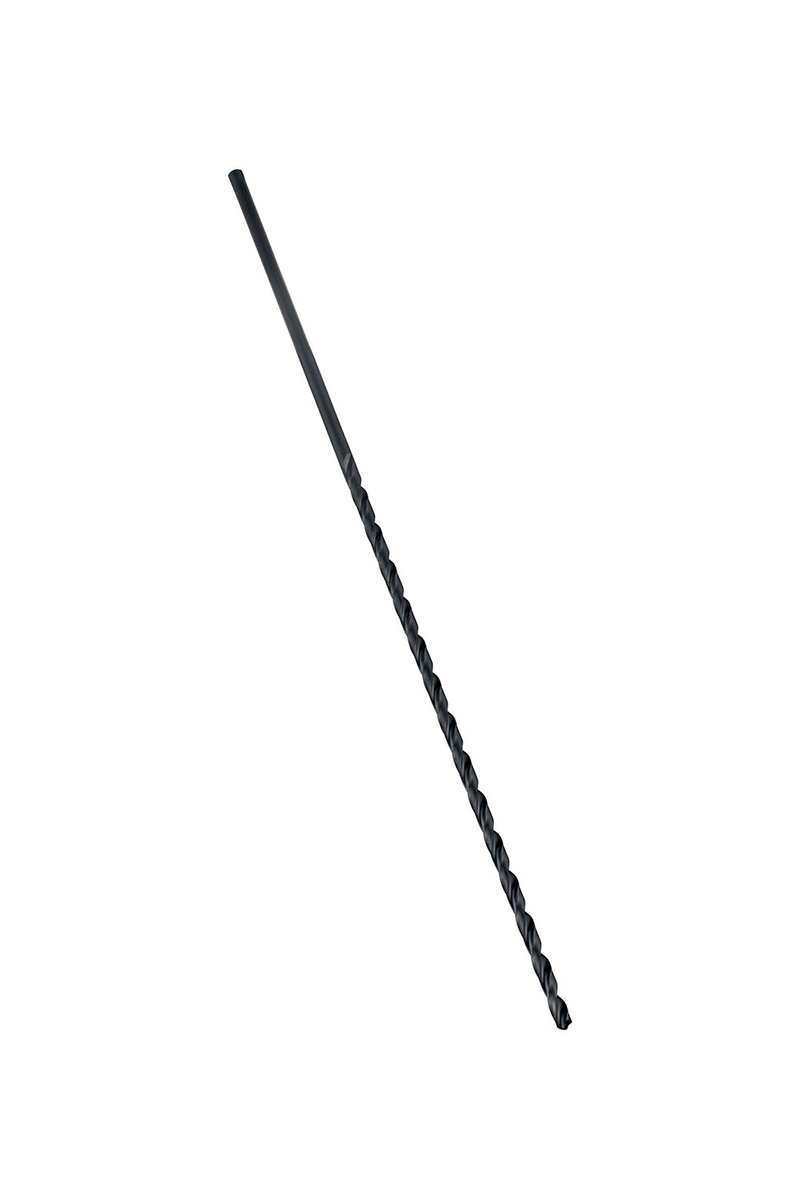

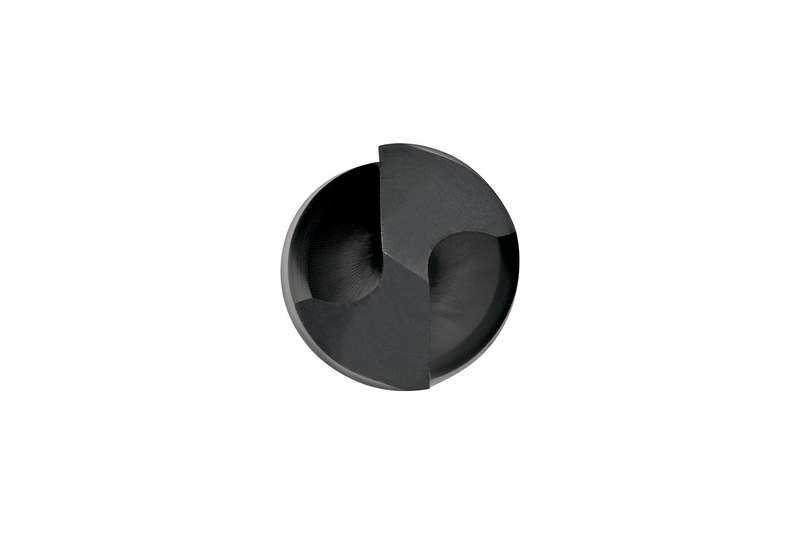

Foret extra-long à queue cylindrique, diamètre 2 mm, longueur totale 125 mm et longueur utile 80 mm selon la norme BS 328, avec pointe conique à 118°, en HSS poli pour le perçage de l'acier à 10xD sans débourrage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1252.0X125
GradeLumineux
Product Number5968514
Product FamilyA125
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Flute Length — in (LCF)3.1496"
Flute Length — mm (LCF)80.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.0787"
Connection Dia. — mm (DCON)2.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number20067
EAN7320760020067
File Type Download
A1252.0X125 — 3D Model STP Download
A1252.0X125 — Line Drawing PDF Download
